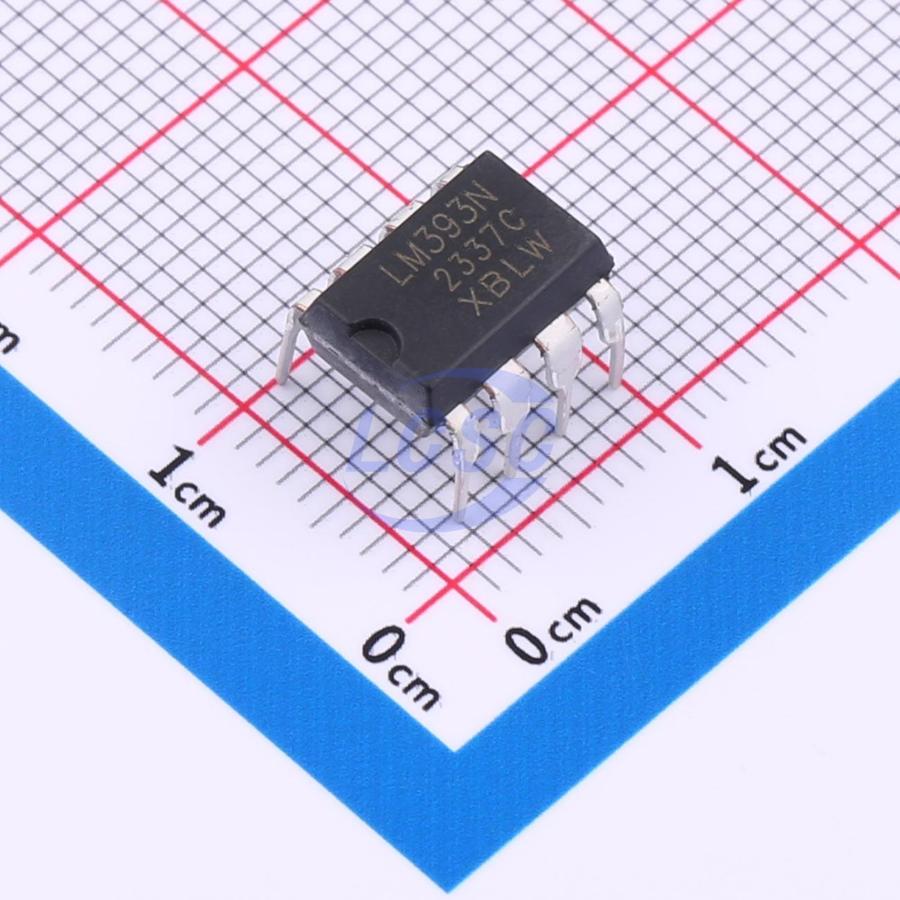

LM393N(XBLW)
1mV 25nA 2 DIP-8 Linear Comparators RoHS
Dual Comparators
- Manufacturer
- XBLW
- Manufacturer part #
- LM393N(XBLW)
- Store part #
- C19708139
- Package / case
- DIP-8
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C19708139
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.98 | ₹54.90 |
| 50+ | ₹8.73 | ₹436.50 |
| 150+ | ₹7.59 | ₹1,138.50 |
| 500+ | ₹6.75 | ₹3,375.00 |
| 2,000+ | ₹6.07 | ₹12,140.00 |
| 4,000+ | ₹5.74 | ₹22,960.00 |
5 × ₹10.98
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393N(XBLW)
₹54.90 for 5 + GST
Specifications
- Quiescent Current
- 400uA
- Output Mode
- TTL
- Propagation Delay Time
- 1.3us
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.719 g
Overview
The LM393 series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common- mode voltage range includes ground, even though operated from a single power supply voltage. It is mainly used in consumer and industrial electronic products. It is available in DIP- 8 or SOP- 8 package form.
Applications
- Vacuum robot
- Single phase UPS
- Server PSU
- Cordless power tool
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drives
- Infotainment & cluster
Key features
- Wide Supply Voltage Range
- Single Supplies: 2.0V to 36V
- Dual Supplies: ±1.0V to ±18V
- Very Low Supply Current Drain (0.8mA) — Independent Of Supply Voltage
- Low Input Biasing Current: 25 nA
- Low Input Offset Current: 5.0 nA
- Maximum Offset Voltage: 5.0 mV
- Input Differential Voltage Range Is Same With Supply Voltage Range
- Compatible With TTL, DTL, ECL, MOS and CMOS
