GREENMICRODatasheet (PDF)

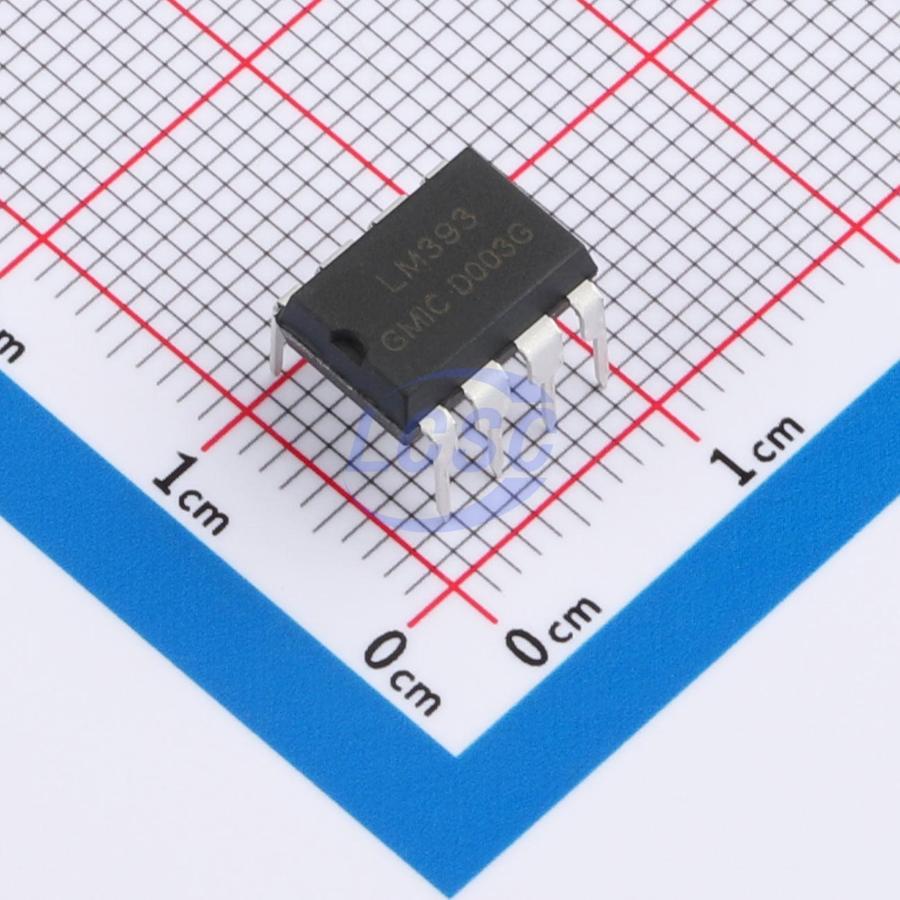

LM393PBD
1mV 25nA 2 DIP-8 Linear Comparators
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM393PBD
- Store part #
- C52204777
- Package / case
- DIP-8
- Category
- Linear Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,100 in stock
#C52204777
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.41 | ₹84.10 |
| 100+ | ₹6.68 | ₹668.00 |
| 300+ | ₹5.82 | ₹1,746.00 |
| 1,000+ | ₹5.17 | ₹5,170.00 |
| 4,000+ | ₹4.66 | ₹18,640.00 |
| 10,000+ | ₹4.39 | ₹43,900.00 |
10 × ₹8.41
₹84.10
excl. GST
₹99.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393PBD
₹84.10 for 10 + GST
Specifications
- Output Type
- Open Collector
- Quiescent Current
- 400uA
- Output Mode
- CMOS;MOS;TTL
- Propagation Delay Time
- 1.3us
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- -18V~-1V;1V~18V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.927 g
Overview
The LM393 consists of two independent, precision voltage comparators with an input offset voltage of 2.0mV maximum. The device operates from either a single or dual power supply, and its supply current is independent of the supply voltage magnitude. These comparators feature a unique characteristic: the input common-mode voltage range includes ground level, even when operating from a single supply.
Key features
- Wide supply voltage range: Single supply: 2.0V~36V; Dual supply: ±1.0V~±18V
- Low supply current: 0.8mA (typical), independent of supply voltage
- Low input bias current: 25nA (typical)
- Low input offset current: 5.0nA (typical)
- Low input offset voltage: 5.0mV (maximum)
- Input common-mode voltage range includes zero level
- Input differential voltage range equal to supply voltage range
- Output compatible with TTL, DTL, ECL, MOS, and CMOS logic levels
