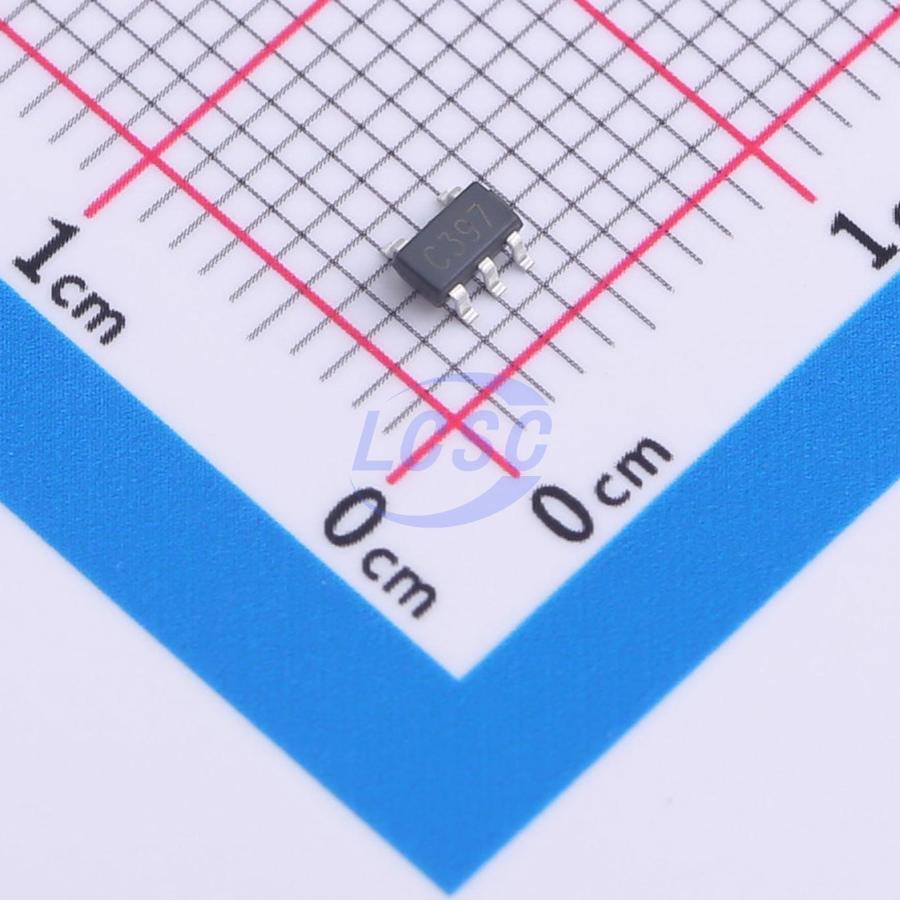

LM397DBVRG

The LM397 is a single voltage comparator with an input common-mode range that includes ground. The device is designed to operate from a single 5 V to 30 V supply or split supplies, with low supply current that is nearly independent of supply voltage. The LM397 features an open-collector output stage, allowing an external resistor to be connected at the output. By connecting the resistor to different voltage levels (level shifter), the output can interface directly with TTL, CMOS, and other logic levels. The LM397 is available in a space-saving 5-pin SOT-23 package and is pin-compatible with the single differential comparator TL331.

Applications

• A/D converters
• Pulse and square wave generators
• Peak detectors
• Industrial applications

Key features

• 5-pin SOT-23 package
• Industrial operating temperature range: -40°C to +85°C
• Single or dual supply operation
• Wide supply voltage range: 5 V to 30 V
• Low supply current: 300 µA
• Low input bias current: 7 nA
• Low input offset current: ±1 nA
• Low input offset voltage: ±2 mV
• Response time: 440 ns (with 50 mV overdrive)
• Input common-mode voltage range: 0 to VS - 1.5 V
