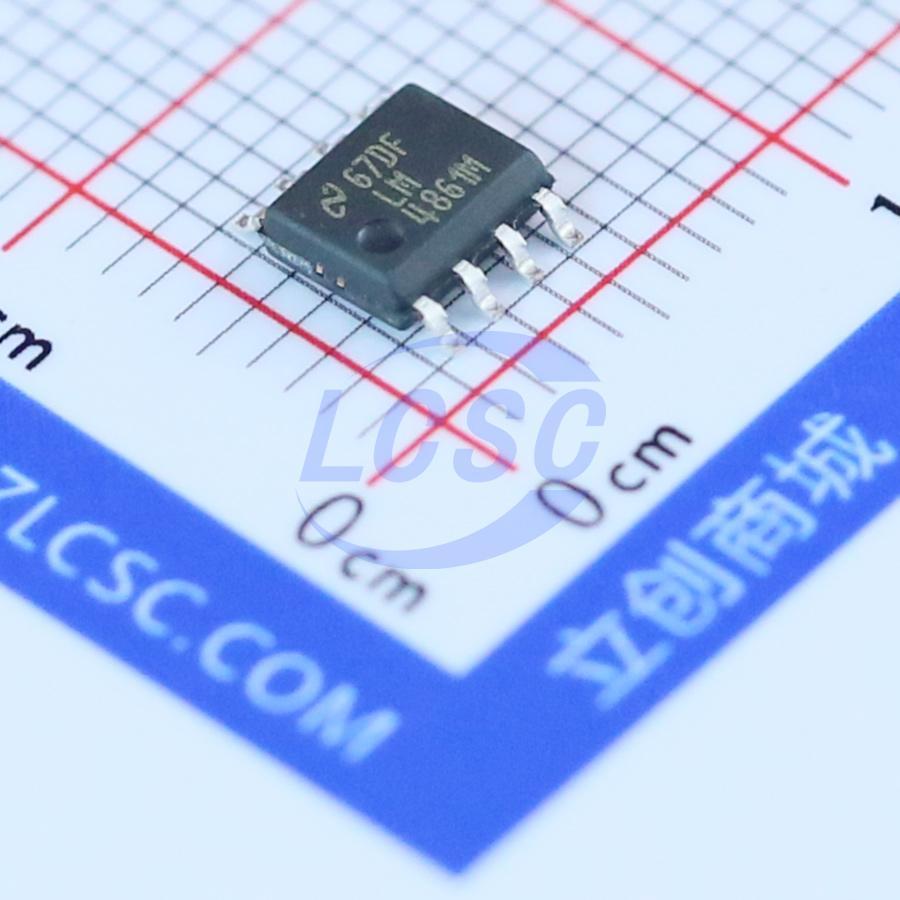

LM4861MX/NOPB
6.5mA 2V~5.5V 1-Channel 1.5Wx1@8Ω Class AB SOIC-8 Audio Amplifiers RoHS
1.1W Audio Power Amplifier with Shutdown Mode
- Manufacturer
- TI
- Manufacturer part #
- LM4861MX/NOPB
- Store part #
- C7958
- Package / case
- SOIC-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,075 in stock
#C7958
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.39 | ₹148.39 |
| 10+ | ₹122.54 | ₹1,225.40 |
| 30+ | ₹108.19 | ₹3,245.70 |
| 100+ | ₹92.12 | ₹9,212.00 |
| 500+ | ₹84.95 | ₹42,475.00 |
| 1,000+ | ₹81.70 | ₹81,700.00 |
1 × ₹148.39
₹148.39
excl. GST
₹175.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM4861MX/NOPB
₹148.39 for 1 + GST
Specifications
- Quiescent Current
- 6.5mA
- Voltage - Supply
- 2V~5.5V
- Features
- Enable/shutdown function;ESD protection
- Total Harmonic Distortion + Noise (THD+N)
- 0.72%
- Operating Temperature
- -40℃~+85℃
- Speaker Channels
- 1-Channel
- Output Power
- 1.5Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 65dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LM4861 is a bridge-connected audio power amplifier capable of delivering 1.1W of continuous average power to an 8Ω load with 1% THD+N using a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4861 does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is optimally suited for low-power portable systems. The LM4861 features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism. The unity-gain stable LM4861 can be configured by external gain-setting resistors for differential gains of up to 10 without the use of external compensation components. Higher gains may be achieved with suitable compensation.
Applications
- Personal computers
- Portable consumer products
- Self-powered speakers
- Toys and games
Key features
- No output coupling capacitors, bootstrap capacitors, or snubber circuits are necessary
- Small Outline (SOIC) packaging
- Compatible with PC power supplies
- Thermal shutdown protection circuitry
- Unity-gain stable
- External gain configuration capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4861M/TR#C383073HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 1,925 | ₹23.68 · 1,925 in stock | View |
 | MS8002D#C42403122MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 3,530 | ₹7.59 · 3,530 in stock | View |
 | MS8002A#C49208384MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 7,150 | ₹7.13 · 7,150 in stock | View |
 | MS8002B#C49208385MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 850 | ₹6.52 · 850 in stock | View |
 | LM4861DRG#C5145280HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,435 | ₹22.25 · 2,435 in stock | View |
