HGSEMI

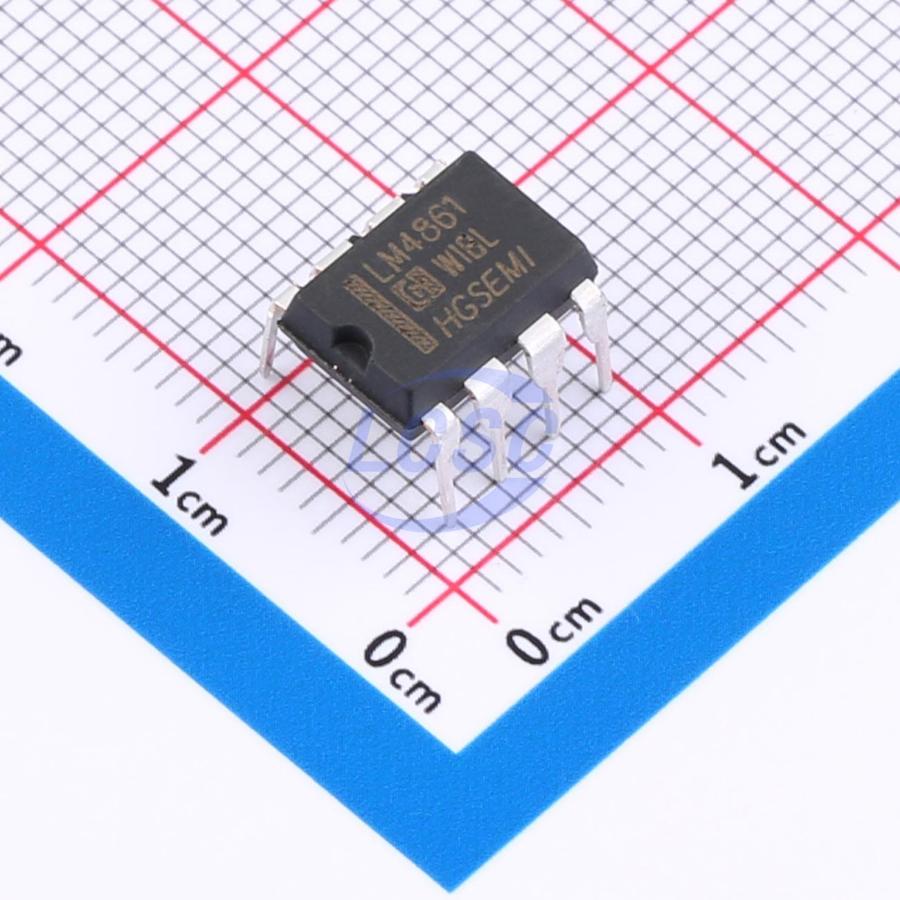

LM4861N/HG

6.5mA 2.5V~5.5V 1-Channel 1.1W×1@8Ω DIP-8 Audio Amplifiers

DIP-8RoHSActive

1.1W Audio Power Amplifier with Shutdown Mode

Manufacturer: HGSEMI
Manufacturer part #: LM4861N/HG
Store part #: C47411556
Package / case: DIP-8
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,870 in stock

#C47411556

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.42	₹107.10
50+	₹18.71	₹935.50
150+	₹17.54	₹2,631.00
500+	₹16.09	₹8,045.00
2,000+	₹15.44	₹30,880.00
4,000+	₹15.06	₹60,240.00

Quantity (min 5, multiples of 5)

5 × ₹21.42

₹107.10

excl. GST

₹126.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

LM4861N/HG

₹107.10 for 5 + GST

Specifications

Quiescent Current: 6.5mA
Voltage - Supply: 2.5V~5.5V
Features: Enable/shutdown function;Analog voltage gain;ESD protection
Total Harmonic Distortion + Noise (THD+N): 0.72%
Operating Temperature: -40℃~+85℃
Speaker Channels: 1-Channel
Output Power: 1.1W×1@8Ω
Power Supply Rejection Ratio (PSRR): 65dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.823 g

Overview

The LM4861 is a bridged audio power amplifier capable of delivering 1.1W of continuous average power into an 8Ω load at 5V supply voltage, with 1% THD+N. Boomer audio power amplifiers are designed for use in surface-mount packages, delivering high-quality output power with minimal external components. Since the LM4861 requires no output coupling capacitors, bootstrap capacitors, or snubber networks, it is ideally suited for low-power portable systems. The device features an externally controlled low-power shutdown mode and an internal thermal shutdown protection mechanism. Unity-gain stable, the LM4861 can be configured for differential gains up to 10 via external gain-setting resistors, without requiring external compensation components. Higher gains can be achieved with appropriate compensation.

Applications

Personal computers
Portable consumer electronics
Self-powered speakers
Toys and games

Key features

No output coupling capacitors, bootstrap capacitors, or snubber circuits required
Small outline package
Compatible with PC power supplies
Thermal shutdown protection circuit
Unity-gain stable
External gain configuration supported
