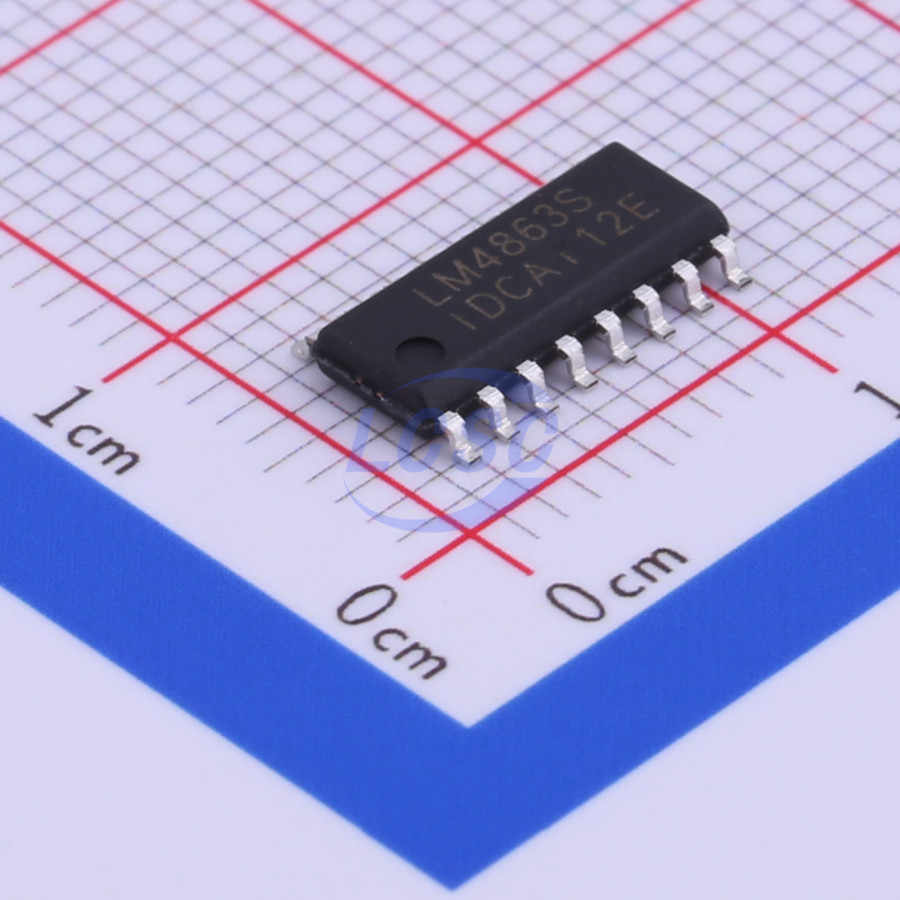

LM4863
33mA 2.2V~5.5V 2-Channel 2.5Wx2@3Ω SOP-16 Audio Amplifiers RoHS
3W dual-channel stereo audio power amplifier
- Manufacturer
- IDCHIP
- Manufacturer part #
- LM4863
- Store part #
- C329460
- Package / case
- SOP-16
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,365 in stock
#C329460
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.59 | ₹127.95 |
| 50+ | ₹20.11 | ₹1,005.50 |
| 150+ | ₹17.77 | ₹2,665.50 |
| 500+ | ₹14.84 | ₹7,420.00 |
| 3,000+ | ₹13.28 | ₹39,840.00 |
| 6,000+ | ₹12.50 | ₹75,000.00 |
5 × ₹25.59
₹127.95
excl. GST
₹150.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4863
₹127.95 for 5 + GST
Specifications
- Quiescent Current
- 33mA
- Voltage - Supply
- 2.2V~5.5V
- Features
- Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.3%
- Signal-to-Noise Ratio
- 98dB
- Speaker Channels
- 2-Channel
- Output Power
- 2.5Wx2@3Ω
- Power Supply Rejection Ratio (PSRR)
- 67dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
The LM4863 is a dual audio power amplifier capable of delivering a maximum average output power of 3W with THD less than 10% into a 4Ω load at a 5V supply voltage. Additionally, a headphone input pin allows the amplifier to operate in single-ended mode when driving stereo headphones. The LM4863 is specifically designed to provide high-fidelity audio output with minimal external components. To simplify audio system design, the LM4863 integrates dual bridge speaker amplifiers and a stereo headphone amplifier in a single device. The LM4863 also features an externally controlled shutdown mode, stereo headphone amplifier mode, thermal shutdown protection, and a power-on pop reduction function.
Applications
- Laptop
- Desktop computer
- Multimedia monitor
- Portable video system
Key features
- Stereo headphone amplifier mode
- Pop noise suppression system
- Stable gain
- Thermal shutdown protection mode
- Standby current 33mA
- Power-down mode current 190uA
- Wide operating voltage range 2.2V - 5.5V
- Single-ended mode, 32Ω load, 75mW average output power, max THD 0.5%
