HANSCHIP semiconductor

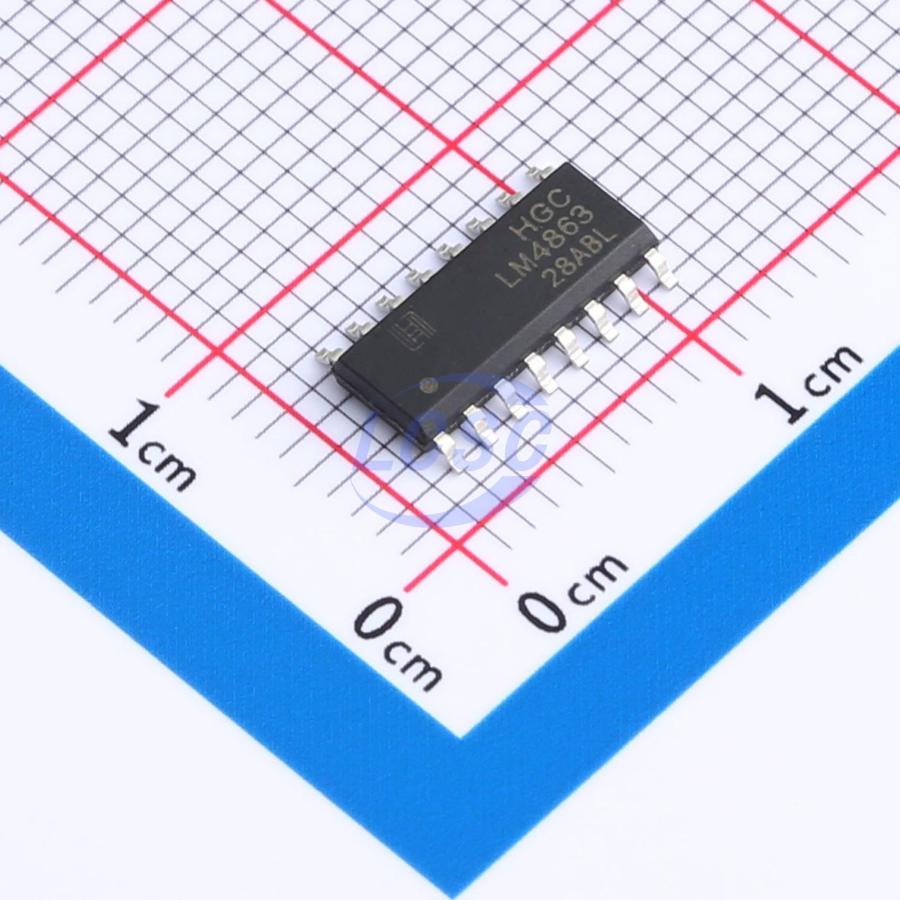

LM4863DRG

11.5mA 2V~5.5V 2-Channel SOP-16 Audio Amplifiers RoHS

SOP-16ROHS CompliantActive

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM4863DRG
Store part #: C5145279
Package / case: SOP-16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,370 in stock

#C5145279

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.98	₹99.90
50+	₹17.41	₹870.50
150+	₹16.33	₹2,449.50
500+	₹14.95	₹7,475.00
2,500+	₹13.61	₹34,025.00
5,000+	₹13.26	₹66,300.00

Quantity (min 5, multiples of 5)

5 × ₹19.98

₹99.90

excl. GST

₹117.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM4863DRG

₹99.90 for 5 + GST

Specifications

Quiescent Current: 11.5mA
Voltage - Supply: 2V~5.5V
Features: Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.3%
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 98dB
Speaker Channels: 2-Channel
Power Supply Rejection Ratio (PSRR): 67dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.3 g

Overview

The LM4863 is a dual bridged audio power amplifier. At a 5V supply voltage, the device can deliver 2.2W output power into a 4Ω load or 2.5W output power into a 3Ω load, while maintaining THD+N below 1.0%. Additionally, when driving stereo headphones, the headphone input allows the amplifier to operate in single-ended mode. This amplifier family utilizes SMT, requires minimal external components, and delivers high-quality output power. The LM4863 integrates dual bridge speaker amplifiers and a stereo headphone amplifier, simplifying audio system design. Key features include external control, low-power shutdown mode, stereo headphone amplification mode, internal thermal protection, and integrated circuitry to suppress power-on surge pulses.
