lingxingic

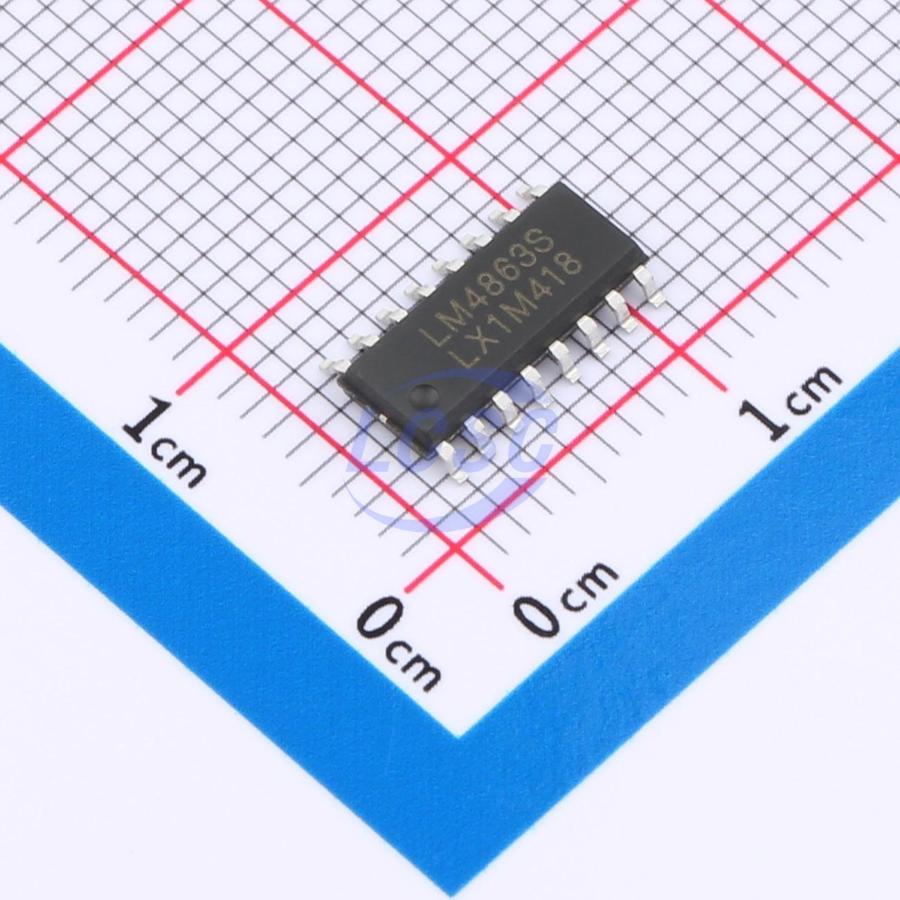

LM4863S(LX)

11.5mA 2V~5.5V 2-Channel SOP-16 Audio Amplifiers

SOP-16RoHSActive

Dual 2.2W audio power amplifier LM4863 with stereo headphone function

Manufacturer: lingxingic
Manufacturer part #: LM4863S(LX)
Store part #: C22449642
Package / case: SOP-16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,695 in stock

#C22449642

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹24.71	₹123.55
50+	₹21.58	₹1,079.00
150+	₹20.24	₹3,036.00
500+	₹18.56	₹9,280.00
2,500+	₹17.82	₹44,550.00
5,000+	₹17.37	₹86,850.00

Quantity (min 5, multiples of 5)

5 × ₹24.71

₹123.55

excl. GST

₹145.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM4863S(LX)

₹123.55 for 5 + GST

Specifications

Quiescent Current: 11.5mA
Voltage - Supply: 2V~5.5V
Features: Enable/shutdown function;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.3%
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 98dB
Speaker Channels: 2-Channel
Power Supply Rejection Ratio (PSRR): 67dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.286 g

Overview

The LM4863 is a dual bridged audio power amplifier. At a 5V supply voltage, with THD+N kept below 1%, it delivers 2.2W of output power into a 4Ω load or 2.5W into a 3Ω load. Additionally, when driving stereo headphones, the headphone input allows the amplifier to operate in single-ended mode. This series of audio power amplifiers features SMT packaging and requires minimal external components to achieve high-quality output power. For straightforward audio system designs, the LM4863 integrates dual-bridge speaker amplification and stereo headphone amplification on a single chip.
