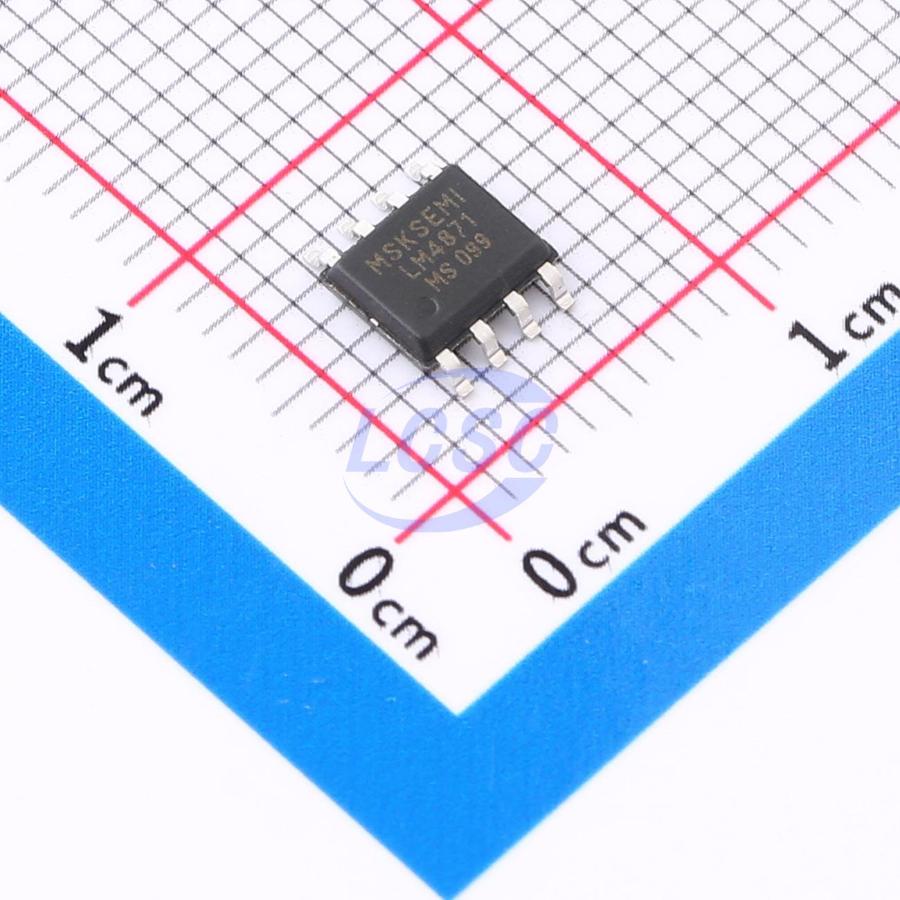

LM4871-MS
5mA 2.5V~5.5V 1-Channel Class AB SOP-8 Audio Amplifiers RoHS
Single-channel Class AB differential-input audio power amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM4871-MS
- Store part #
- C45360150
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C45360150
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.04 | ₹80.40 |
| 100+ | ₹6.38 | ₹638.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 1,000+ | ₹4.92 | ₹4,920.00 |
| 4,000+ | ₹4.42 | ₹17,680.00 |
| 8,000+ | ₹4.17 | ₹33,360.00 |
10 × ₹8.04
₹80.40
excl. GST
₹94.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM4871-MS
₹80.40 for 10 + GST
Specifications
- Quiescent Current
- 5mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.3%
- Number of Inputs
- 1 Pair Differential Inputs
- Signal-to-Noise Ratio
- 89dB
- Speaker Channels
- 1-Channel
- Output Power
- 2.8W×1@3Ω;2.6W×1@4Ω;1.6W×1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 57dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.156 g
Overview
The LM4871-MS is a single-channel Class AB differential-input audio power amplifier capable of delivering 2.8W output power at a 5.0V supply, 10% THD+N, and 3Ω load. Its differential input architecture provides enhanced noise rejection. The application circuit is straightforward, requiring minimal external components to achieve high-quality, low-distortion audio output. The device features a shutdown function for significantly extended system standby time, built-in thermal protection for improved system reliability, and power-on POP suppression for a better listening experience and simplified system debugging. Available in an SOP8 package.
Applications
- FM player
- Network camera
- Toys and game consoles
- Card speaker / USB speaker / Bluetooth speaker
Key features
- Output Power: -1.6W (VDD = 5.0V, RL = 8Ω, THD + N = 10%)
- Output Power: -2.6W (VDD = 5.0V, RL = 4Ω, THD + N = 10%)
- Output Power: -2.8W (VDD = 5.0V, RL = 3Ω, THD + N = 10%)
- Operating Voltage Range: 2.5V to 5.5V
- Low Distortion and Low Noise
- Power-On POP Suppression
- Thermal Shutdown Protection
