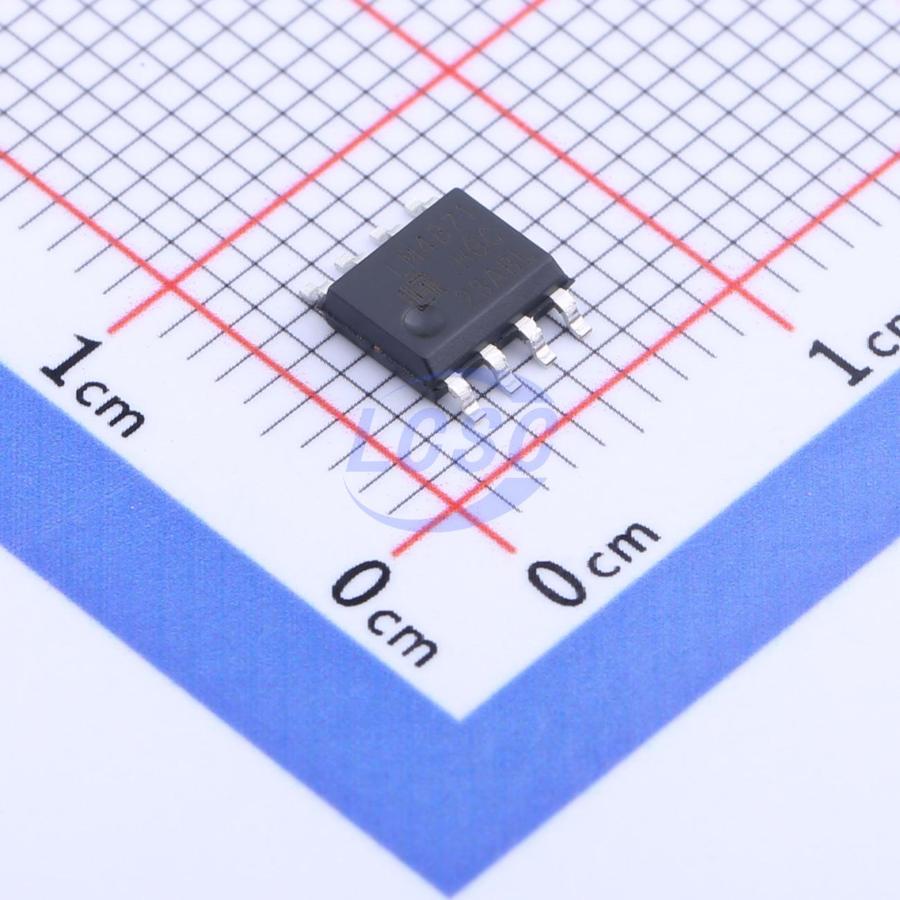

LM4871DRG
2mA 2.5V~5.5V 1-Channel Class AB SOP-8 Audio Amplifiers RoHS
3W mono Class AB audio power amplifier
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM4871DRG
- Store part #
- C2977084
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,720 in stock
#C2977084
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.08 | ₹95.40 |
| 50+ | ₹15.43 | ₹771.50 |
| 150+ | ₹13.61 | ₹2,041.50 |
| 500+ | ₹12.24 | ₹6,120.00 |
| 2,500+ | ₹9.96 | ₹24,900.00 |
| 5,000+ | ₹9.41 | ₹47,050.00 |
5 × ₹19.08
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM4871DRG
₹95.40 for 5 + GST
Specifications
- Quiescent Current
- 2mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Automatic mute/no-noise switch;Enable/shutdown function
- Total Harmonic Distortion + Noise (THD+N)
- 0.23%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 98dB
- Speaker Channels
- 1-Channel
- Output Power
- 2.9W×1@4Ω;1.8W×1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 80dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The LM4871 is a monophonic bridge-tied load audio power amplifier. Powered by a 5V supply, it delivers 3W of continuous average power into a 3Ω load with THD+N below 10%. To conserve power in portable devices, the shutdown pin can be driven high to place the device into a low-power shutdown mode with a typical quiescent current of only 0.6μA. This amplifier is designed to deliver high-power, high-fidelity audio output over a supply voltage range of 2.0V to 5.0V, requiring minimal external components. The elimination of output coupling capacitors, bootstrap capacitors, and impedance matching networks makes it ideal for low-power portable systems. In addition, the LM4871 features thermal shutdown protection, unity-gain stability, and externally configurable gain.
Applications
- Bluetooth speakers
- Portable computers
- Radio systems
Key features
- No output coupling capacitors, bootstrap capacitors, or output impedance equalization network required
- Unity-gain stable, externally configurable gain
- Pin-compatible with LM4861
- Available in SOP-8 and MSOP-8 packages
