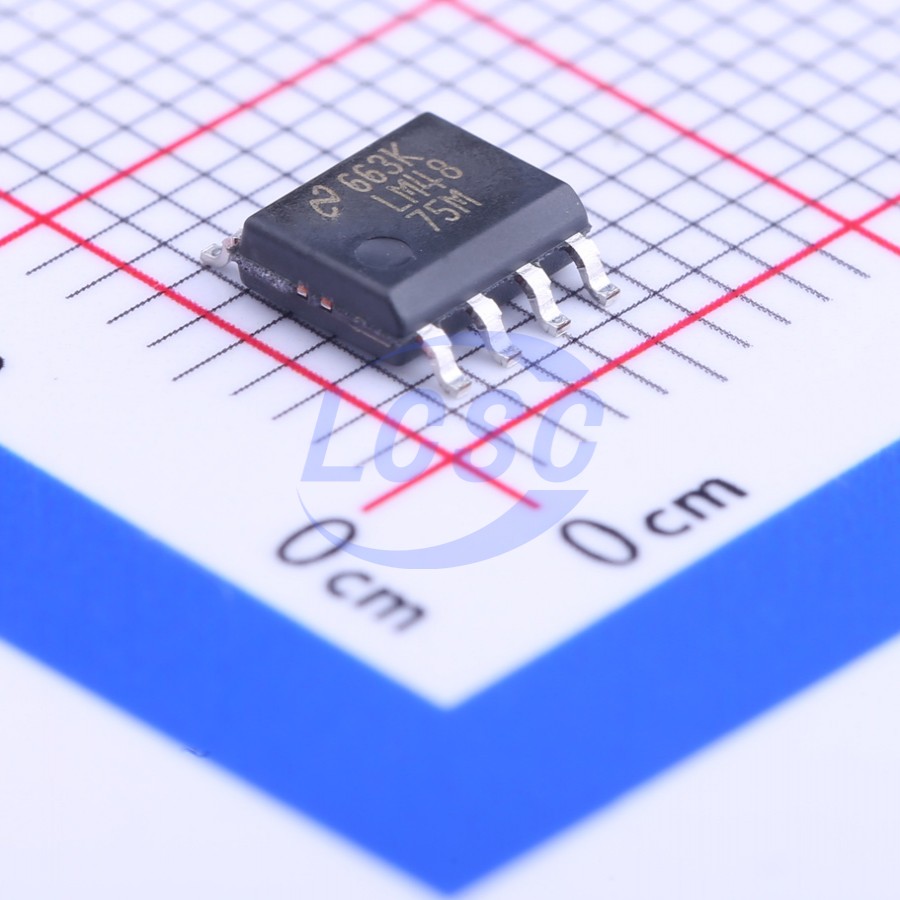

LM4875MX/NOPB
4mA 2.7V~5.5V 1-Channel 1Wx1@8Ω Class AB SOIC-8 Audio Amplifiers RoHS
Audio Power Amplifier with DC Volume Control and Headphone Switch
- Manufacturer
- TI
- Manufacturer part #
- LM4875MX/NOPB
- Store part #
- C134135
- Package / case
- SOIC-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,083 in stock
#C134135
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.37 | ₹140.37 |
| 10+ | ₹116.04 | ₹1,160.40 |
| 30+ | ₹102.56 | ₹3,076.80 |
| 100+ | ₹83.65 | ₹8,365.00 |
| 500+ | ₹76.92 | ₹38,460.00 |
| 1,000+ | ₹73.88 | ₹73,880.00 |
1 × ₹140.37
₹140.37
excl. GST
₹165.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM4875MX/NOPB
₹140.37 for 1 + GST
Specifications
- Quiescent Current
- 4mA
- Voltage - Supply
- 2.7V~5.5V
- Features
- Analog voltage gain;Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.6%
- Operating Temperature
- -40℃~+85℃
- Speaker Channels
- 1-Channel
- Output Power
- 1Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 50dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LM4875 is a mono bridged audio power amplifier with DC voltage volume control. The LM4875 is capable of delivering 750mW of continuous average power into an 8Ω load with less than 1% THD when powered by a 5V power supply. Switching between bridged speaker mode and headphone (single ended) mode is accomplished using the headphone sense pin. To conserve power in portable applications, the LM4875's micropower shutdown mode (IQ = 0.7μA, typ) is activated when less than 300mV is applied to the DC Vol/SD pin. Boomer audio power amplifiers are designed specifically to provide high power audio output while maintaining high fidelity. They require few external components and operate on low supply voltages.
Applications
- GSM Phones and Accessories
- DECT
- Office Phones
- Hand Held Radio
- Other Portable Audio Devices
Key features
- Precision DC Voltage Volume Control
- Headphone Amplifier Mode
- “Click and Pop” Suppression
- Shutdown Control When Volume Control Pin Is Low
- Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4875M/NOPB#C205949TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote |
