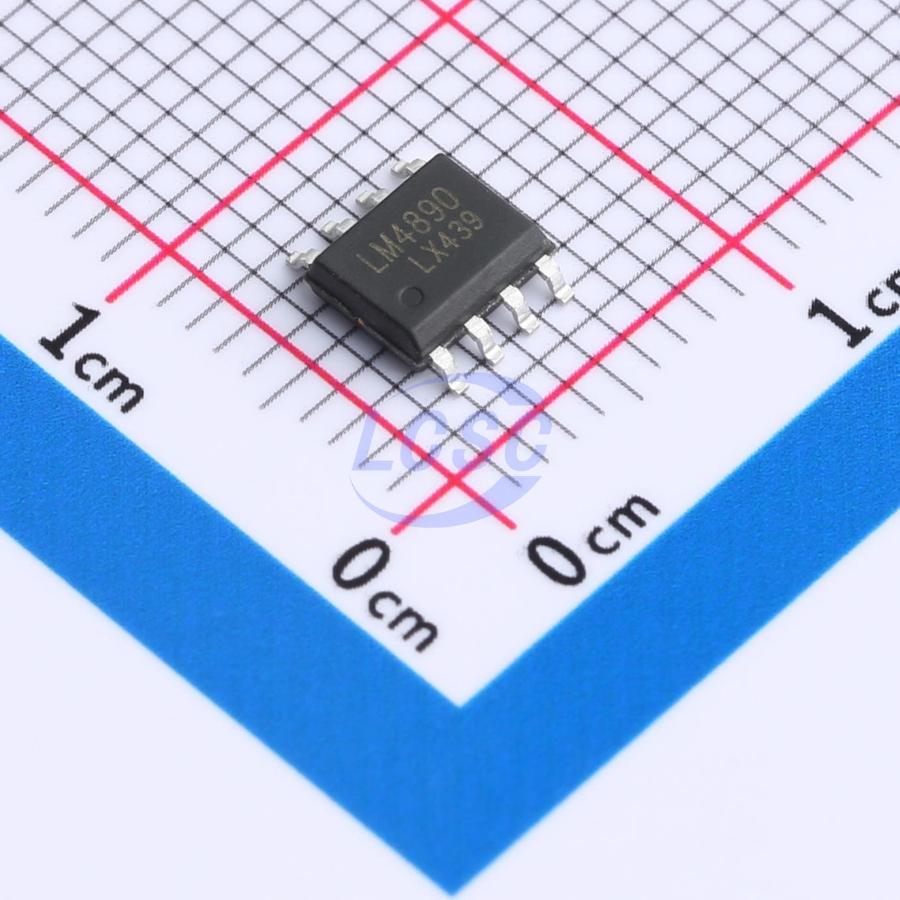

lingxingic

LM4890M(LX)

5mA 2V~5.5V 1-Channel 2W×1@4Ω Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

2W audio power amplifier with shutdown mode

Manufacturer: lingxingic
Manufacturer part #: LM4890M(LX)
Store part #: C42370038
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,870 in stock

#C42370038

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.68	₹96.80
100+	₹7.75	₹775.00
300+	₹6.80	₹2,040.00
1,000+	₹6.07	₹6,070.00
4,000+	₹5.45	₹21,800.00
8,000+	₹5.17	₹41,360.00

Quantity (min 10, multiples of 10)

10 × ₹9.68

₹96.80

excl. GST

₹114.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM4890M(LX)

₹96.80 for 10 + GST

Specifications

Quiescent Current: 5mA
Voltage - Supply: 2V~5.5V
Features: Enable/shutdown function
Total Harmonic Distortion + Noise (THD+N): 0.25%
Operating Temperature: -40℃~+85℃
Speaker Channels: 1-Channel
Output Power: 2W×1@4Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 60dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.158 g

Overview

P is a mono bridged audio power amplifier that delivers 2W of continuous average power into a 4Ω load at 5V supply voltage with less than 10% THD. To reduce power consumption in portable devices, pulling the SHUTDOWN pin low puts the device into a micropower shutdown mode (IQ = 0.6μA typical). This audio power amplifier is specially designed for high-power, high-fidelity audio output. It operates from a supply voltage of 2.0V to 5.5V, supporting low-voltage operation. Since no output coupling capacitors, bootstrap capacitors, or impedance matching networks are required, only a minimal number of external components are needed, making it an ideal choice for low-power portable systems. Additional features include thermal shutdown protection, unity-gain stability, and externally configurable gain.

Applications

Portable computers
Desktop computers
Low-voltage audio systems

Key features

No output coupling capacitors, bootstrap capacitors, or output impedance equalization network required
Unity-gain stable
Externally set gain
Package: DIP8/SOP8/MSOP8/ESOP8
