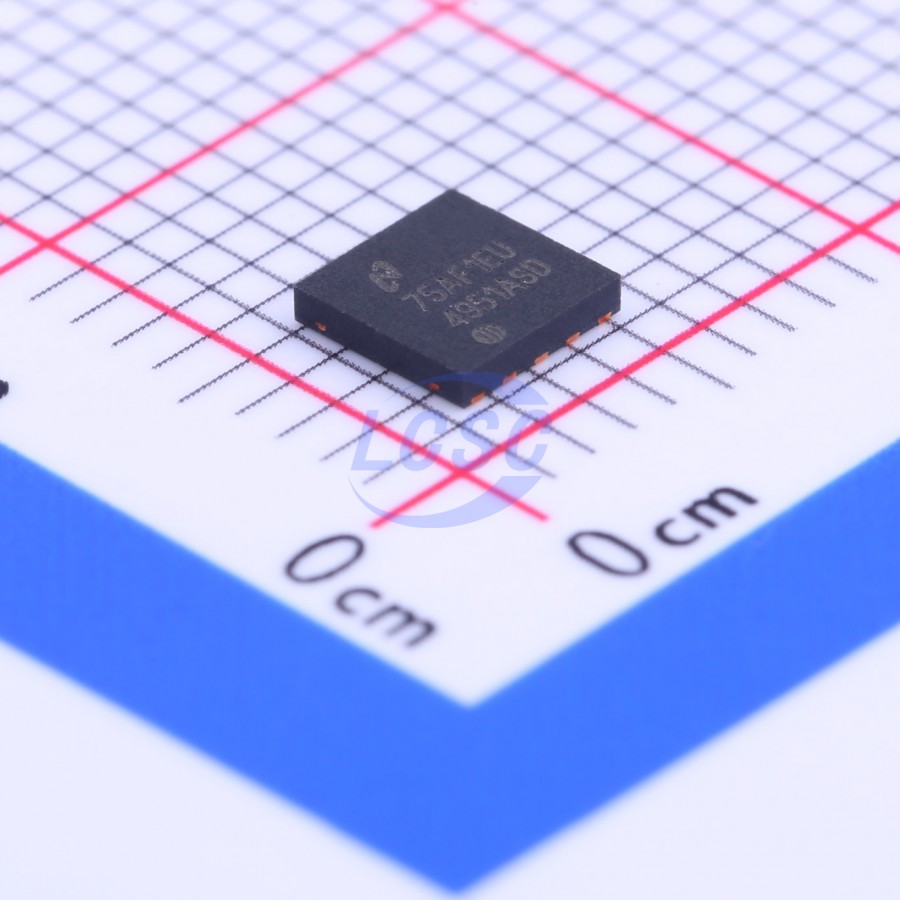

LM4951ASD/NOPB
2.5mA 2.7V~9V 1-Channel 1.8Wx1@8Ω Class AB WSON-10-EP(4x4) Audio Amplifiers RoHS
Boomer Audio Power Amplifier Wide Voltage Range Audio Amplifier With Short Circuit Protection
- Manufacturer
- TI
- Manufacturer part #
- LM4951ASD/NOPB
- Store part #
- C181489
- Package / case
- WSON-10-EP(4x4)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,297 in stock
#C181489
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.68 | ₹174.68 |
| 10+ | ₹154.26 | ₹1,542.60 |
| 30+ | ₹135.14 | ₹4,054.20 |
| 100+ | ₹120.80 | ₹12,080.00 |
| 500+ | ₹114.94 | ₹57,470.00 |
| 1,000+ | ₹112.11 | ₹1,12,110.00 |
1 × ₹174.68
₹174.68
excl. GST
₹206.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM4951ASD/NOPB
₹174.68 for 1 + GST
Specifications
- Quiescent Current
- 2.5mA
- Voltage - Supply
- 2.7V~9V
- Features
- Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.07%
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 1 Single-Ended Input
- Speaker Channels
- 1-Channel
- Output Power
- 1.8Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 66dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The LM4951A is an audio power amplifier designed for applications with supply voltages ranging from 2.7V up to 9V. The LM4951A is capable of delivering 1.8W continuous average power with less than 1% THD+N into a bridge connected 8Ω load when operating from a 7.5VDC power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4951A does not require bootstrap capacitors, or snubber circuits. The LM4951A features a low-power consumption active-low shutdown mode. Additionally, the LM4951A features an internal thermal shutdown protection mechanism and short circuit protection. The LM4951A contains advanced pop & click circuitry that eliminates noises which would otherwise occur during turn-on and turn-off transitions. The LM4951A is unity-gain stable and can be configured by external gain-setting resistors.
Applications
- Portable Devices
- Cell Phones
- Laptop Computers
- Computer Speaker Systems
- MP3 Player Speakers
Key features
- Pop & Click Circuitry Eliminates Noise During Turn-On and Turn-Off Transitions
- Wide Supply Voltage Range: 2.7V to 9V
- Low Current, Active-Low Shutdown Mode
- Low Quiescent Current
- Thermal Shutdown Protection
- Short Circuit Protection
- Unity-Gain Stable
- External Gain Configuration Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4951ASDX/NOPB#C2861376TI · WSON-10(4x4) | TI | WSON-10(4x4) | 251 | ₹194.57 · 251 in stock | View |
