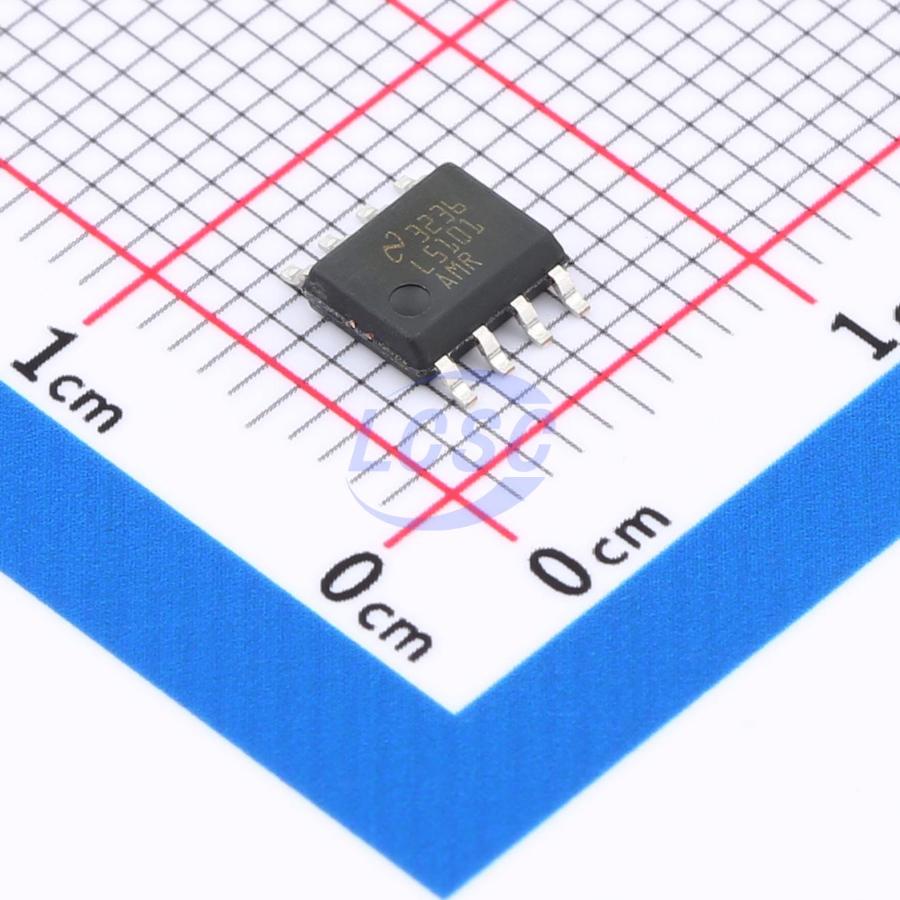

LM5101AMRX/NOPB
9V~14V 3A 3A SO-8 Gate Drivers RoHS
High-Voltage and Low-Side Gate Drivers
- Manufacturer
- TI
- Manufacturer part #
- LM5101AMRX/NOPB
- Store part #
- C2677212
- Package / case
- SO-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,483 in stock
#C2677212
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹340.74 | ₹340.74 |
| 10+ | ₹286.69 | ₹2,866.90 |
| 30+ | ₹252.84 | ₹7,585.20 |
| 100+ | ₹218.11 | ₹21,811.00 |
| 500+ | ₹202.49 | ₹1,01,245.00 |
| 1,000+ | ₹195.76 | ₹1,95,760.00 |
1 × ₹340.74
₹340.74
excl. GST
₹402.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM5101AMRX/NOPB
₹340.74 for 1 + GST
Specifications
- Low Level Delay Time
- 56ns
- High Level Delay Time
- 56ns
- Quiescent Current
- 400uA
- Input Logic Level - High
- 1.8V
- Voltage - Supply
- 9V~14V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 3A
- Rise Time
- 430ns
- Fall Time
- 260ns
- Features
- Built-in bootstrap diode
- Current - Output High(IOH)
- 3A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The LM5100A/B/C and LM5101A/B/C high-voltage gate drivers are designed to drive both the high-side and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration. The floating high-side driver is capable of operating with supply voltages up to 100 V. The A versions provide a full 3-A of gate drive, while the B and C versions provide 2 A and 1 A, respectively. The outputs are independently controlled with CMOS input thresholds (LM5100A/B/C) or TTL input thresholds (LM5101A/B/C).
Applications
- Current-Fed Push-Pull Converters
- Half and Full Bridge Power Converters
- Synchronous Buck Converters
- Two Switch Forward Power Converters
- Forward with Active Clamp Converters
Key features
- Drives Both a High-Side and Low-Side N-Channel MOSFETs
- Independent High- and Low-Driver Logic Inputs
- Bootstrap Supply Voltage up to 118 V DC
- Fast Propagation Times (25-ns Typical)
- Drives 1000-pF Load With 8-ns Rise and Fall Times
- Excellent Propagation Delay Matching (3-ns Typical)
- Supply Rail Undervoltage Lockout
- Low Power Consumption
- Pin Compatible With HIP2100/HIP2101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5101AMX/NOPB#C575559TI · SOIC-8 | TI | SOIC-8 | 2,342 | ₹156.06 · 2,342 in stock | View |
| LM5101AMR/NOPB#C1524107TI · SO-8 | TI | SO-8 | 14 | ₹276.36 · 14 in stock | View | |
 | LM25101AMX/NOPB#C575561TI · SOIC-8 | TI | SOIC-8 | 3 | ₹581.99 · 3 in stock | View |
 | ISL2111ABZ#C1524111RENESAS · SOIC-8 | RENESAS | SOIC-8 | 29 | ₹1,377.32 · 29 in stock | View |
| ISL2111ABZ-T#C695277RENESAS · SOIC-8 | RENESAS | SOIC-8 | 25 | ₹293.81 · 25 in stock | View | |
