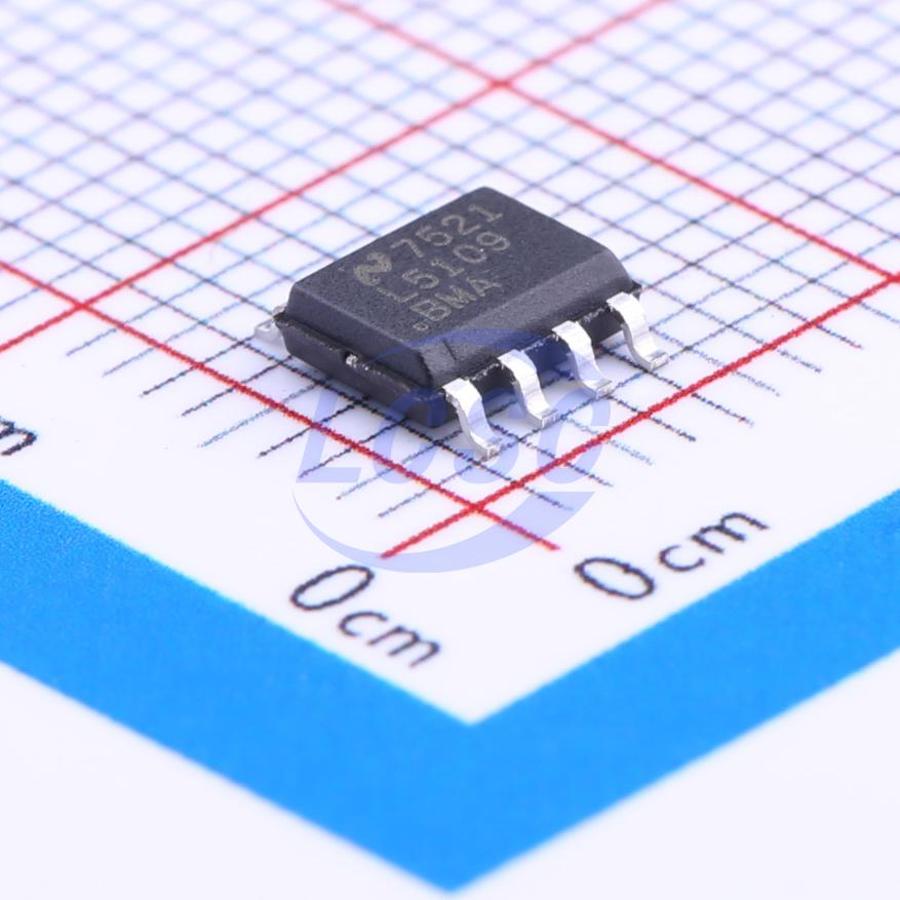

LM5109BMAX/NOPB
Half-Bridge Gate Driver IC MOSFET SOIC-8
High-voltage 1A peak half-bridge gate driver
- Manufacturer
- TI
- Manufacturer part #
- LM5109BMAX/NOPB
- Store part #
- C116862
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
498 in stock
#C116862
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.73 | ₹94.73 |
| 10+ | ₹77.36 | ₹773.60 |
| 30+ | ₹68.66 | ₹2,059.80 |
| 100+ | ₹60.18 | ₹6,018.00 |
| 500+ | ₹54.97 | ₹27,485.00 |
| 1,000+ | ₹52.15 | ₹52,150.00 |
1 × ₹94.73
₹94.73
excl. GST
₹111.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM5109BMAX/NOPB
₹94.73 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.8V
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 300uA
- Voltage - Supply
- 8V~14V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 15ns
- Fall Time
- 15ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The LM5109B is a cost-effective, high-voltage gate driver designed to drive both the high-side and low-side N-channel MOSFETs in a synchronous buck or half-bridge configuration. The floating high-side driver is capable of operating with power rail voltages up to 90V. The outputs are independently controlled via cost-effective TTL and CMOS-compatible input thresholds. A robust level-shifting technology combines high operating speed with low power consumption, providing clean level transitions from the control input logic to the high-side gate driver. UVLO is provided on both the low-side and high-side power rails. The device is available in an 8-pin SOIC and a thermally enhanced 8-pin WSON package.
Applications
- Current feedback push-pull converters
- Half-bridge and full-bridge power converters
- Solid-state motor drives
- Double-switch forward power converters
Key features
- Drives high-side and low-side N-channel MOSFETs
- 1A peak output current (1.0A sink and 1.0A source)
- TTL and CMOS compatible inputs
- Bootstrap supply voltage up to 108VDC
- Short propagation time (30ns typical)
- Drives 1000pF loads with 15ns rise and fall times
- Excellent propagation delay matching (2ns typical)
- Supply rail UVLO support
- Low power consumption
- 8-pin SOIC and thermally enhanced 8-pin WSON packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5109AMAX/NOPB#C129332TI · SOIC-8 | TI | SOIC-8 | 76 | ₹178.59 · 76 in stock | View |
| LM5109BMA/NOPB#C1549317TI · SOIC-8 | TI | SOIC-8 | 54 | ₹146.10 · 54 in stock | View | |
 | JSM5109G#C19077361JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 55 | ₹34.54 · 55 in stock | View |
 | EG2132#C480660EG Micro · SOP-8 | EG Micro | SOP-8 | 1,00,285 | ₹20.60 · 1,00,285 in stock | View |
| EG2032#C53513003EG Micro · SOP-8-150mil | EG Micro | SOP-8-150mil | 1,110 | ₹12.61 · 1,110 in stock | View | |
