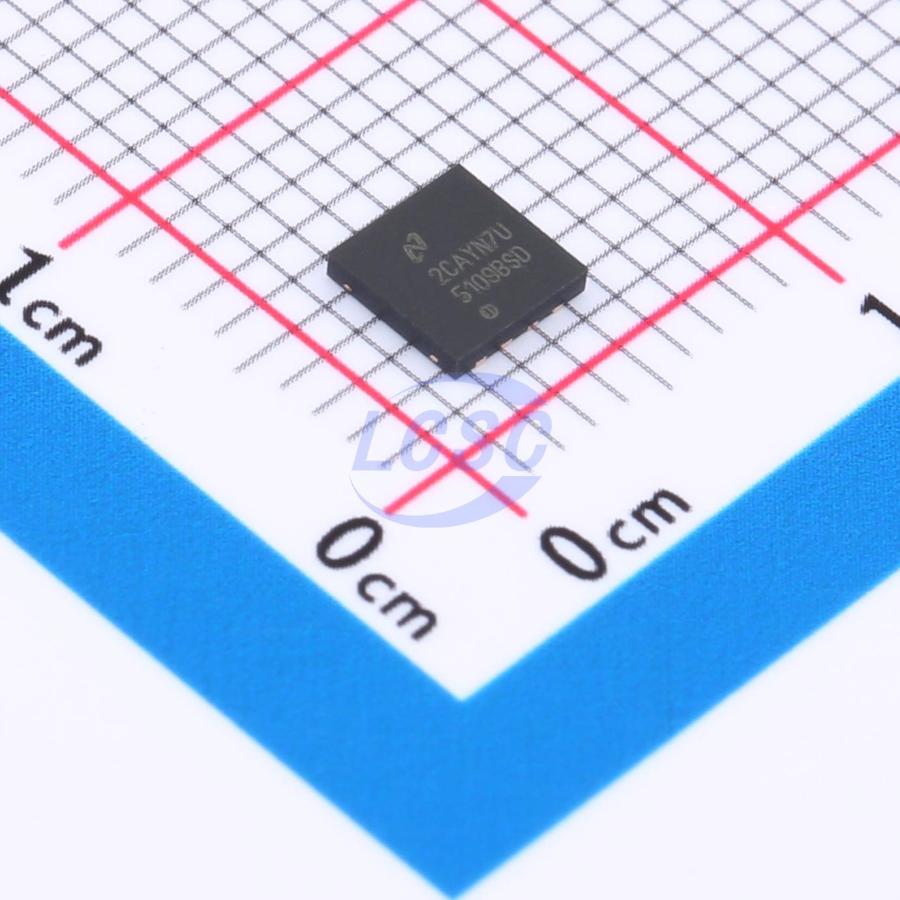

LM5109BSDX/NOPB
Half-Bridge Gate Driver IC MOSFET WSON-8(4x4)
High-voltage 1A peak half-bridge gate driver
- Manufacturer
- TI
- Manufacturer part #
- LM5109BSDX/NOPB
- Store part #
- C910385
- Package / case
- WSON-8(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
993 in stock
#C910385
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.50 | ₹82.50 |
| 10+ | ₹70.13 | ₹701.30 |
| 30+ | ₹61.44 | ₹1,843.20 |
| 100+ | ₹54.06 | ₹5,406.00 |
| 500+ | ₹51.89 | ₹25,945.00 |
| 1,000+ | ₹50.59 | ₹50,590.00 |
1 × ₹82.50
₹82.50
excl. GST
₹97.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
LM5109BSDX/NOPB
₹82.50 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.8V
- Low Level Delay Time
- 32ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 300uA
- Voltage - Supply
- 8V~14V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 15ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.071 g
Overview
The LM5109B device is a cost-effective high-voltage gate driver designed to drive high-side and low-side N-channel MOSFETs in synchronous buck or half-bridge configurations. The floating high-side driver can operate with supply rail voltages up to 90V. The outputs are independently controlled via cost-effective TTL- and CMOS-compatible input thresholds. A robust level-shifting technique combines high operating speed and low power consumption and provides clean level shifting from the control input logic to the high-side gate driver. The device provides undervoltage lockout on both the low-side and high-side supply rails. The device is available in an 8-pin SOIC and a thermally enhanced 8-pin WSON package.
Applications
- Current feedback push-pull converters
- Half-bridge and full-bridge power converters
- Solid-state motor drives
- Double-switch forward power converters
Key features
- Drives high-side and low-side N-channel MOSFETs
- 1A peak output current (1.0A sink and 1.0A source)
- TTL and CMOS compatible inputs
- Bootstrap supply voltage up to 108VDC
- Short propagation time (30ns typical)
- Drives 1000pF loads with 15ns rise and fall times
- Excellent propagation delay matching (2ns typical)
- Supply rail UVLO support
- Low power consumption
- 8-pin SOIC and thermally enhanced 8-pin WSON packages
