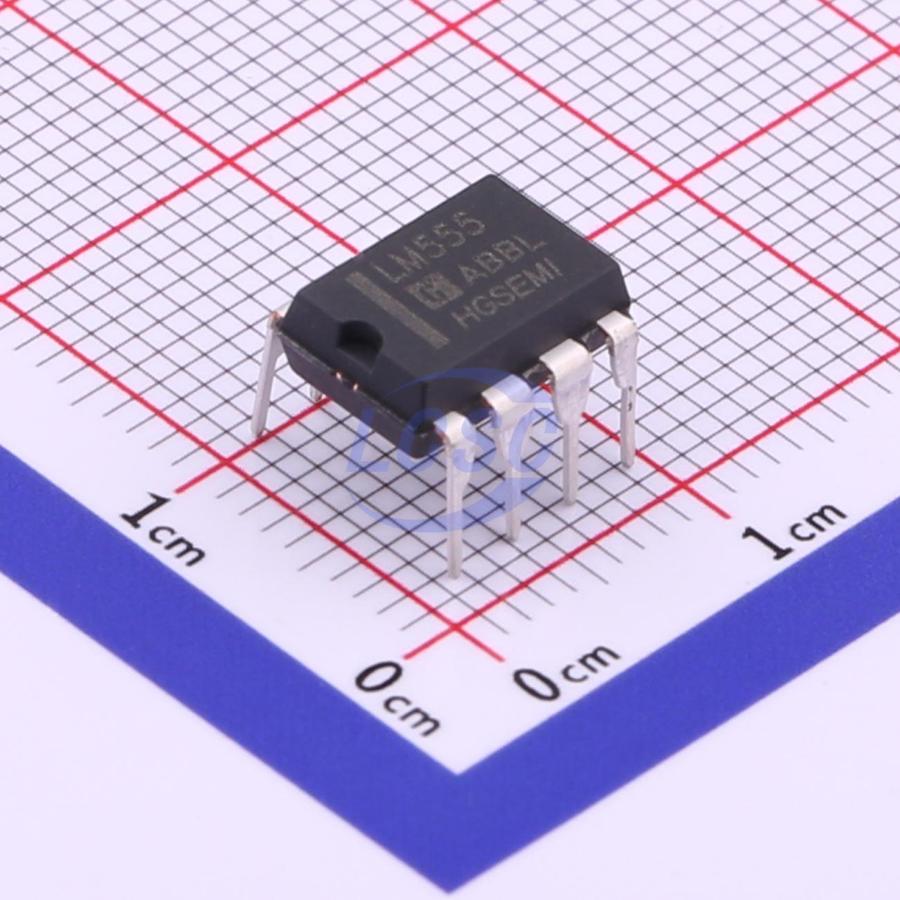

LM555N
DIP-8 Programmable Timers and Oscillators
General-purpose single bipolar timers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM555N
- Store part #
- C725327
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,655 in stock
#C725327
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.23 | ₹106.15 |
| 50+ | ₹17.20 | ₹860.00 |
| 150+ | ₹15.32 | ₹2,298.00 |
| 500+ | ₹12.98 | ₹6,490.00 |
| 2,000+ | ₹11.93 | ₹23,860.00 |
| 4,000+ | ₹11.31 | ₹45,240.00 |
5 × ₹21.23
₹106.15
excl. GST
₹125.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM555N
₹106.15 for 5 + GST
Specifications
- Supply Current
- 2mA
- Operating Temperature
- 0℃~70℃
- Features
- Adjustable duty cycle oscillation;Reset function
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.775 g
Overview
The LM555 monolithic timing circuit is a highly stable controller capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA.
Key features
- Low turn-off time
- Maximum operating frequency greater than 500 kHz
- Timing from microseconds to hours
- Operates in both astable and monostable modes
- Output can source or sink up to 200 mA
- Adjustable duty cycle
- TTL compatible
- Temperature stability of 0.005% per °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM555CN#C22461592HGSEMI · DIP-8 | HGSEMI | DIP-8 | 995 | ₹20.78 · 995 in stock | View |
 | NE555N#C398063HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,245 | ₹21.27 · 1,245 in stock | View |
 | LM555IN#C22461593HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,655 | ₹23.87 · 1,655 in stock | View |
 | SA555N#C19193475HGSEMI · DIP-8 | HGSEMI | DIP-8 | 2,485 | ₹17.08 · 2,485 in stock | View |
 | LMC555N#C725328HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,445 | ₹32.08 · 1,445 in stock | View |
