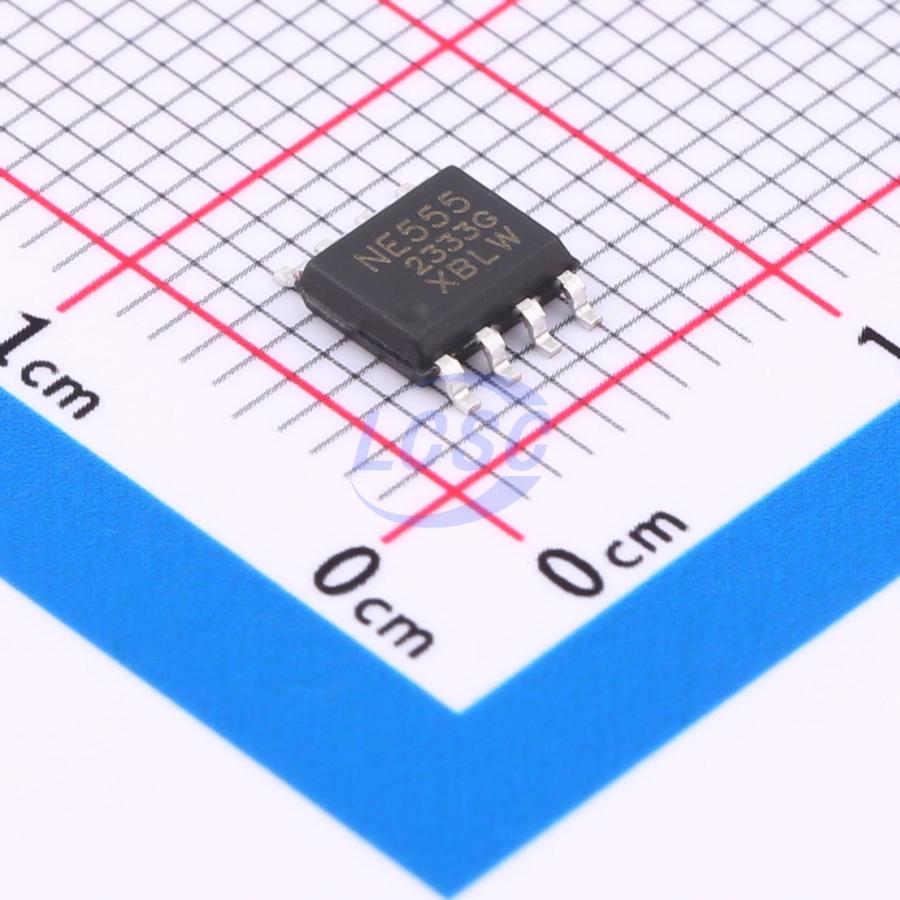

NE555DTR(XBLW)
SOP-8 Programmable Timers and Oscillators RoHS
General Timer Circuit
- Manufacturer
- XBLW
- Manufacturer part #
- NE555DTR(XBLW)
- Store part #
- C18723595
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,25,900 in stock
#C18723595
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.05 | ₹101.00 |
| 200+ | ₹4.02 | ₹804.00 |
| 600+ | ₹3.49 | ₹2,094.00 |
| 2,500+ | ₹3.11 | ₹7,775.00 |
| 10,000+ | ₹2.79 | ₹27,900.00 |
| 20,000+ | ₹2.63 | ₹52,600.00 |
20 × ₹5.05
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE555DTR(XBLW)
₹101.00 for 20 + GST
Specifications
- Supply Current
- 3mA
- Features
- Shutdown control;Reset function
- Operating Temperature
- 0℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.206 g
Overview
The NE555 is a general-purpose timer circuit — an analog IC that combines analog signal processing with logic functions, capable of generating precise time delays and oscillations. This timer circuit finds applications in electronic control, electronic detection, and electronic alarm systems. For example, it can be configured as a precision timer, pulse generator, time-delay generator, PWM modulator, phase modulator, or sawtooth wave voltage generator. In microcomputer peripheral applications, it can serve as a clock generator to produce the required clock pulses. The device is available in SOP8 or DIP8 packages.
Applications
- Active filters
- Pulse generation
- Precision timing
- Time delay generation
- Pulse width modulation
Key features
- Advanced BiMOS technology
- Low quiescent current: 2.7mA typical
- Chip disable input for IC power-down
- Low standby current in power-down mode: 65μA typical
- Drives speakers with impedances of 8Ω and above
- Output power exceeds 250mW with 32Ω load
- Low distortion: 0.5% typical
- Gain adjustable from 0dB to 46dB in voice frequency band
- Minimal external components
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GT7555CDTR#C19708137XBLW · SOP-8 | XBLW | SOP-8 | 1,180 | ₹12.87 · 1,180 in stock | View |
 | TLC555DTR(XBLW)#C18723594XBLW · SOP-8 | XBLW | SOP-8 | 7,610 | ₹12.29 · 7,610 in stock | View |
