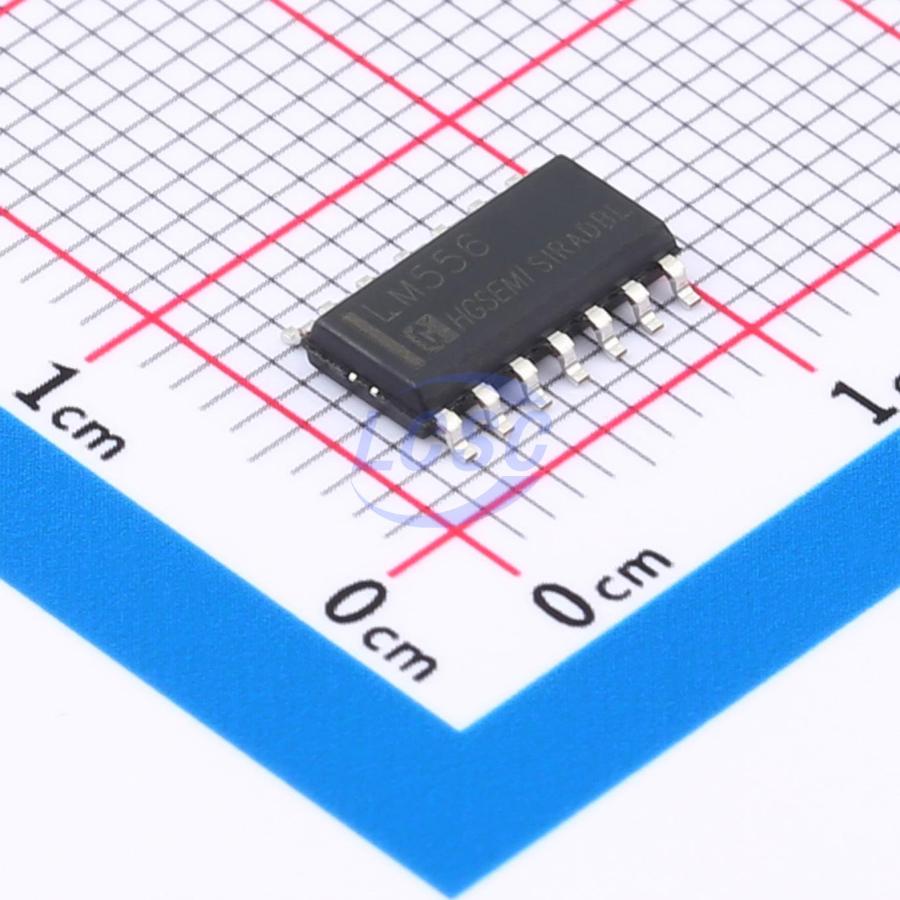

LM556M/TR

This device integrates two independent 555 general-purpose timer circuits. The two circuits share the power supply (VCC) and ground (GND) pins, while all other circuitry and pins are fully independent of each other. Each timer circuit consists of six functional blocks: a threshold comparator, a trigger comparator, an RS flip-flop, a reset input, a discharge, and a trigger input. Each circuit supports precise timing or oscillation waveform generation through external resistors and capacitors.

Applications

• Precision timing
• Pulse shaping, PWM, and pulse phase modulation
• Pulse generators and audio tone generators
• Delay generators and frequency dividers
• Industrial control
• Traffic signal control

Key features

• Dual independent general-purpose timing circuits
• High output drive current, up to 200mA
• Wide timing range, from microseconds to hours
• Excellent temperature stability
• Supports astable and monostable operating modes
