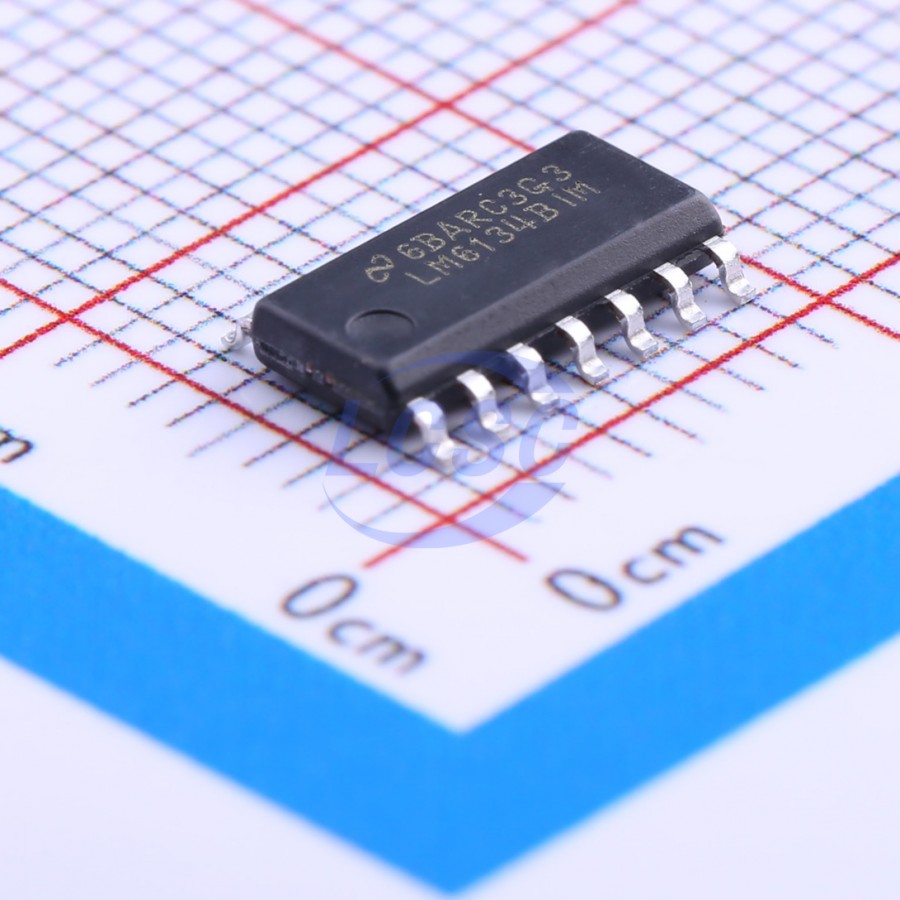

LM6134BIMX/NOPB

The LM6132/34 provides new levels of speed vs. power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA amp supply current, the 10 MHz gain - bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life. The LM6132/34 can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common - mode voltage range. The rail - to - rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. The LM6132/34 can also drive large capacitive loads without oscillating. Operating on supplies from 2.7V to over 24V, the LM6132/34 is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation.

Applications

• Battery Operated Instrumentation
• Instrumentation Amplifiers
• Portable Scanners
• Wireless Communications
• Flat Panel Display Driver

Key features

• Rail - to - Rail Input CMVR −0.25 V to 5.25 V
• Rail - to - Rail Output Swing 0.01V to 4.99V
• High Gain - Bandwidth, 10 MHz at 20 kHz
• Slew Rate 12 V/μs
• Low Supply Current 360 μA/Amp
• Wide Supply Range 2.7V to over 24V
• CMRR 100 dB
• Gain 100 dB with RL = 10 k PSRR 82 dB
