UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,100 in stock
UTCDatasheet (PDF)

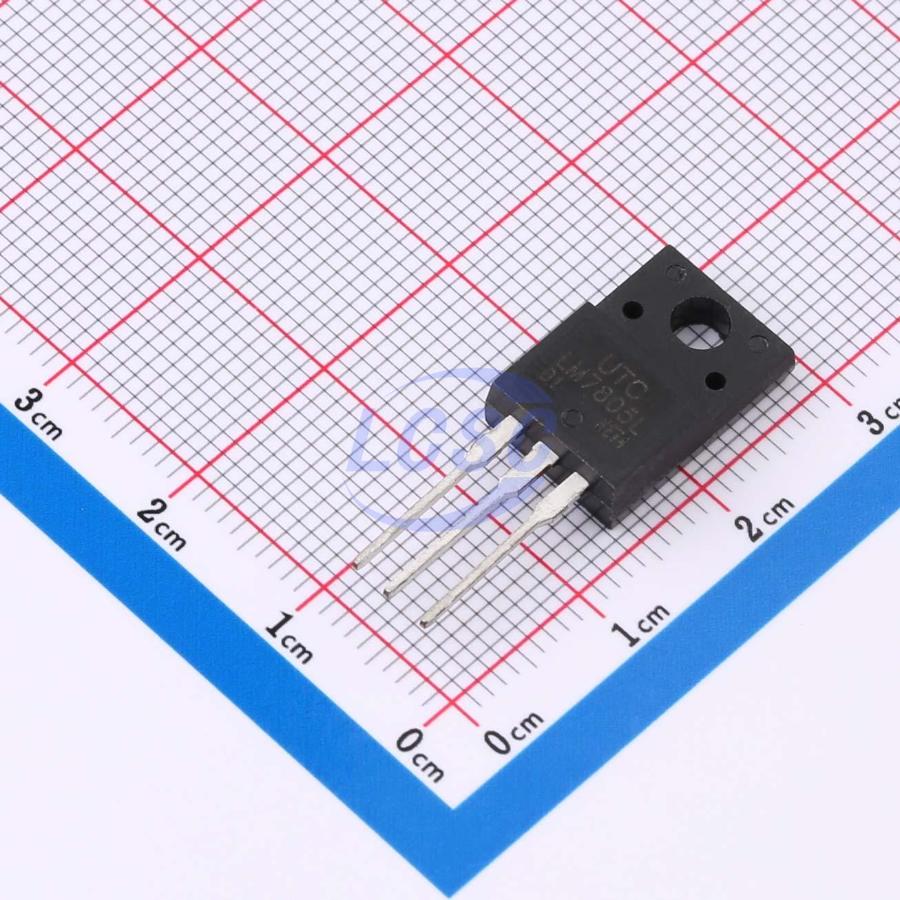

LM7805L-TF3-T
5V Positive Fixed TO-220F Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220FROHS CompliantActive
3-TERMINAL 1A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- UTC
- Manufacturer part #
- LM7805L-TF3-T
- Store part #
- C71107
- Package / case
- TO-220F
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C71107
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.07 | ₹175.35 |
| 50+ | ₹25.59 | ₹1,279.50 |
| 150+ | ₹22.53 | ₹3,379.50 |
| 500+ | ₹18.72 | ₹9,360.00 |
| 2,000+ | ₹17.01 | ₹34,020.00 |
| 5,000+ | ₹16.00 | ₹80,000.00 |
5 × ₹35.07
₹175.35
excl. GST
₹206.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM7805L-TF3-T
₹175.35 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.78 g
Overview
The UTC LM78XX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Key features
- Output current up to 1A
- Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available
- Thermal overload shutdown protection
- Output transistor SOA protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KIA7805API-U/PF#C69761KEC · TO-220F-3 | KEC | TO-220F-3 | 3,045 | ₹30.92 · 3,045 in stock | View |
 | L7805CP#C283396ST · TO-220FP | ST | TO-220FP | On request | Price on request | Quote |
 | L7805ABP#C2935188ST · TO-220FP | ST | TO-220FP | 1,096 | ₹127.54 · 1,096 in stock | View |
 | LM7805TP#C39670778HTC · TO-220F-3L | HTC | TO-220F-3L | 30 | ₹96.49 · 30 in stock | View |
 | LM7805G-TF3-T#C213490UTC · TO-220F | UTC | TO-220F | On request | Price on request | Quote |
