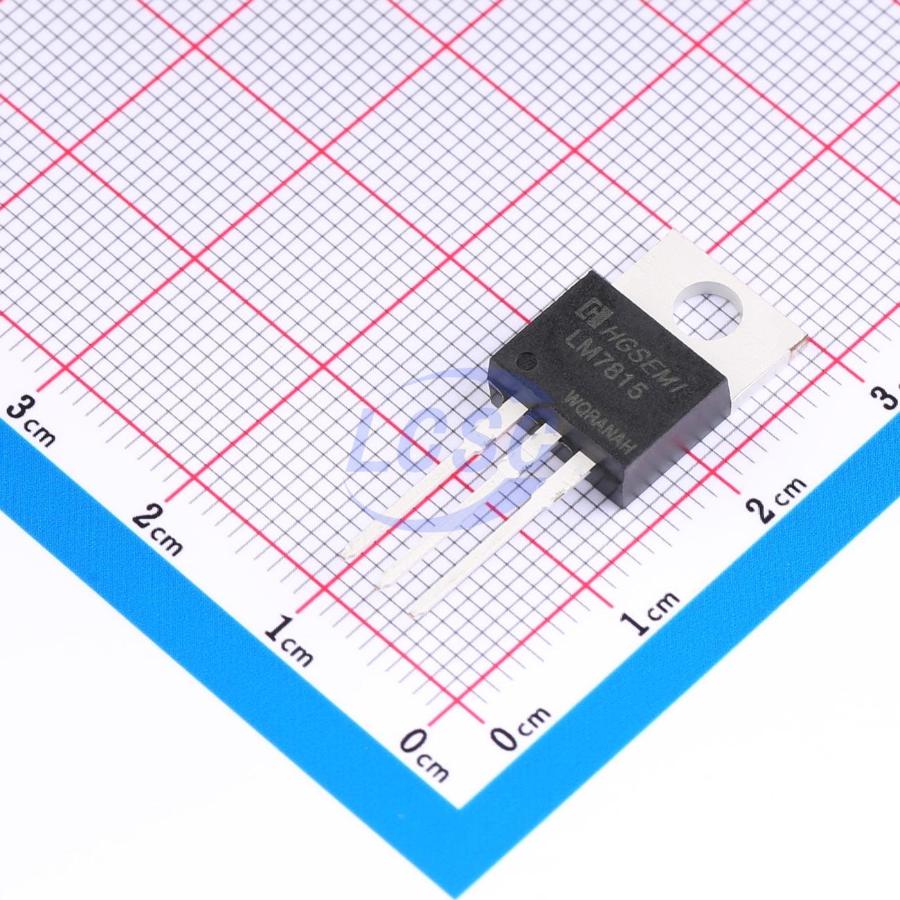

LM7815T
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220
TO-220RoHSActive
Three-Terminal Fixed Positive Voltage Regulator
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM7815T
- Store part #
- C507139
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C507139
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.86 | ₹174.30 |
| 50+ | ₹27.19 | ₹1,359.50 |
| 150+ | ₹23.91 | ₹3,586.50 |
| 500+ | ₹19.81 | ₹9,905.00 |
| 2,000+ | ₹17.98 | ₹35,960.00 |
| 5,000+ | ₹16.88 | ₹84,400.00 |
5 × ₹34.86
₹174.30
excl. GST
₹205.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM7815T
₹174.30 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+80℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 35V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.734 g
Overview
The LM78xx series are voltage regulator circuits used in various televisions, radio-cassette recorders, electronic instruments, and equipment. Available types include LM7805/06/08/09/10/12/15/18/24. Packaged in three-terminal plastic TO-220 and TO-263 with heat sink tab.
Key features
- High output current, I<sub>OMAX</sub> = 1.2A.
- No external components required.
- Built-in over-temperature and short-circuit protection circuits.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM340T-15/HG#C54900096HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 800 | ₹36.01 · 800 in stock | View |
 | LM7815CT#C7432221HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 1,530 | ₹40.71 · 1,530 in stock | View |
