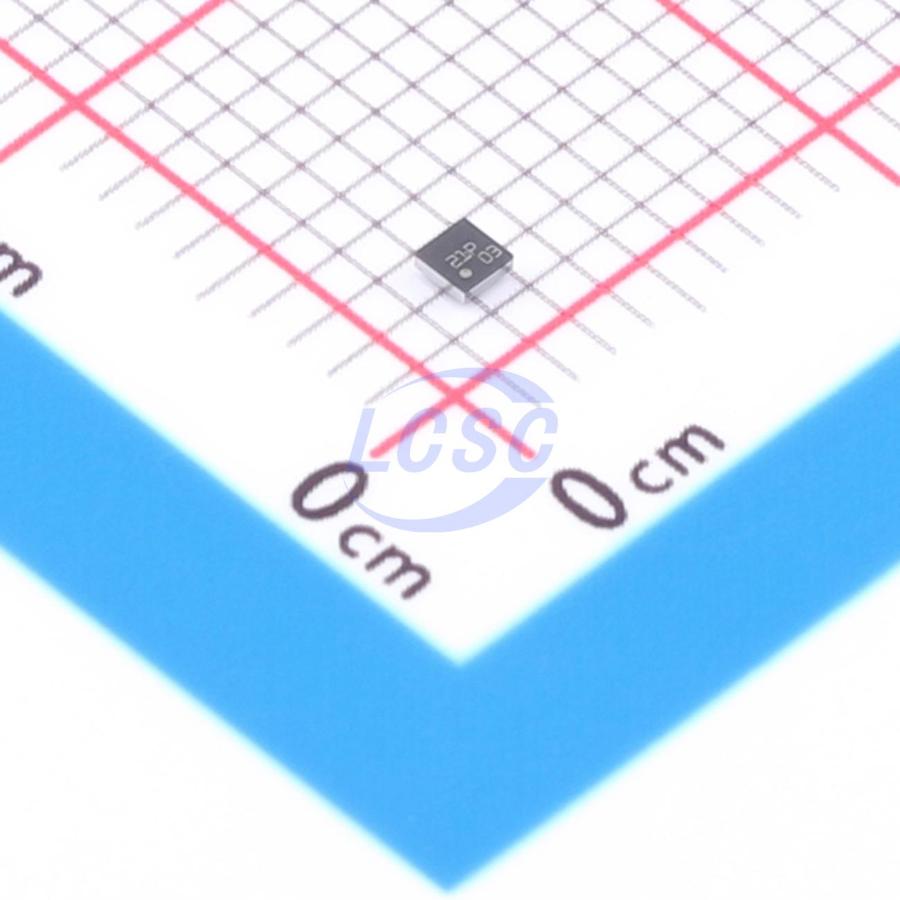

LM78L05ITP/NOPB
5V Positive Fixed DSBGA-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DSBGA-8ROHS3 CompliantActive
100mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM78L05ITP/NOPB
- Store part #
- C2868744
- Package / case
- DSBGA-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2868744
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹249.69 | ₹249.69 |
| 10+ | ₹212.91 | ₹2,129.10 |
| 30+ | ₹190.05 | ₹5,701.50 |
| 250+ | ₹166.31 | ₹41,577.50 |
| 500+ | ₹155.88 | ₹77,940.00 |
| 1,000+ | ₹151.09 | ₹1,51,090.00 |
1 × ₹249.69
₹249.69
excl. GST
₹294.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
LM78L05ITP/NOPB
₹249.69 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.083 g
Overview
- Input voltage up to 30 V - Output voltage tolerances of ±5% over the temperature range - Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V - Output current of 100 mA - Output transistor safe area protection - Internal thermal overload protection - Internal short-circuit current limit - No external components - Available in tiny DSBGA package - Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Applications
- Battery chargers
- Portable instrumentation
- LED lighting
- Appliances
Key features
- Input voltage up to 30 V
- Output voltage tolerances of ±5% over the temperature range
- Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V
- Output current of 100 mA
- Output transistor safe area protection
- Internal thermal overload protection
- Internal short-circuit current limit
- No external components
- Available in tiny DSBGA package
- Available in 3-pin TO-92 and 8-pin SOIC low profile packages
