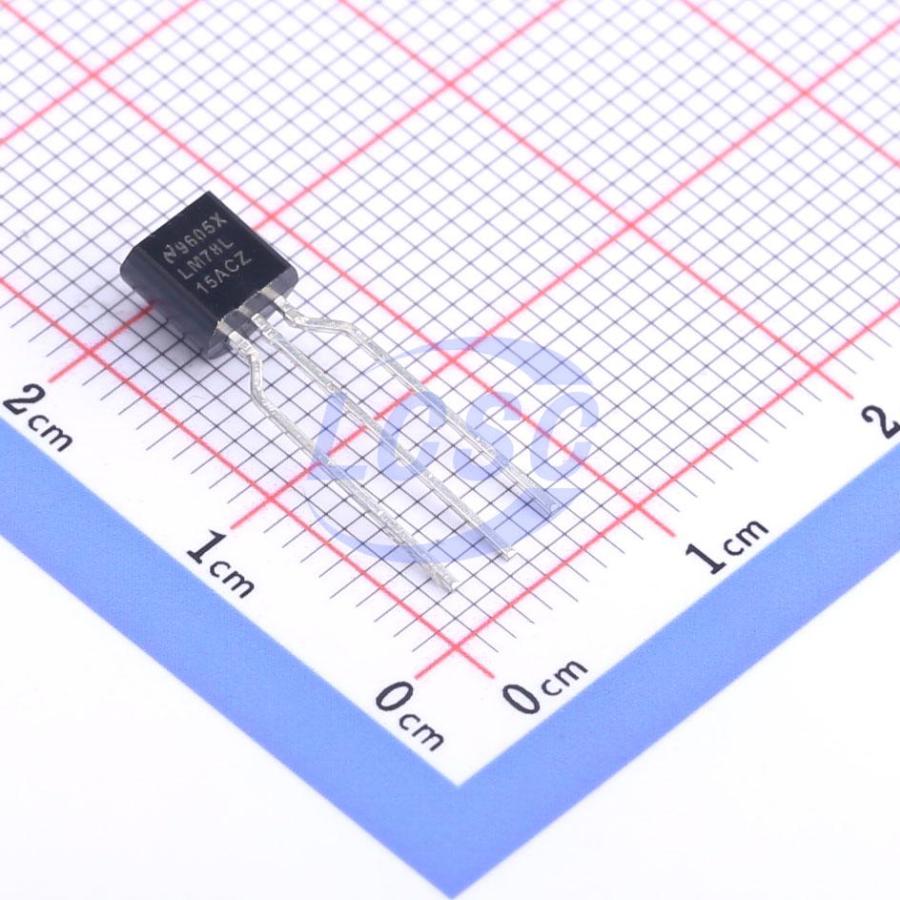

LM78L15ACZ/LFT4
15V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS3 CompliantActive
100mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM78L15ACZ/LFT4
- Store part #
- C2870035
- Package / case
- TO-92
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,512 in stock
#C2870035
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.99 | ₹60.99 |
| 10+ | ₹51.66 | ₹516.60 |
| 30+ | ₹44.93 | ₹1,347.90 |
| 100+ | ₹39.50 | ₹3,950.00 |
| 500+ | ₹37.77 | ₹18,885.00 |
| 1,000+ | ₹36.69 | ₹36,690.00 |
1 × ₹60.99
₹60.99
excl. GST
₹71.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
LM78L15ACZ/LFT4
₹60.99 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
- Input voltage up to 30 V - Output voltage tolerances of ±5% over the temperature range - Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V - Output current of 100 mA - Output transistor safe area protection - Internal thermal overload protection - Internal short-circuit current limit - No external components - Available in tiny DSBGA package - Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Applications
- Battery chargers
- Portable instrumentation
- LED lighting
- Appliances
Key features
- Input voltage up to 30 V
- Output voltage tolerances of ±5% over the temperature range
- Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V
- Output current of 100 mA
- Output transistor safe area protection
- Internal thermal overload protection
- Internal short-circuit current limit
- No external components
- Available in tiny DSBGA package
- Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LM78L15ACZ/NOPB#C354095TI · TO-92-3 | TI | TO-92-3 | 1 | ₹135.32 · 1 in stock | View | |
| MC78L15ACPG#C146797onsemi · TO-92-3 | onsemi | TO-92-3 | 510 | ₹33.75 · 510 in stock | View | |
 | MC78L15ABPG#C415862onsemi · TO-92-3 | onsemi | TO-92-3 | 4,175 | ₹42.43 · 4,175 in stock | View |
 | L78L15ACZ#C2798211ST · TO-92-3 | ST | TO-92-3 | 860 | ₹31.36 · 860 in stock | View |
 | CJ78L15C-TAB-ABG#C20622074JSCJ · TO-92 | JSCJ | TO-92 | 290 | ₹10.19 · 290 in stock | View |
