HGSEMIDatasheet (PDF)

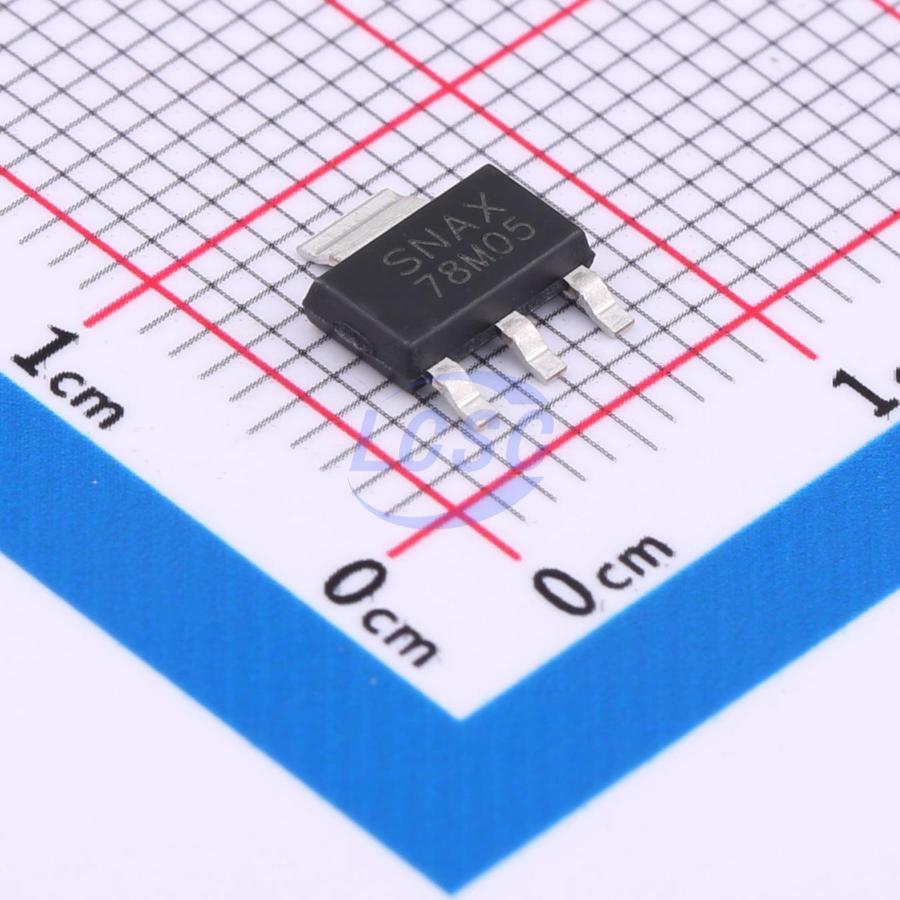

LM78M05MP/TR
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
LM78Mxx Precision 500mA regulators
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM78M05MP/TR
- Store part #
- C19193458
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,730 in stock
#C19193458
Stock & price checked 14 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.53 | ₹77.65 |
| 50+ | ₹12.41 | ₹620.50 |
| 150+ | ₹10.85 | ₹1,627.50 |
| 500+ | ₹9.67 | ₹4,835.00 |
| 2,500+ | ₹8.93 | ₹22,325.00 |
| 5,000+ | ₹8.47 | ₹42,350.00 |
5 × ₹15.53
₹77.65
excl. GST
₹91.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM78M05MP/TR
₹77.65 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.297 g
Overview
The LM78Mxx series three-terminal positive voltage regulators are available in the DPAK package with several fixed output voltages, suitable for a wide range of applications. These regulators can provide on-board local regulation, eliminating distribution problems associated with single-point regulation. Each type features internal current limiting, thermal shutdown, and safe-area protection, making them virtually indestructible. With adequate heatsinking, they can deliver output currents in excess of 0.5 A. Although designed primarily as fixed voltage regulators, these devices can also be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 0.5 A
- Output voltage: 5 V, 6 V, 8 V, 9 V, 10 V, 12 V, 15 V, 24 V
- Thermal overload protection
- Short-circuit protection
- Output transition safe operating area protection
- Output voltage tolerance ±2%
- Guaranteed over extended temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM340MP-5.0/TR#C3007957HGSEMI · SOT-223 | HGSEMI | SOT-223 | 3,865 | ₹25.82 · 3,865 in stock | View |
 | LM2940CMP-5.0/TR#C2926372HGSEMI · SOT-223 | HGSEMI | SOT-223 | 770 | ₹36.37 · 770 in stock | View |
 | LM2940IMP-5.0/TR#C565359HGSEMI · SOT-223-3L | HGSEMI | SOT-223-3L | 4,775 | ₹41.90 · 4,775 in stock | View |
