HGSEMIDatasheet (PDF)

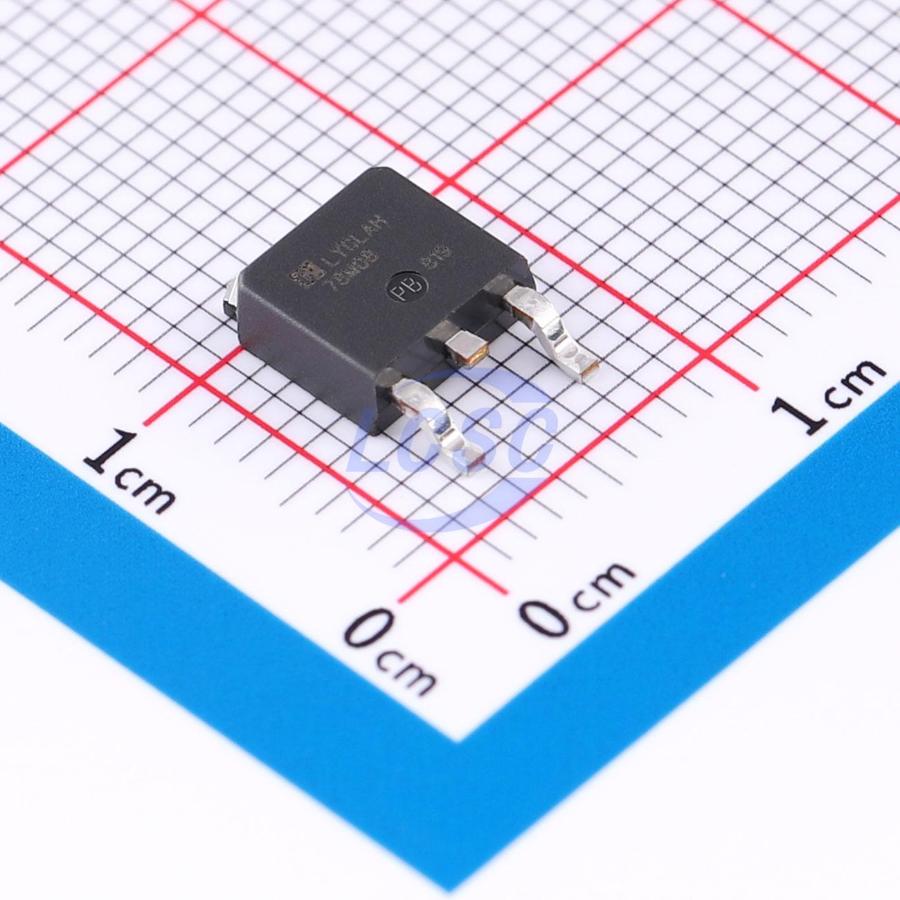

LM78M08CDT/TR-HG
8V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM78M08CDT/TR-HG
- Store part #
- C53374693
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C53374693
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.73 | ₹63.65 |
| 50+ | ₹10.11 | ₹505.50 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 2,500+ | ₹7.04 | ₹17,600.00 |
| 5,000+ | ₹6.64 | ₹33,200.00 |
5 × ₹12.73
₹63.65
excl. GST
₹75.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM78M08CDT/TR-HG
₹63.65 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 500mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.531 g
Overview
The LM78Mxx series three-terminal positive voltage regulators are available in the DPAK package with multiple fixed output voltages, suitable for a wide range of applications. These regulators provide on-board local regulation, eliminating distribution problems associated with single-point regulation. Each model features internal current limiting, thermal shutdown, and safe-area protection, making damage virtually impossible. With adequate heatsinking, they can deliver output currents in excess of 0.5 A. Although these devices are primarily designed as fixed voltage regulators, they can also be used with external components to obtain adjustable voltages and currents.
Key features
- Output current up to 0.5 A
- Output voltage: 5, 6, 8, 9, 10, 12, 15, 24 V
- Thermal overload protection
- Short-circuit protection
- Output transition safe operating area protection
- Output voltage tolerance ±2%
- Guaranteed performance over extended temperature range
