TIDatasheet (PDF)

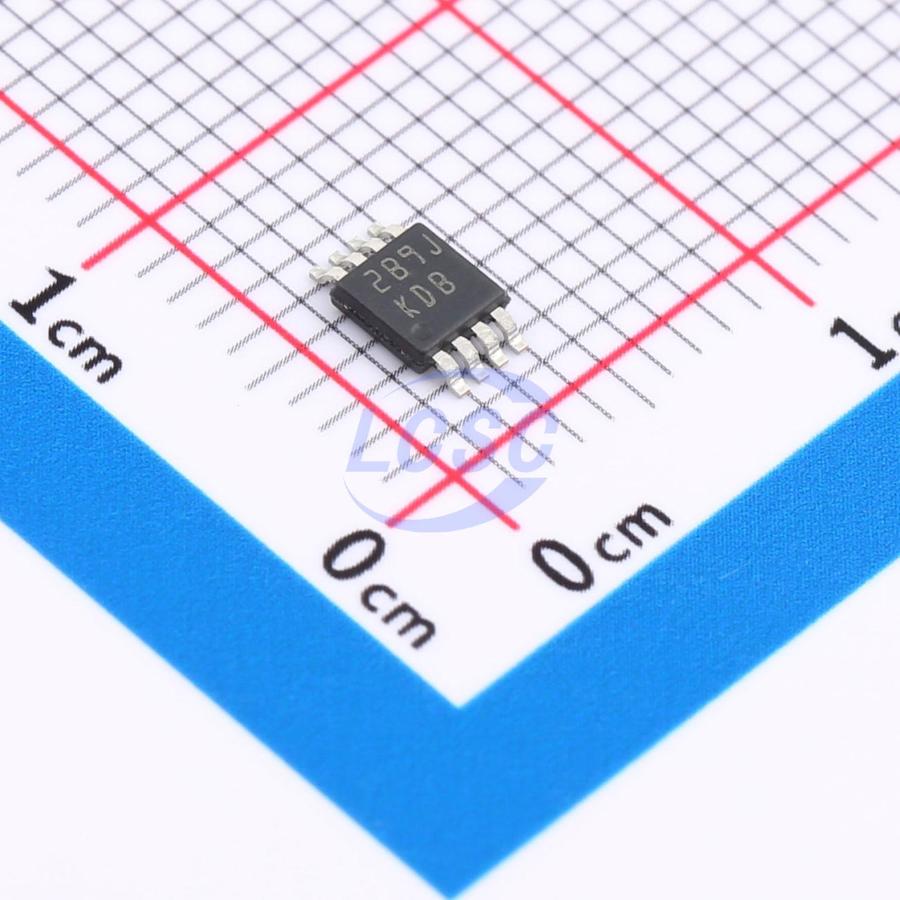

LM9036MM-3.3/NOPB
3.3V Positive Fixed VSSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
VSSOP-8ROHS3 CompliantActive
50mA, 40V, low IQ, low dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- LM9036MM-3.3/NOPB
- Store part #
- C2871450
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C2871450
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.56 | ₹73.56 |
| 10+ | ₹71.72 | ₹717.20 |
| 30+ | ₹70.50 | ₹2,115.00 |
| 100+ | ₹69.07 | ₹6,907.00 |
1 × ₹73.56
₹73.56
excl. GST
₹86.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM9036MM-3.3/NOPB
₹73.56 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 50mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.075 g
Overview
The LM9036 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25μA Ground Pin current at a 0.1 mA load, the LM9036 is ideally suited for automotive and other battery operated systems. The LM9036 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036 has a 40V maximum operating voltage limit, a -40°C to +125°C operating temperature range, and ±5% output voltage tolerance over the entire output current, input voltage, and temperature range.
Key features
- Ultra low Ground Pin Current (IGND ≤ 25μA for IOUT = 0.1mA)
- Fixed 5V, 3.3V, 50mA Output
- Output Tolerance ±5% Over Line, Load, and Temperature
- Dropout Voltage Typically 200mV @ IOUT = 50mA
- −45V Reverse Transient Protection
- Internal Short Circuit Current Limit
- Internal Thermal Shutdown Protection
- 40V Operating Voltage Limit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7B8233QDGNRQ1#C5220182TI · HVSSOP-8 | TI | HVSSOP-8 | 4,347 | ₹220.80 · 4,347 in stock | View |
| LM9036QMM-3.3/NOPB#C2873153TI · VSSOP-8 | TI | VSSOP-8 | On request | ₹236.20 · 0 in stock | View | |
| LM9036QMMX-3.3/NOPB#C2876492TI · VSSOP-8 | TI | VSSOP-8 | On request | ₹73.88 · 0 in stock | View | |
 | TPS7B8133DGNR#C2861004TI · HVSSOP-8 | TI | HVSSOP-8 | On request | ₹122.13 · 0 in stock | View |
