TIDatasheet (PDF)

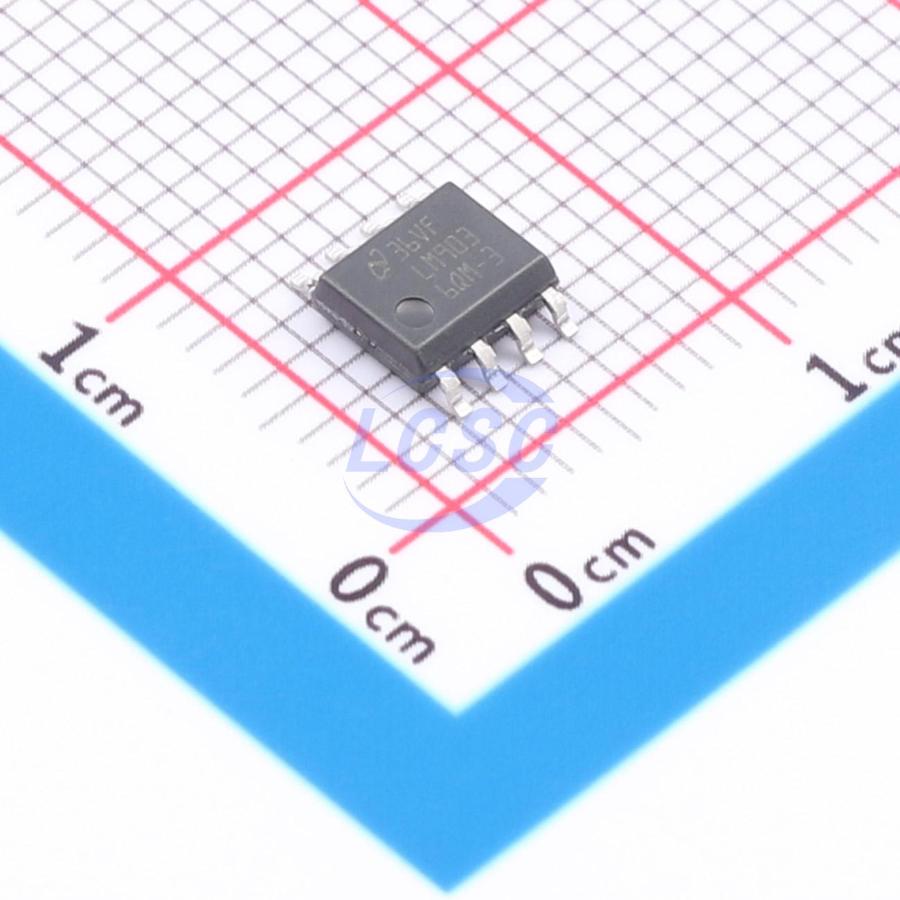

LM9036QMX-3.3/NOPB
3.3V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Automotive 50mA, battery-operated operation (40V), low IQ, low-dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- LM9036QMX-3.3/NOPB
- Store part #
- C2861304
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C2861304
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹178.92 | ₹178.92 |
| 10+ | ₹174.41 | ₹1,744.10 |
| 30+ | ₹171.41 | ₹5,142.30 |
| 100+ | ₹168.19 | ₹16,819.00 |
1 × ₹178.92
₹178.92
excl. GST
₹211.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM9036QMX-3.3/NOPB
₹178.92 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 50mA
- Features
- Short Circuit Protection;Thermal shutdown;Reverse polarity voltage protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The LM9036Q ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25μA Ground Pin current at a 0.1 mA load, the LM9036Q is ideally suited for automotive and other battery operated systems. The LM9036Q retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036Q has a 40V maximum operating voltage limit, a -40℃ to +125℃ operating temperature range, and ±5% output voltage tolerance over the entire output current, input voltage, and temperature range.
Applications
- Automotive systems
- Battery-powered systems
Key features
- AEC-Q100 Grade 1 Qualified (-40°C to 125°C)
- Ultra Low Ground Pin Current (I_GND ≤ 25μA for I_out = 0.1 mA)
- Fixed 5V, 3.3V, 50mA Output
- Output Tolerance ±5% Over Line, Load, and Temperature
- Dropout Voltage Typically 200mV @ I_out = 50mA
- -45V Reverse Transient Protection
- Internal Short Circuit Current Limit
- Internal Thermal Shutdown Protection
- 40V Operating Voltage Limit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM9076BMA-3.3/NOPB#C2862110TI · SOIC-8 | TI | SOIC-8 | 36 | ₹237.02 · 36 in stock | View |
 | LM9076BMAX-3.3/NOPB#C2863025TI · SOIC-8 | TI | SOIC-8 | 77 | ₹467.11 · 77 in stock | View |
 | LM2936M-3.3/NOPB#C2865119TI · SOIC-8 | TI | SOIC-8 | 18 | ₹351.42 · 18 in stock | View |
 | LM9076D-3.3#C784713HTC · SOP-8 | HTC | SOP-8 | 4 | ₹22.57 · 4 in stock | View |
 | LM2936BM-3.3/NOPB#C133851TI · SOIC-8 | TI | SOIC-8 | 2 | ₹370.72 · 2 in stock | View |
