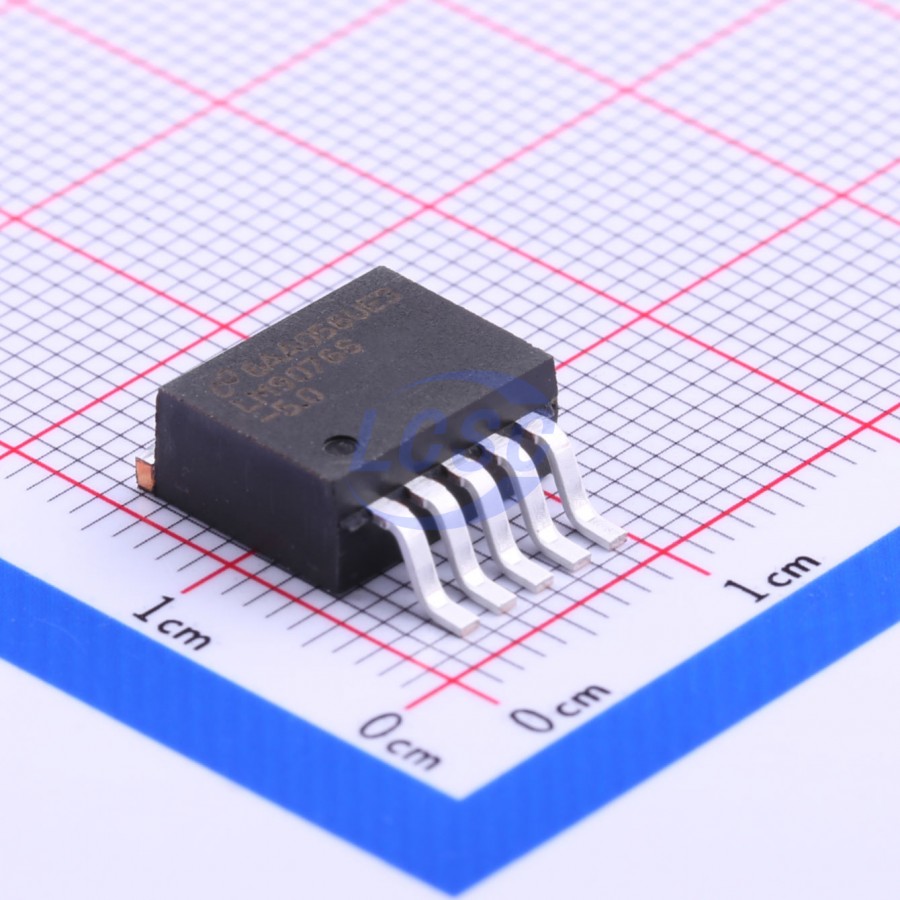

LM9076SX-5.0/NOPB
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DDPAK-5(TO-263-5)
DDPAK-5(TO-263-5)ROHS3 CompliantActive
150mA, 40V, Low Dropout Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM9076SX-5.0/NOPB
- Store part #
- C201682
- Package / case
- DDPAK-5(TO-263-5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C201682
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹637.82 | ₹637.82 |
| 10+ | ₹546.43 | ₹5,464.30 |
| 30+ | ₹491.97 | ₹14,759.10 |
| 100+ | ₹429.63 | ₹42,963.00 |
| 500+ | ₹404.22 | ₹2,02,110.00 |
| 1,000+ | ₹392.90 | ₹3,92,900.00 |
1 × ₹637.82
₹637.82
excl. GST
₹752.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LM9076SX-5.0/NOPB
₹637.82 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Enable control;Reset function;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.41 g
Overview
Applications
- automotive
- industrial
Key features
- Available with 5.0V or 3.3V Output Voltage
- Ultra Low Ground Pin Current, 25 μA Typical for 100 μA Load
- V0UT Initial Accuracy of ±1.5%
- V0UT Accurate to ±3% Over Load and Temperature Conditions
- Low Dropout Voltage, 200 mV Typical with 150 mA Load
- Low Off State Ground Pin current for LM9076BMA
- Delayed RESET Output Pin for Low V0UT Detection
- +70V/-50V Voltage Transients
- Operational for VIN up to +40V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A6050QKTTRQ1#C202282TI · TO-263-5 | TI | TO-263-5 | 15 | ₹775.19 · 15 in stock | View |
 | TLS850B0TBV50ATMA1#C3749109Infineon · TO-263-5 | Infineon | TO-263-5 | 39 | ₹227.45 · 39 in stock | View |
 | NCV8775CDS50R4G#C898787onsemi · D2PAK-5 | onsemi | D2PAK-5 | 43 | ₹429.31 · 43 in stock | View |
 | TLE7270-2G#C540027Infineon · TO-263-5 | Infineon | TO-263-5 | 35 | ₹337.59 · 35 in stock | View |
 | TLE4275QKTTRQ1#C22448182TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 14 | ₹276.27 · 14 in stock | View |
