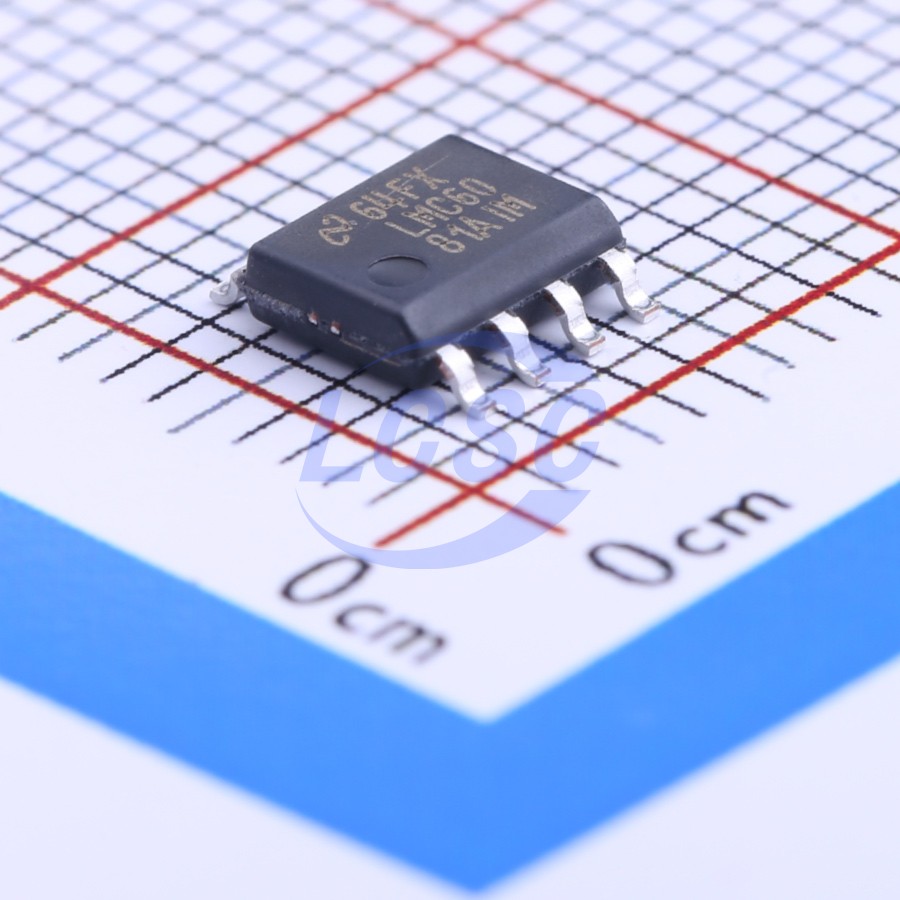

LMC6081AIMX/NOPB
22mA 1 150uV 0.8V/us 85dB 0.01pA 1.3MHz 450uA Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Precision CMOS Single Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC6081AIMX/NOPB
- Store part #
- C133258
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,787 in stock
#C133258
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹365.28 | ₹365.28 |
| 10+ | ₹306.39 | ₹3,063.90 |
| 30+ | ₹269.46 | ₹8,083.80 |
| 100+ | ₹231.86 | ₹23,186.00 |
| 500+ | ₹214.70 | ₹1,07,350.00 |
| 1,000+ | ₹207.31 | ₹2,07,310.00 |
1 × ₹365.28
₹365.28
excl. GST
₹431.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMC6081AIMX/NOPB
₹365.28 for 1 + GST
Specifications
- Output Current
- 22mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 0.8V/us
- Input Offset Current(Ios)
- 0.005pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 0.01pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Gain Bandwidth Product
- 1.3MHz
- Quiescent Current
- 450uA
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Dual Supply
- -7.75V~-2.25V;2.25V~7.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4.5V~15.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LMC6081 is a precision low offset voltage operational amplifier, capable of single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low offset voltage, make the LMC6081 ideally suited for precision circuit applications. Other applications using the LMC6081 include precision full-wave rectifiers, integrators, references, and sample-and-hold circuits. This device is built with TI's advanced Double-Poly Silicon-Gate CMOS process.
Applications
- Instrumentation amplifier
- Photodiode and infrared detector preamplifier
- Transducer amplifiers
- Medical instrumentation
- D/A converter
- Charge amplifier for piezoelectric transducers
Key features
- Low offset voltage: 150 μV
- Operates from 4.5V to 15V single supply
- Ultra low input bias current: 10 fA
- Output swing to within 20mV of supply rail, 100k load
- Input common-mode range includes V−
- High voltage gain: 130 dB
- Improved latchup immunity
