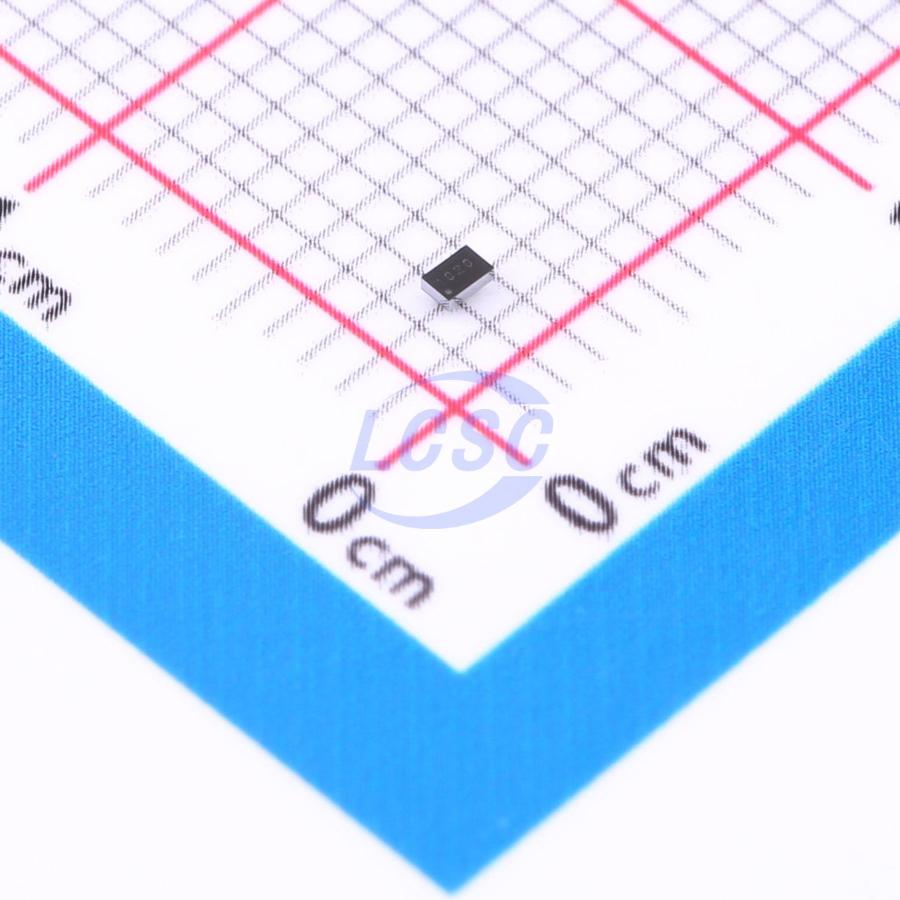

LMG1020YFFR
4.5V~5.5V 5A 7A BGA-6 Gate Drivers RoHS
Low-side GaN and MOSFET Driver For 1ns Pluse Width Applications
- Manufacturer
- Tokmas
- Manufacturer part #
- LMG1020YFFR
- Store part #
- C6423790
- Package / case
- BGA-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,306 in stock
#C6423790
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.38 | ₹96.38 |
| 10+ | ₹77.58 | ₹775.80 |
| 30+ | ₹68.29 | ₹2,048.70 |
| 100+ | ₹56.84 | ₹5,684.00 |
| 500+ | ₹51.44 | ₹25,720.00 |
| 1,000+ | ₹48.62 | ₹48,620.00 |
1 × ₹96.38
₹96.38
excl. GST
₹113.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMG1020YFFR
₹96.38 for 1 + GST
Specifications
- Input Logic Level - Low
- 1.1V~1.8V
- Low Level Delay Time
- 3ns
- High Level Delay Time
- 3ns
- Quiescent Current
- 56uA
- Input Logic Level - High
- 1.7V~2.6V
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -55℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 400ps
- Fall Time
- 500ps
- Features
- Enable shutdown
- Current - Output High(IOH)
- 7A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The LMG1020YF device is a single, low-side driver designed for driving GaN FETs and logic-level MOSFETs in high-speed applications including LiDAR, time-of-flight, facial recognition, and any power converters involving low side drivers. The design simplicity of the LMG1020YF enables extremely fast propagation delays of 3 nanoseconds and minimum pulse width of 1 nanosecond. The drive strength is independently adjustable for the pull-up and pull-down edges by connecting external resistors between the gate and OUTH and OUTL, respectively. The driver features undervoltage lockout (UVLO) and overtemperature protection (OTP) in the event of overload or fault conditions. 0.8mm×1.2mm WCLSP package of LMG1020YF minimizes gate loop inductance and maximizes power density in high-frequency applications.
Applications
- LiDAR
- Time-of-Flight Laser Drivers
- Power Converters GaN-Based Synchronous Rectifier
Key features
- Low-Side, Ultra-Fast Gate Driver for GaN and Silicon FETs
- 1 ns Minimum Input Pulse Width
- 3.0 ns Typical, 4.5 ns Maximum Propagation Delay
- 5-V Supply Voltage
- UVLO and Overtemperature Protection
Same category
