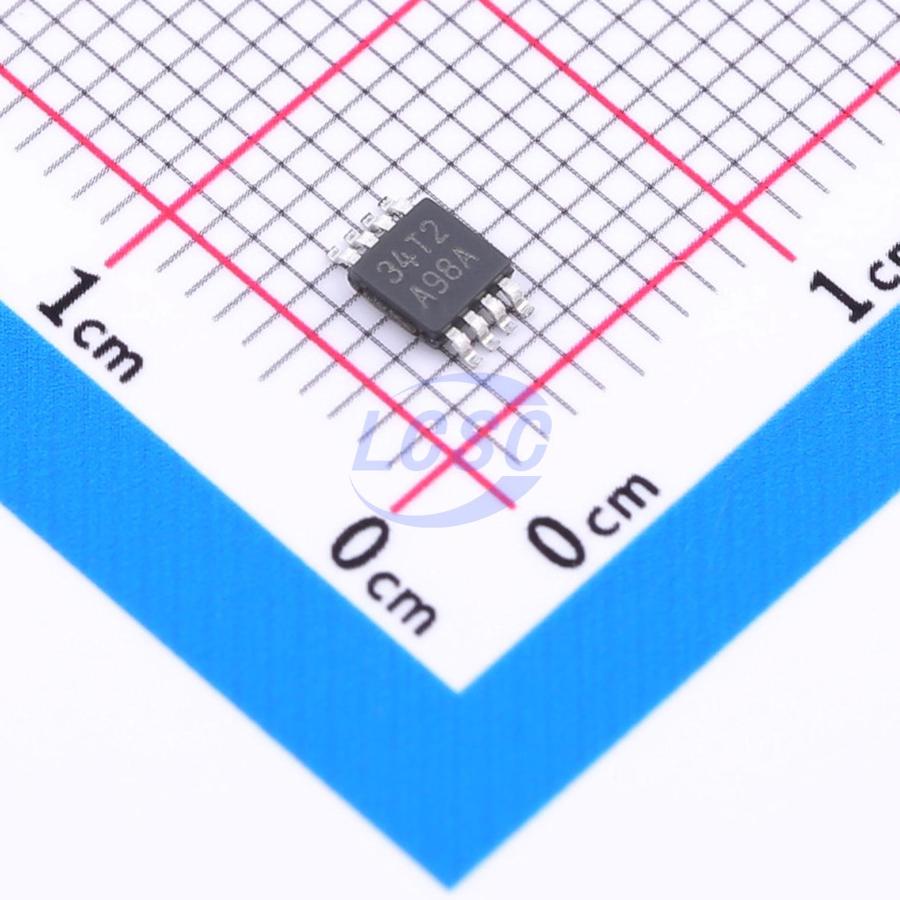

LMH6626MM/NOPB

65mA 2 500uV 320V/us 95dB 13uA 16mA 85MHz VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS3 CompliantActive

Single/Dual Ultra Low Noise Wideband Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMH6626MM/NOPB
Store part #: C2872534
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,034 in stock

#C2872534

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹730.20	₹730.20
10+	₹651.14	₹6,511.40
30+	₹600.54	₹18,016.20
100+	₹551.66	₹55,166.00

Quantity (min 1)

1 × ₹730.20

₹730.20

excl. GST

₹861.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

LMH6626MM/NOPB

₹730.20 for 1 + GST

Specifications

Output Current: 65mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 320V/us
Input Offset Current(Ios): 2.5uA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 13uA
Input Offset Voltage Drift(Vos TC): 250nV/℃
Quiescent Current: 16mA
Gain Bandwidth Product: 85MHz
Input Voltage Noise Density: 1nV/√Hz@1MHz
Dual Supply: -6V~6V
Single Supply: 5V~12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.105 g

Overview

The LMH6624 and LMH6626 devices offer wide bandwidth (1.5 GHz for single, 1.3 GHz for dual) with very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz) and ultra-low dc errors (100 μV VOS, ±0.1 μV/°C drift) providing very precise operational amplifiers with wide dynamic range. This enables the user to achieve closed-loop gains of greater than 10, in both inverting and non-inverting configurations. The LMH6624 (single) and LMH6626 (dual) traditional voltage feedback topology provide the following benefits: balanced inputs, low offset voltage and offset current, very low offset drift, 81dB open loop gain, 95dB common mode rejection ratio, and 88dB power supply rejection ratio. The LMH6624 and LMH6626 devices operate from ±2.5 V to ±6 V in dual supply mode and from 5 V to 12 V in single supply configuration.

Applications

Instrumentation Sense Amplifiers
Ultrasound Pre-amps
Magnetic Tape & Disk Pre-amps
Wide Band Active Filters
Professional Audio Systems
Opto-electronics
Medical Diagnostic Systems

Key features

Wide bandwidth (1.5 GHz for single, 1.3 GHz for dual)
Very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz)
Ultra-low dc errors (100 μV VOS, ±0.1 μV/°C drift)
Balanced inputs
Low offset voltage and offset current
Very low offset drift
81dB open loop gain
95dB common mode rejection ratio
88dB power supply rejection ratio
Operate from ±2.5 V to ±6 V in dual supply mode and from 5 V to 12 V in single supply configuration
