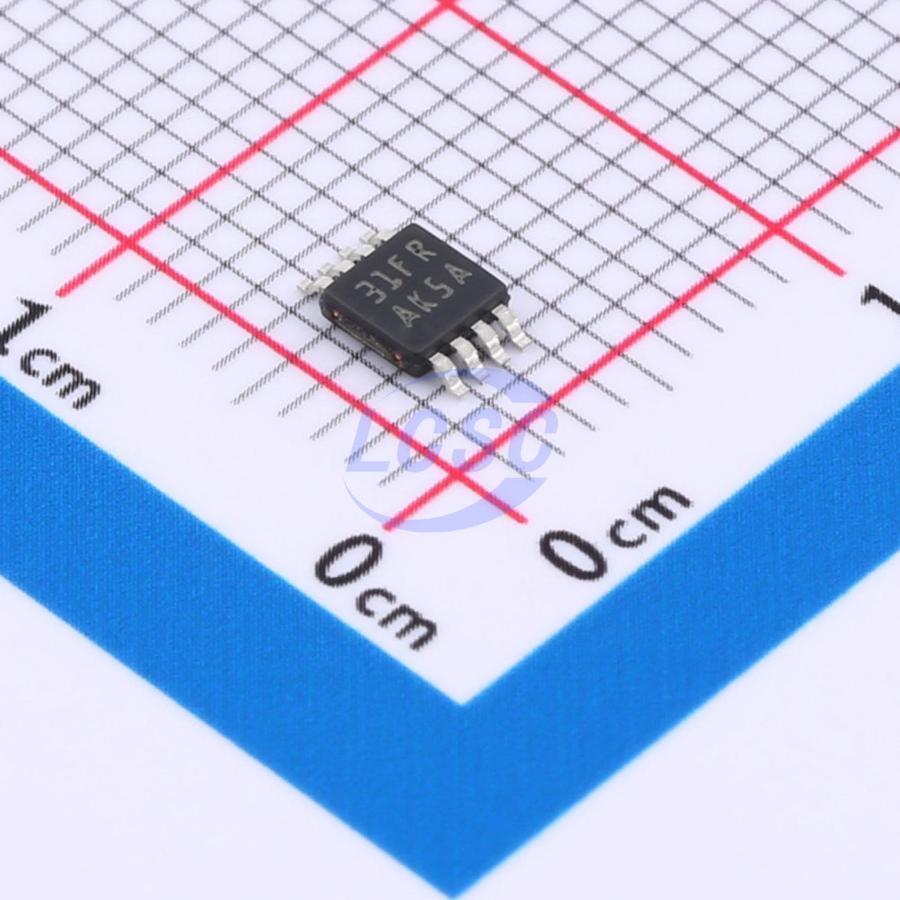

LMP2232AMMX/NOPB
30mA 2 10uV 0.048V/us 97dB 0.02pA 130kHz Rail-to-rail output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- LMP2232AMMX/NOPB
- Store part #
- C2059588
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2059588
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹465.72 | ₹465.72 |
| 10+ | ₹398.51 | ₹3,985.10 |
| 30+ | ₹358.61 | ₹10,758.30 |
| 100+ | ₹318.29 | ₹31,829.00 |
| 500+ | ₹299.65 | ₹1,49,825.00 |
| 1,000+ | ₹291.40 | ₹2,91,400.00 |
1 × ₹465.72
₹465.72
excl. GST
₹549.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
LMP2232AMMX/NOPB
₹465.72 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 0.048V/us
- Input Offset Current(Ios)
- 0.005pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 97dB
- Ib - Input Bias Current
- 0.02pA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Gain Bandwidth Product
- 130kHz
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 1.6V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.078 g
