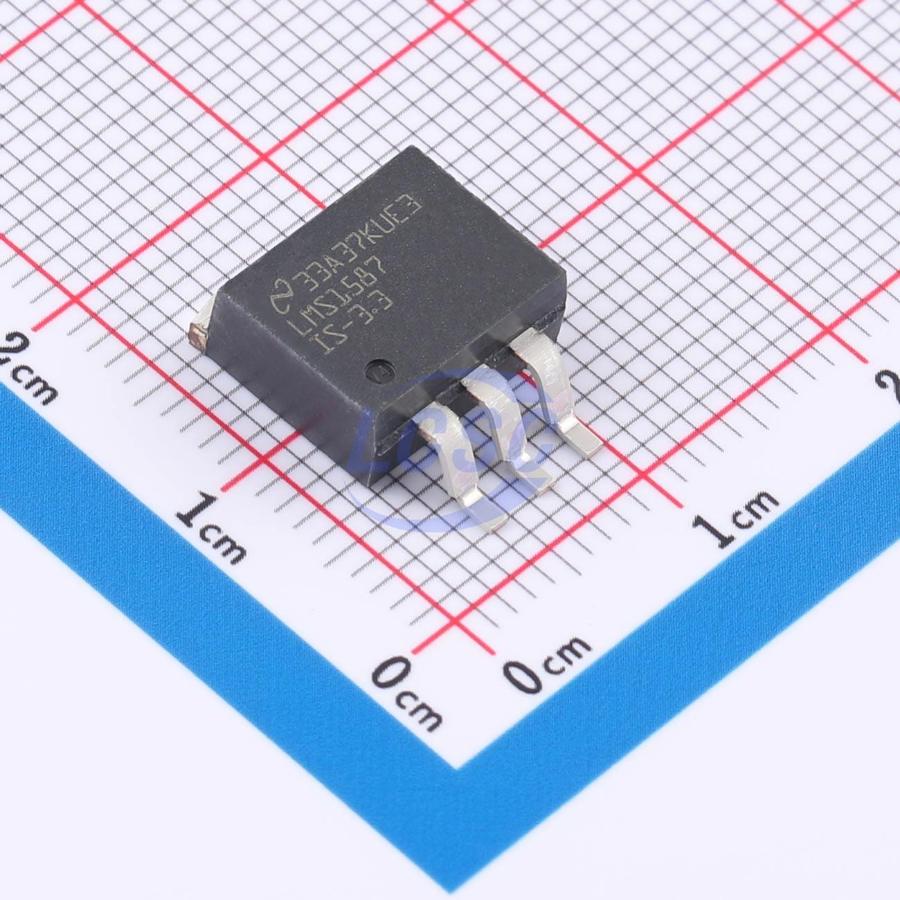

LMS1587IS-3.3/NOPB
3.3V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
3A, 13V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LMS1587IS-3.3/NOPB
- Store part #
- C2877337
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2877337
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹715.57 | ₹715.57 |
| 10+ | ₹638.15 | ₹6,381.50 |
| 45+ | ₹588.55 | ₹26,484.75 |
| 90+ | ₹540.71 | ₹48,663.90 |
1 × ₹715.57
₹715.57
excl. GST
₹844.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per reel
LMS1587IS-3.3/NOPB
₹715.57 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 7mA
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 7V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 45 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The LMS1585A and LMS1587 are low dropout positive regulators with output load current of 5A and 3A respectively. Their low dropout voltage (1.2V) and fast transient response make them an excellent solution for low voltage microprocessor applications. The LMS1585A/87 are available in adjustable versions, which can set the output voltage with only two external resistors. In addition, they are also available in 1.5V and 3.3V fixed voltage versions. The LMS1585A/87 circuits include a zener trimmed bandgap reference, current limiting and thermal shutdown. The LMS1585A/87 series are available in KTT (TO-263) and NDE (TO-220) packages.
Applications
- Pentium processor supplies
- Power PC supplies
- Other microprocessor supplies
- Low voltage logic supplies
Key features
- Fast Transient Response
- Available in Adjustable, 1.5V, and 3.3V versions
- Current Limiting and Thermal Protection
- Commercial Temp. Range: 0°C to 125°C
- Industrial Temp. Range: -40°C to 125°C
- Line Regulation 0.005% (typical)
- Load Regulation 0.05% (typical)
- Direct Replacement for LT 1585A/87
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMS1585AISX-3.3/NO#C2863214TI · TO-263-3 | TI | TO-263-3 | 48 | ₹476.35 · 48 in stock | View |
 | LM1085ISX-3.3/NOPB#C19545TI · TO-263-3 | TI | TO-263-3 | 494 | ₹380.46 · 494 in stock | View |
 | LM1085IS-3.3/NOPB#C87662TI · TO-263-3 | TI | TO-263-3 | 1 | ₹279.05 · 1 in stock | View |
 | LM1084ISX-3.3/NOPB-TUDI#C53285985Tudi · TO-263-3 | Tudi | TO-263-3 | 161 | ₹82.40 · 161 in stock | View |
 | LM1084IS-3.3/NOPB#C14300TI · TO-263-3 | TI | TO-263-3 | 767 | ₹402.73 · 767 in stock | View |
