R+O

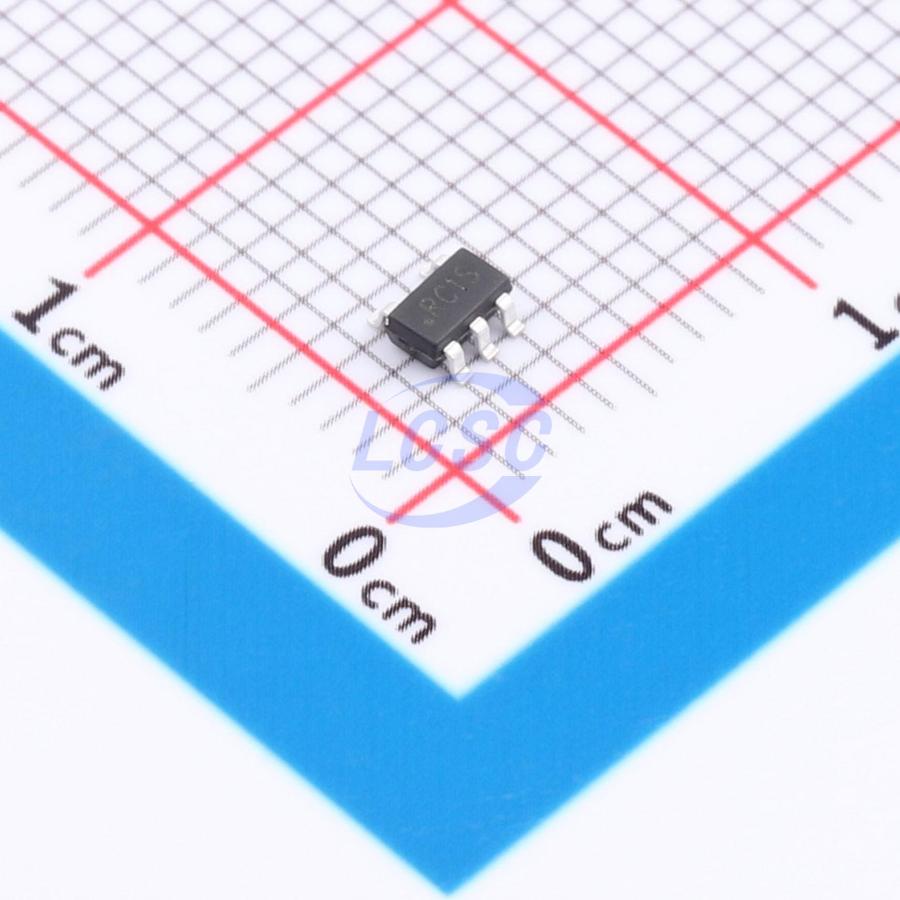

LMV321IDBVR

10pA 40uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Audio Amplifiers

SOT-23-5LRoHSActive

Manufacturer: R+O
Manufacturer part #: LMV321IDBVR
Store part #: C55586813
Package / case: SOT-23-5L
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,810 in stock

#C55586813

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
5+	₹10.50	₹52.50
50+	₹8.35	₹417.50
150+	₹7.26	₹1,089.00
500+	₹6.46	₹3,230.00
3,000+	₹5.81	₹17,430.00
6,000+	₹5.49	₹32,940.00

Quantity (min 5, multiples of 5)

5 × ₹10.50

₹52.50

excl. GST

₹61.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDBVR

₹52.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

number of channels: 1
Ib - Input Bias Current: 10pA
Operating Temperature: -40℃~+85℃
Input Offset Current(Ios): 10pA
Vos - Input Offset Voltage: 5mV
Output Current: 84mA
Quiescent Current: 40uA
Common Mode Rejection Ratio (CMRR): 62dB
Gain Bandwidth Product: 1.1MHz
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Single Supply: 2.1V~5.6V
Slew Rate: 600V/ms
Noise density(eN): 27nV/√Hz@1KHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g
