TECH PUBLICDatasheet (PDF)

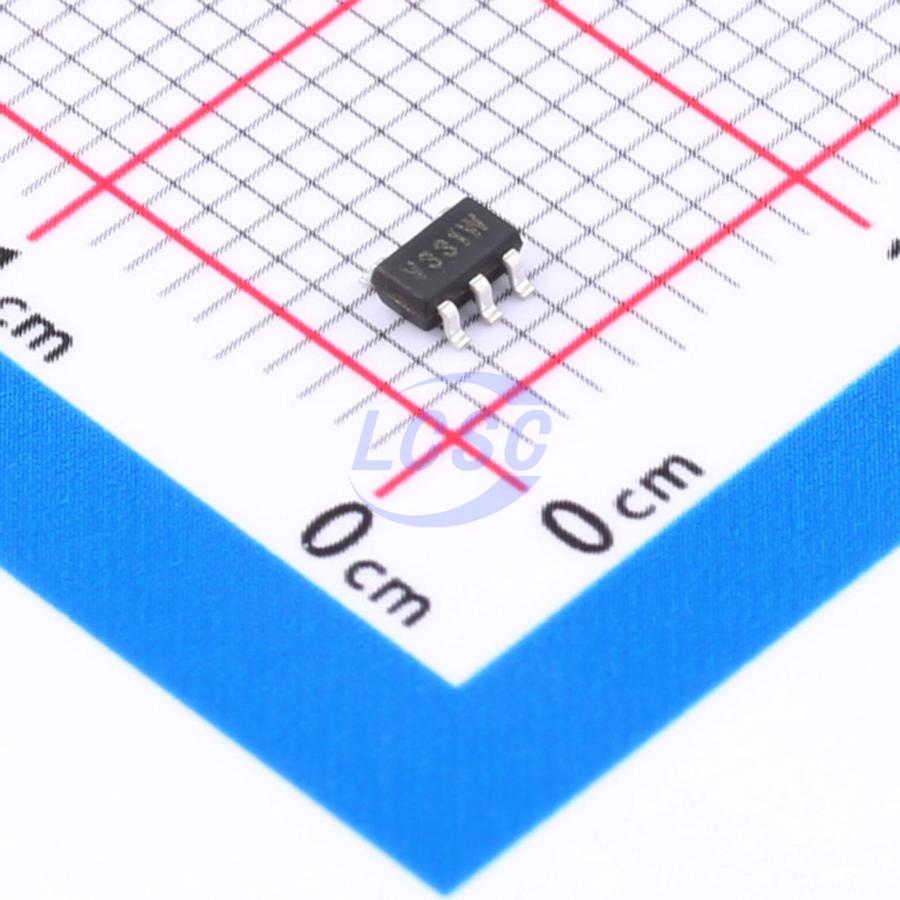

LMV331ILT
Rail-to-Rail Input, Rail-to-Rail Output 500uV 6pA 1 SOT23-5 Linear Comparators
SOT23-5RoHSActive
General Purpose Low Voltage Comparator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV331ILT
- Store part #
- C7419966
- Package / case
- SOT23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C7419966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.54 | ₹112.70 |
| 50+ | ₹17.57 | ₹878.50 |
| 150+ | ₹15.44 | ₹2,316.00 |
| 500+ | ₹12.77 | ₹6,385.00 |
| 3,000+ | ₹11.59 | ₹34,770.00 |
| 6,000+ | ₹10.88 | ₹65,280.00 |
5 × ₹22.54
₹112.70
excl. GST
₹132.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV331ILT
₹112.70 for 5 + GST
Specifications
- Output Type
- Open-drain
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 40uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 33ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Complementary bipolar input stage
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Input Hysteresis Voltage (Vhys)
- 6mV
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 500uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Input Offset Current(Ios)
- 4pA
- Response Time (tr)
- 5ns
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The LMV331/LMV393 series are low-voltage (1.8V to 5.5V) single and dual comparators, which are designed to effectively reduce cost and space at low-voltage levels. These devices offer specifications that meet or exceed the familiar LM331/LM393 devices operating with a lower supply voltage and consuming a far lower supply current.
Applications
- Mobile Communications
- Battery Powered Devices
- Notebooks and PDA's
- General Purpose Low-Voltage Applications
- General Purpose Portable Devices
Key features
- Guaranteed 1.8V and 5.5V performance
- Rail-to-Rail Input and Output
- Low supply current 40μA comparator Typ
- Operating temperature range (-40°C to +85°C)
- Open-Drain Output for Maximum Flexibility
- SOT353, SOT23-5, SOP-8: Available in “Green” Molding
- The LMV331 is available in 5-Pin SOT353/SOT23-5 packages that reduce space on PC boards and portable electronic devices. LMV393 is available in industry standard SOP-8 packages.
