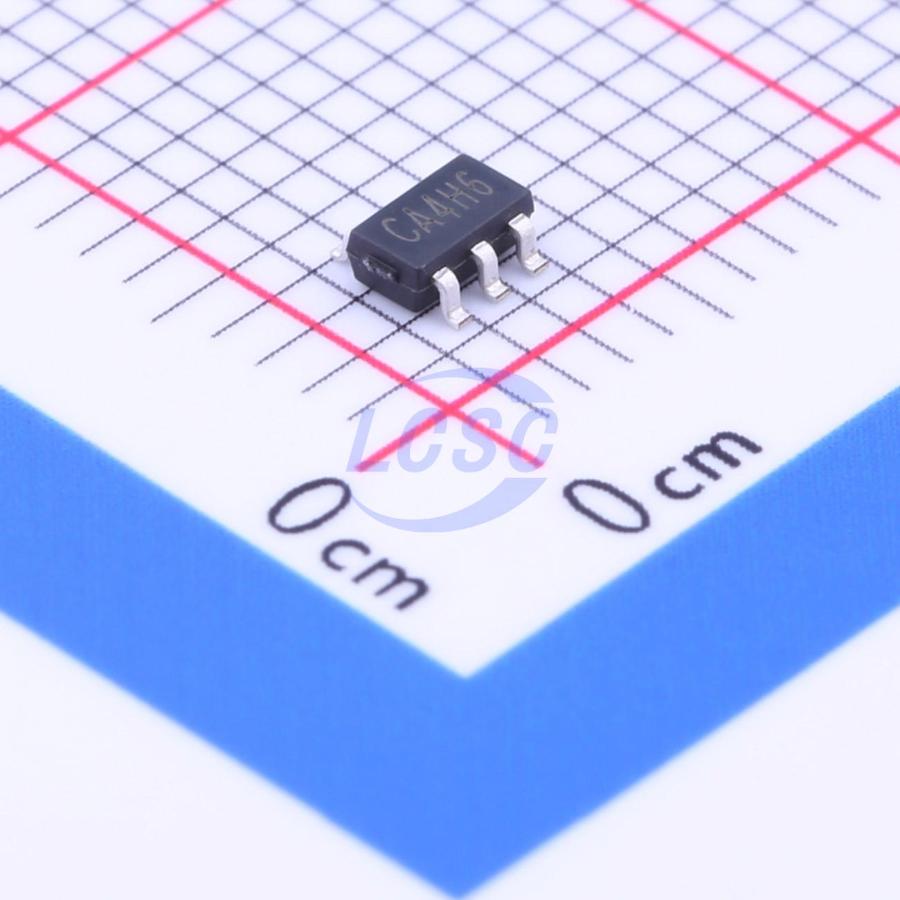

LMV331TP-TR
Rail-to-rail input 600uV 6pA 1 SOT-23-5 Linear Comparators
General Purpose, 1.8V, RRl, Open-Drain Output Comparators
- Manufacturer
- 3PEAK
- Manufacturer part #
- LMV331TP-TR
- Store part #
- C108095
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48,025 in stock
#C108095
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.17 | ₹45.85 |
| 50+ | ₹7.10 | ₹355.00 |
| 150+ | ₹6.05 | ₹907.50 |
| 500+ | ₹5.27 | ₹2,635.00 |
| 3,000+ | ₹4.65 | ₹13,950.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
5 × ₹9.17
₹45.85
excl. GST
₹54.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV331TP-TR
₹45.85 for 5 + GST
Specifications
- Output Type
- Open-drain
- Rail to Rail
- Rail-to-rail input
- Quiescent Current
- 40uA
- Propagation Delay Time
- 120ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;ESD protection
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Input Hysteresis Voltage (Vhys)
- 6mV
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 600uV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.5uV/℃
- Input Offset Current(Ios)
- 4pA
- Response Time (tr)
- 5ns
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The LMV331-393 are cost-effective solutions for applications where low-voltage operation, low power, space saving, and price are primary specifications in circuit design for portable consumer products. The LMV331TP is the single-comparator, the LMV393TP is the dual, and both are open-drain output comparators for maximum flexibility. The chips incorporate proprietary and patented design techniques to achieve the combination of high-speed (120ns high-to-low propagation delay) and low power consuming (40μA quiescent current per comparator). These comparators are optimized for low power 1.8V single-supply applications with greater than rail-to-rail input operation, and also operate with ±0.9V to ±2.75V dual supplies. The input common-mode voltage range extends 200mV below ground and 200mV above supply, allowing both ground and supply sensing. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The LMV331 single comparator is available in tiny SC70 package for space-conservative designs. All chips are specified for the temperature range of -40°C to +85°C.
Applications
- Peak and Zero-crossing Detectors
- Threshold Detectors/Discriminators
- Sensing at Ground or Supply Line
- Logic Level Shifting or Translation
- Window Comparators
- IR Receivers
- Clock and Data Signal Restoration
- Telecom, Portable Communications Portable and Battery Powered Systems
Key features
- Down to 1.8V Supply Voltage: 1.8V to 5.5V
- Low Supply Current: 40μA per Channel Typ
- High-to-Low Propagation Delay: 120 ns Typ
- Internal Hysteresis Ensures Clean Switching
- Offset Voltage: ±3.5mV Maximum
- Input Bias Current: 6 pA Typical
- Input Common-Mode Range Extends 200mV
- No Phase Reversal for Overdriven Inputs
- Open-Drain Output for Maximum Flexibility
- Green, Space-Saving SC70 Package Available
