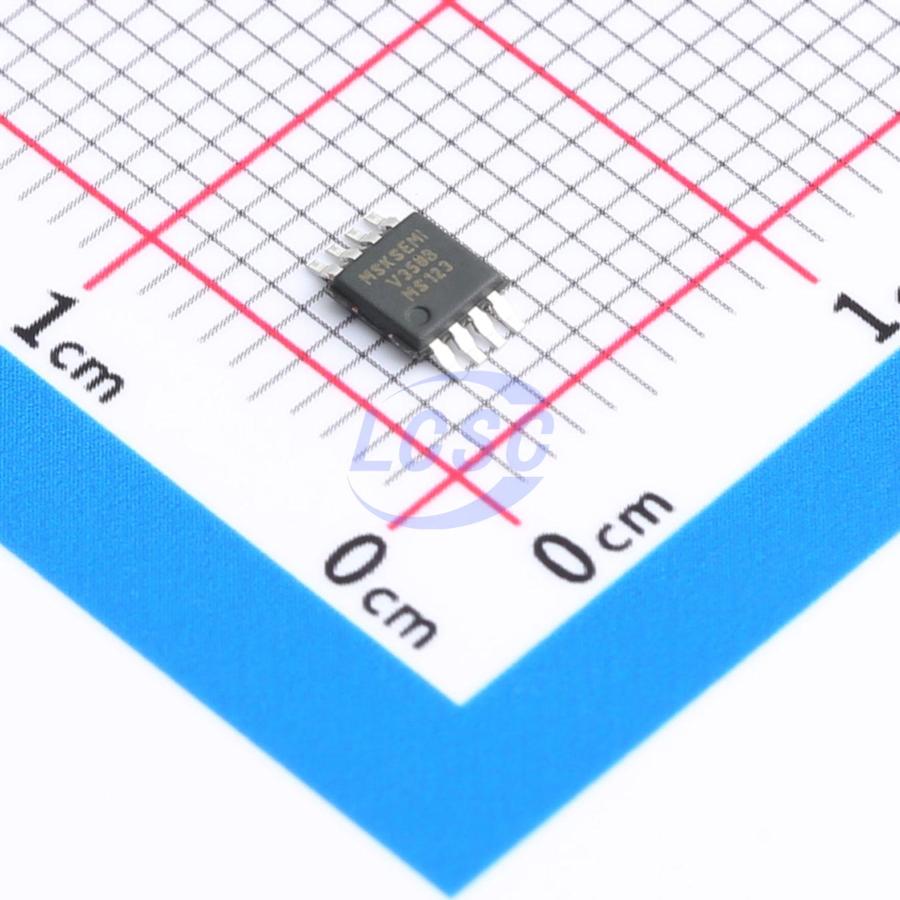

MSKSEMI

LMV358B-MS

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output MSOP-8

MSOP-8ROHS CompliantActive

Dual CMOS operational amplifier

Manufacturer: MSKSEMI
Manufacturer part #: LMV358B-MS
Store part #: C45367207
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,840 in stock

#C45367207

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.30	₹86.50
50+	₹13.67	₹683.50
150+	₹11.84	₹1,776.00
500+	₹10.46	₹5,230.00
2,500+	₹9.23	₹23,075.00
5,000+	₹8.69	₹43,450.00

Quantity (min 5, multiples of 5)

5 × ₹17.30

₹86.50

excl. GST

₹102.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV358B-MS

₹86.50 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -55℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 650nV/℃
Quiescent Current: 50uA
Gain Bandwidth Product: 1.5MHz
Features: Zero drift / auto-zero;Built-in compensation
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.35V;1.35V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

LMV358-MS/LMV358B-MS is a dual CMOS operational amplifier that employs a proprietary auto-calibration technique to simultaneously deliver ultra-low offset voltage and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers feature high-impedance inputs with a common-mode range that extends 200mV beyond the supply rails, rail-to-rail output swing to within 50mV of the supply rails, and operate from single or dual supplies as low as 2.1V (±1.35V) and as high as 5.5V (±2.75V). These devices are optimized for low-voltage, single-supply operation. The LMV358-MS/LMV358B-MS offers excellent CMRR without the crossover distortion associated with conventional complementary input stages. This design enables superior performance when driving ADCs without degrading differential linearity. The LMV358-MS is available in 8-pin SOP-8 and MSOP-8 packages.
