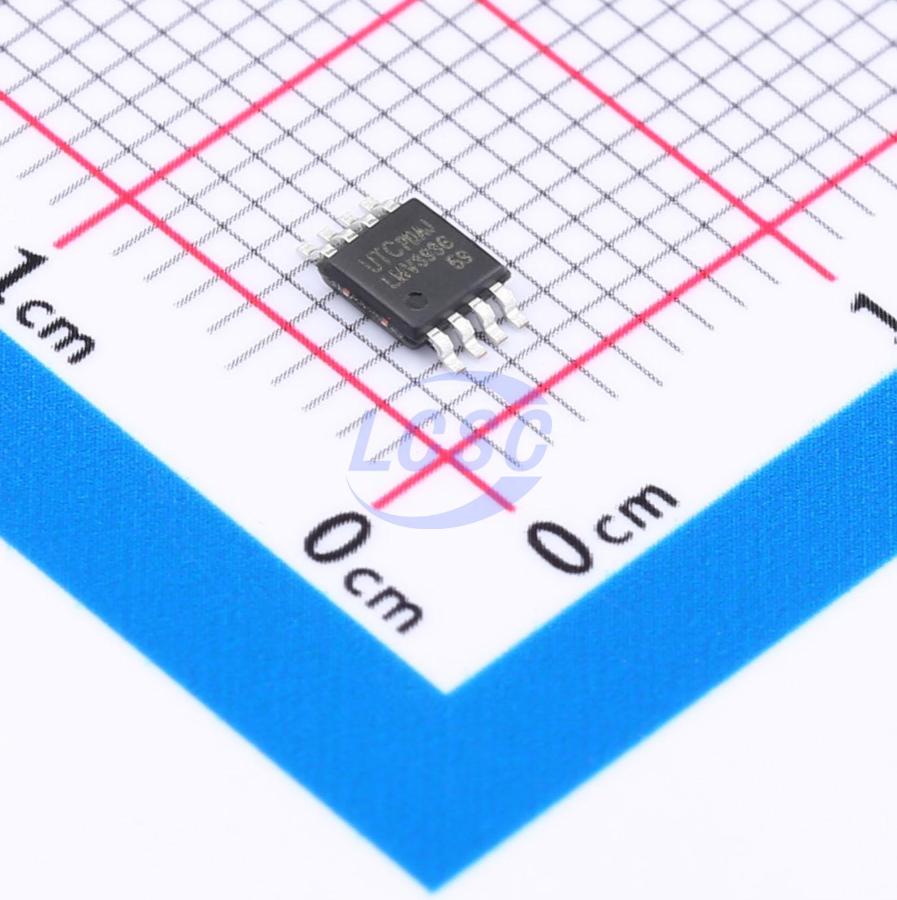

LMV393G-SM1-R
1.7mV 100nA 2 MSOP-8 Linear Comparators
Dual General Purpose, Low Voltage Comparators
- Manufacturer
- UTC
- Manufacturer part #
- LMV393G-SM1-R
- Store part #
- C5157858
- Package / case
- MSOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,216 in stock
#C5157858
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹22.95 | ₹22.95 |
| 10+ | ₹18.22 | ₹182.20 |
| 30+ | ₹16.19 | ₹485.70 |
| 100+ | ₹13.67 | ₹1,367.00 |
| 500+ | ₹12.54 | ₹6,270.00 |
| 1,000+ | ₹11.87 | ₹11,870.00 |
1 × ₹22.95
₹22.95
excl. GST
₹27.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV393G-SM1-R
₹22.95 for 1 + GST
Specifications
- Vos - Input Offset Voltage
- 1.7mV
- Ib - Input Bias Current
- 100nA
- Quiescent Current
- 100uA
- Propagation Delay Time
- 3.4us
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The UTC LMV393 is a low voltage (2.7-5V) version of the dual comparators. Its noise performance has been improved by using bipolar differential input and output stages. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage. The UTC LMV393 is designed for applications in consumer automotive, mobile communications, notebooks and PDA’s, battery powered electronics, general purpose portable device, general purpose low voltage applications.
Applications
- consumer automotive
- mobile communications
- notebooks and PDA’s
- battery powered electronics
- general purpose portable device
- general purpose low voltage applications
Key features
- High Precision Comparator.
- Low Operating Voltage 2.7-5V.
- Low Supply Current 100μA channel (Typical).
- Low Input Bias Current 100nA (Typical).
- Low Input Offset Current 2nA (Typical).
- Input Common Mode Voltage Range Includes Ground.
- Low Output Saturation Voltage 0.2V.
