TECH PUBLIC

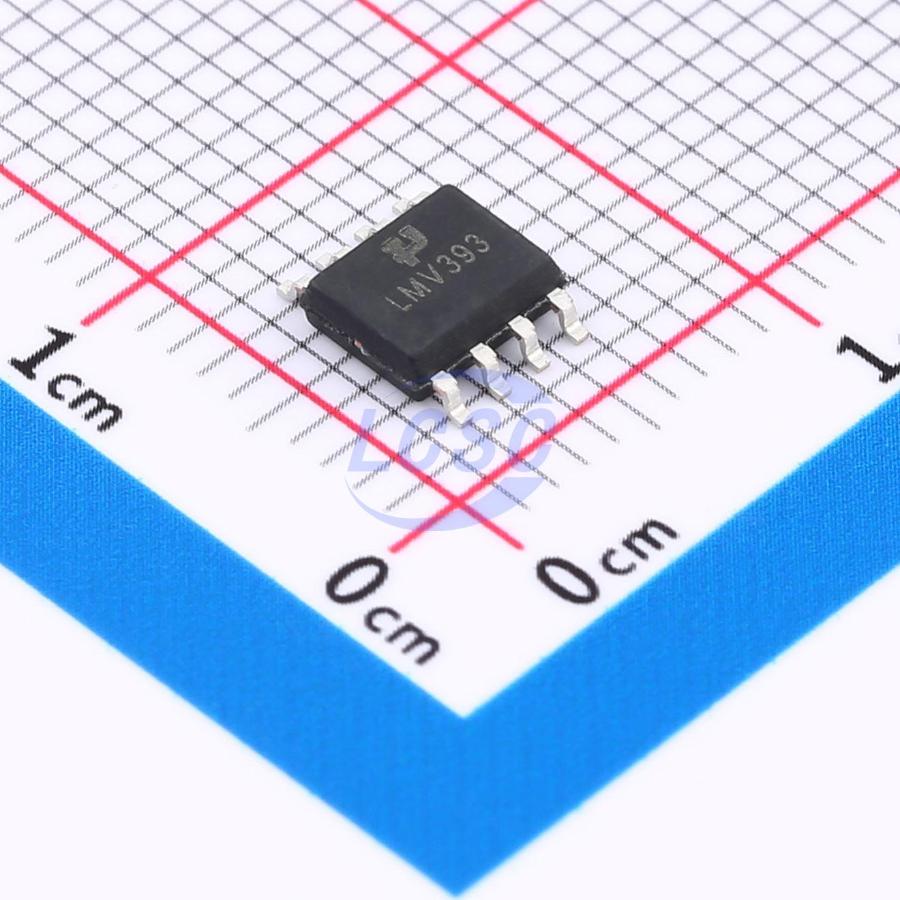

LMV393IDR-G

Rail-to-Rail Input, Rail-to-Rail Output 800uV 2pA 2 SOP-8 Linear Comparators

SOP-8RoHSActive

General-Purpose Low-Voltage Open-Drain Output Comparator

Manufacturer: TECH PUBLIC
Manufacturer part #: LMV393IDR-G
Store part #: C41431782
Package / case: SOP-8
Category: Linear Comparators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,415 in stock

#C41431782

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹18.50	₹92.50
50+	₹16.06	₹803.00
150+	₹15.02	₹2,253.00
500+	₹13.71	₹6,855.00
2,500+	₹13.12	₹32,800.00
5,000+	₹12.78	₹63,900.00

Quantity (min 5, multiples of 5)

5 × ₹18.50

₹92.50

excl. GST

₹109.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV393IDR-G

₹92.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Type: Open-drain
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Quiescent Current: 50uA
Output Mode: CMOS
Propagation Delay Time: 460ns
Operating Temperature: -55℃~+125℃
Vos - Input Offset Voltage: 800uV
Ib - Input Bias Current: 2pA
Number of Channels: 2
Input Offset Voltage Drift(Vos TC): 0.8uV/℃
Input Offset Current(Ios): 1pA
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.191 g

Overview

The most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products.

Applications

Alarm and Monitoring Circuits
Hysteresis Comparators
Oscillators
Window Comparators
Industrial Equipment
Test and Measurement

Key features

Guaranteed 1.8V and 5.5V performance
Low Supply Current
Low supply current 50μA/comparator Typ
Open-Drain Output for Maximum Flexibility
RoHS and Halogen free compliance
package: SOP-8
