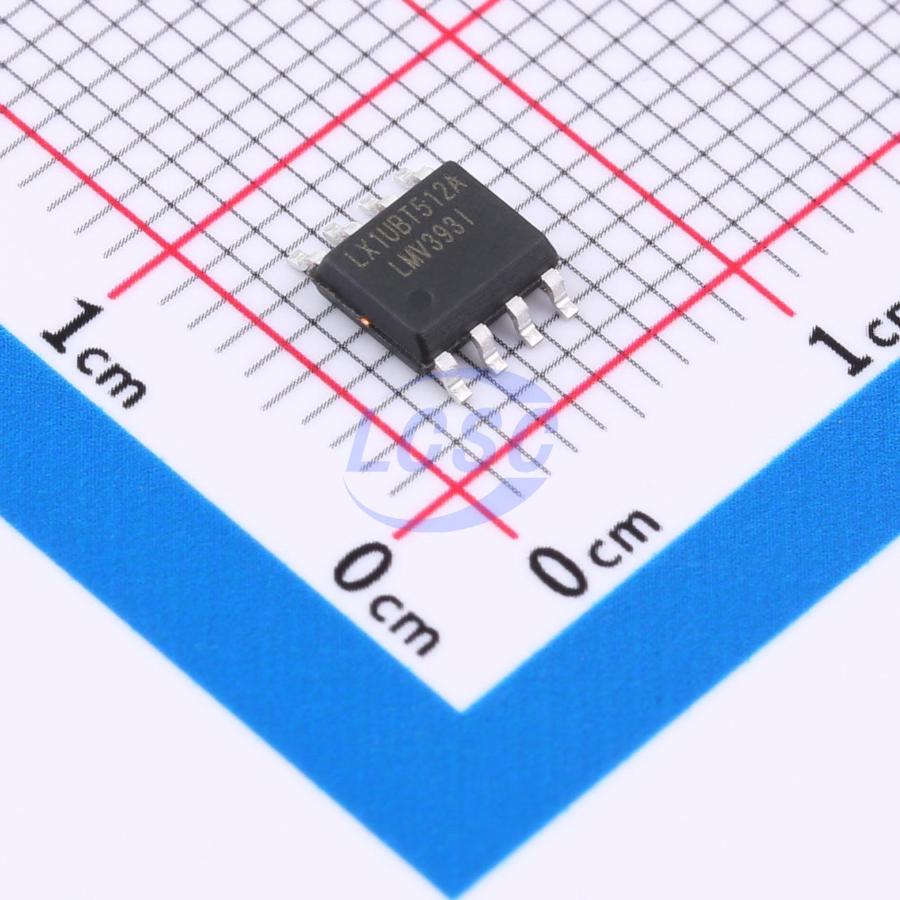

LMV393IDR(LX)
Rail-to-rail input 1mV 5pA 2 SOP-8 Linear Comparators
General-purpose low-voltage rail-to-rail input open-drain output comparator
- Manufacturer
- lingxingic
- Manufacturer part #
- LMV393IDR(LX)
- Store part #
- C48533484
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C48533484
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.87 | ₹64.35 |
| 50+ | ₹10.17 | ₹508.50 |
| 150+ | ₹8.82 | ₹1,323.00 |
| 500+ | ₹7.82 | ₹3,910.00 |
| 2,500+ | ₹7.01 | ₹17,525.00 |
| 4,000+ | ₹6.60 | ₹26,400.00 |
5 × ₹12.87
₹64.35
excl. GST
₹75.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LMV393IDR(LX)
₹64.35 for 5 + GST
Specifications
- Features
- Complementary bipolar input stage
- Output Type
- Open-drain
- Rail to Rail
- Rail-to-rail input
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 60uA
- Ib - Input Bias Current
- 5pA
- Number of Channels
- 2
- Propagation Delay Time
- 300ns;750ns
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
LMV331/LMV393 is a CMOS general-purpose comparator available in single-channel (LMV331) and dual-channel (LMV393) configurations. It features rail-to-rail inputs and open-drain output, with a propagation delay of 300ns (at 100mV overdrive) and a quiescent current of 60μA per comparator. Ideal for portable consumer electronics applications requiring low-voltage operation, low power consumption, and space savings.
Key features
- Operating voltage: 2.5~5.5V
- Single-channel quiescent current: 60μA
- Rail-to-rail input
- Low output saturation voltage: 40mV
- Open-drain output
- Package: LMV331: SOT23-5; LMV393: SOP8
