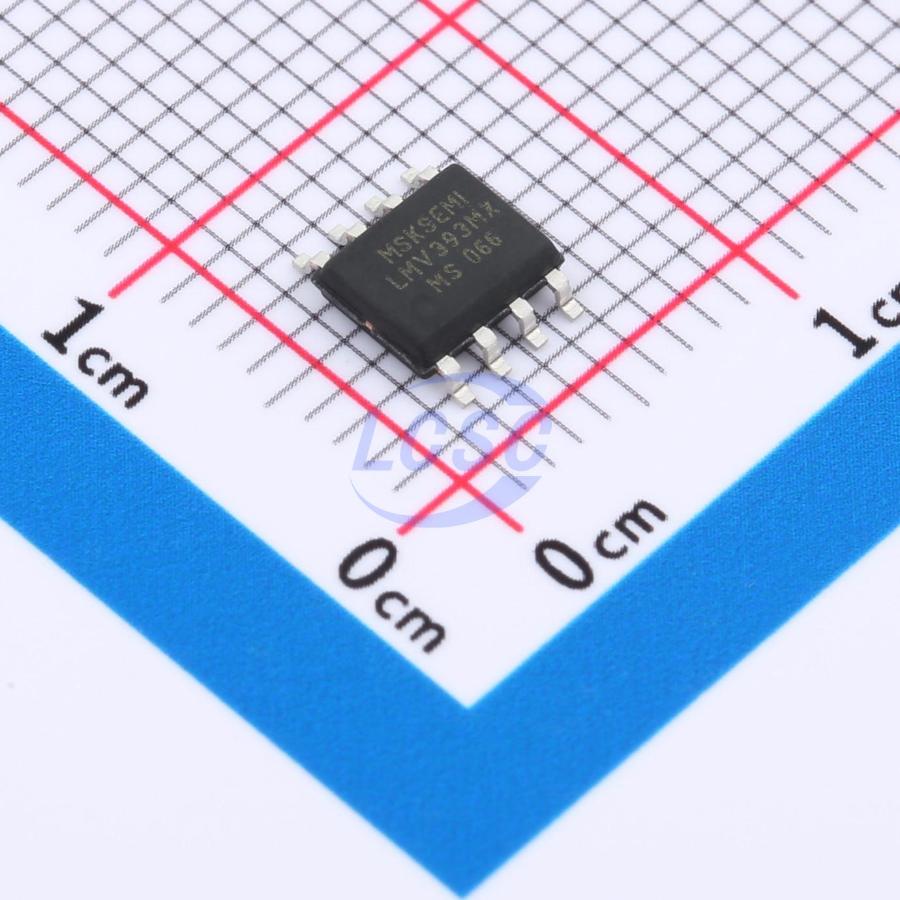

LMV393MX(MS)
800uV 2pA 2 SOP-8 Linear Comparators
Single, dual, and quad open-drain output comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV393MX(MS)
- Store part #
- C22399590
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C22399590
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹12.99 | ₹1,948.50 |
| 500+ | ₹10.85 | ₹5,425.00 |
| 2,500+ | ₹9.88 | ₹24,700.00 |
| 5,000+ | ₹9.31 | ₹46,550.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV393MX(MS)
₹93.75 for 5 + GST
Specifications
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Output Type
- Open-drain
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Quiescent Current
- 50uA
- Propagation Delay Time
- 460ns
- Number of Channels
- 2
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The LMV393MX(MS) is the single and dual comparator version, the LMV339MX(MS) is quad comparator version, and both are open-drain output comparators for maximum flexibility. It can operate from 2.1V to 5.5V and have low power consuming 50μA (TYP) per channel at output low. The LMV393MX(MS), LMV339MX(MS) are the most cost-effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The LMV393MX(MS), LMV339MX(MS) are available in Green SOP-8, SOP-14 packages. It operates over an ambient temperature range of -40°C to +85°C. The LMV393MX(MS), LMV339MX(MS) family of comparators can operate up to 5.5V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to its low power and high speed. The open-drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment
- Test and Measurement
Key features
- Supply Range: +2.1V to +5.5V
- Low Supply Current
- 50μA (TYP) per channel at VS = 5V and output low
- Input Common-Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 100mV Typical
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP-8, SOP-14
