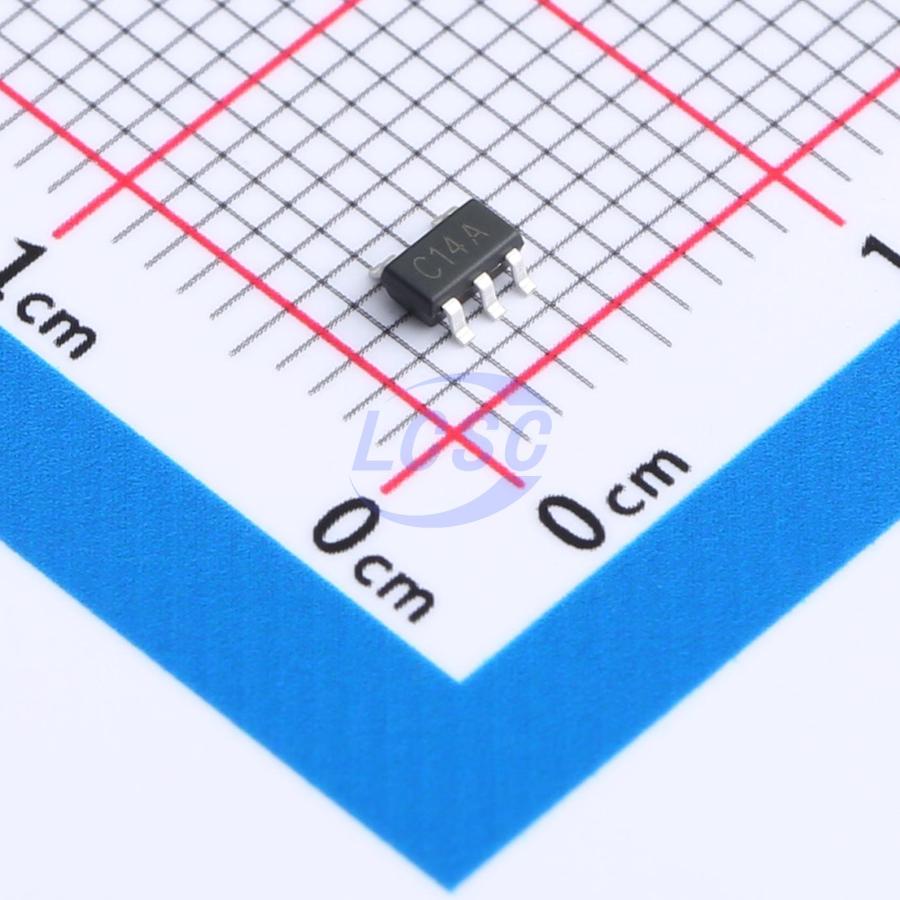

LMV7219M5/TR
Rail-to-rail output 1mV 450nA 1 SOT-23-5 Linear Comparators
7ns 2.7V to 5V Comparator with Rail-to-Rail Output
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV7219M5/TR
- Store part #
- C20613263
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,170 in stock
#C20613263
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.95 | ₹244.75 |
| 50+ | ₹37.85 | ₹1,892.50 |
| 150+ | ₹33.29 | ₹4,993.50 |
| 500+ | ₹28.72 | ₹14,360.00 |
| 3,000+ | ₹26.12 | ₹78,360.00 |
| 6,000+ | ₹24.37 | ₹1,46,220.00 |
5 × ₹48.95
₹244.75
excl. GST
₹288.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV7219M5/TR
₹244.75 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-rail output
- Quiescent Current
- 1.1mA
- Propagation Delay Time
- 7ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis
- Input Hysteresis Voltage (Vhys)
- 7mV
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 450nA
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50nA
- Response Time (tr)
- 1.3ns
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7 V to 5 V with push-pull railto-rail output. This device achieves a 7-ns propagation delay while consuming only 1.1 mA of supply current at 5 V. The LMV7219 inputs have a common mode voltage range that extends 200 mV below ground, allowing ground sensing. The internal hysteresis ensures clean output transitions even with slow-moving inputs signals. The LMV7219 is available in the SC-70 and SOT-23 packages, which are ideal for systems where small size and low power are critical.
Applications
- Portable and Battery-powered Systems
- Scanners
- Set Top Boxes
- High Speed Differential Line Receiver
- Window Comparators
- Zero-crossing Detectors
- High-speed Sampling Circuits
Key features
- Propagation Delay 7 ns
- Low Supply Current 1.1 mA
- Input Common Mode Voltage Range Extends 200 mV Below Ground
- Ideal for 2.7-V and 5-V Single Supply Applications
- Internal Hysteresis Ensures Clean Switching
- Fast Rise and Fall Time 1.3 ns
- Available in Space-saving Packages: SC-70 and SOT-23
- Supports 105°C PCB Temperature
