HGSEMIDatasheet (PDF)

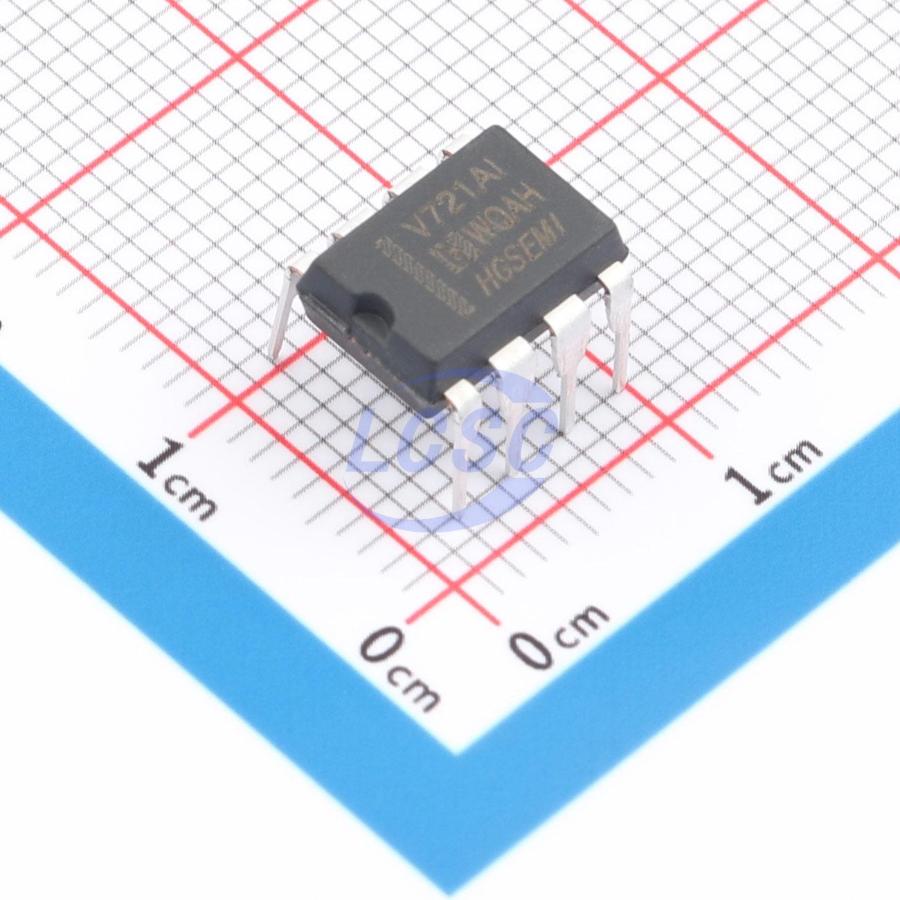

LMV721AIN
140mA 500uV 8.5V/us 70dB 10pA 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV721AIN
- Store part #
- C50314585
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,845 in stock
#C50314585
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.40 | ₹102.00 |
| 50+ | ₹16.02 | ₹801.00 |
| 150+ | ₹14.14 | ₹2,121.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 2,000+ | ₹10.76 | ₹21,520.00 |
| 4,000+ | ₹10.13 | ₹40,520.00 |
5 × ₹20.40
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LMV721AIN
₹102.00 for 5 + GST
Specifications
- Output Current
- 140mA
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 8.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.315 g
Overview
This series offers low-voltage operation with rail-to-rail input and output, excellent speed-power ratio, outstanding bandwidth (10MHz), and slew rate (8.5V/μs). The op-amps are unity-gain stable with ultra-low input bias current. Offset voltage is low, guaranteed not to exceed 0.5mV at 25°C, Vs=5V, VCM=Vs/2. These op-amps operate from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. The devices are ideal for sensor interfaces, active filters, and portable applications.
Applications
- Sensors
- Active filters
- Test equipment
- Driving A/D converters
- Photodiode amplification
Key features
- High gain bandwidth: 10MHz
- Excellent slew rate: 8.5V/μs
- Rail-to-rail input and output
- Low offset voltage: ±0.5mV max
- Input voltage range: -0.2V to +5.7V (at Vs=5.5V)
- Supply voltage range: +2.1V to +5.5V
- Operating temperature range: -40°C to +125°C
- Compact packages: SOT-23-5, DIP-8, SOP-8, SOP-14, TSSOP-14, MSOP-8, DFN-8 2×2
