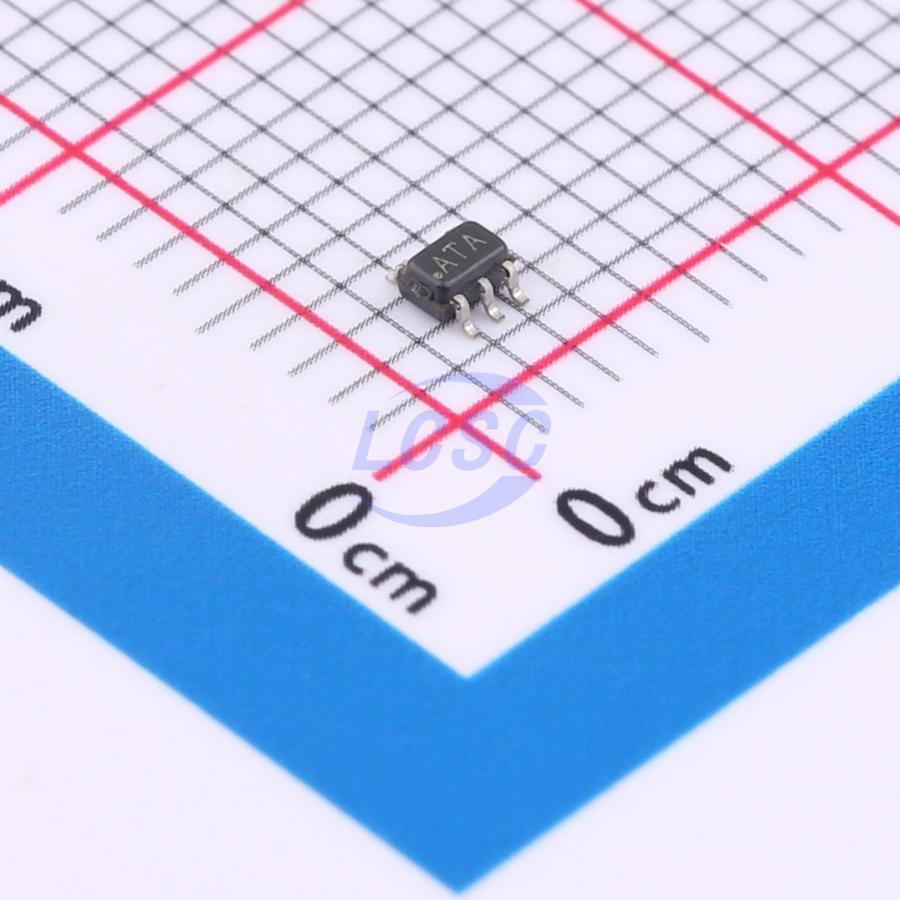

LMV841QMG/NOPB
33mA 1 50uV 2.5V/us 0.3pA 112dB 1mA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-5ROHS3 CompliantActive
CMOS input, RRIO, low-power, wide supply voltage range operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMV841QMG/NOPB
- Store part #
- C2057428
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C2057428
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹334.23 | ₹334.23 |
| 10+ | ₹282.79 | ₹2,827.90 |
| 30+ | ₹250.67 | ₹7,520.10 |
| 100+ | ₹217.69 | ₹21,769.00 |
| 500+ | ₹202.71 | ₹1,01,355.00 |
| 1,000+ | ₹196.41 | ₹1,96,410.00 |
1 × ₹334.23
₹334.23
excl. GST
₹394.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LMV841QMG/NOPB
₹334.23 for 1 + GST
Specifications
- Output Current
- 33mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 2.5V/us
- Input Offset Current(Ios)
- 0.04pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.3pA
- Common Mode Rejection Ratio(CMRR)
- 112dB
- Input Offset Voltage Drift(Vos TC)
- 250nV/℃
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 4.5MHz
- Input Voltage Noise Density
- 20nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
