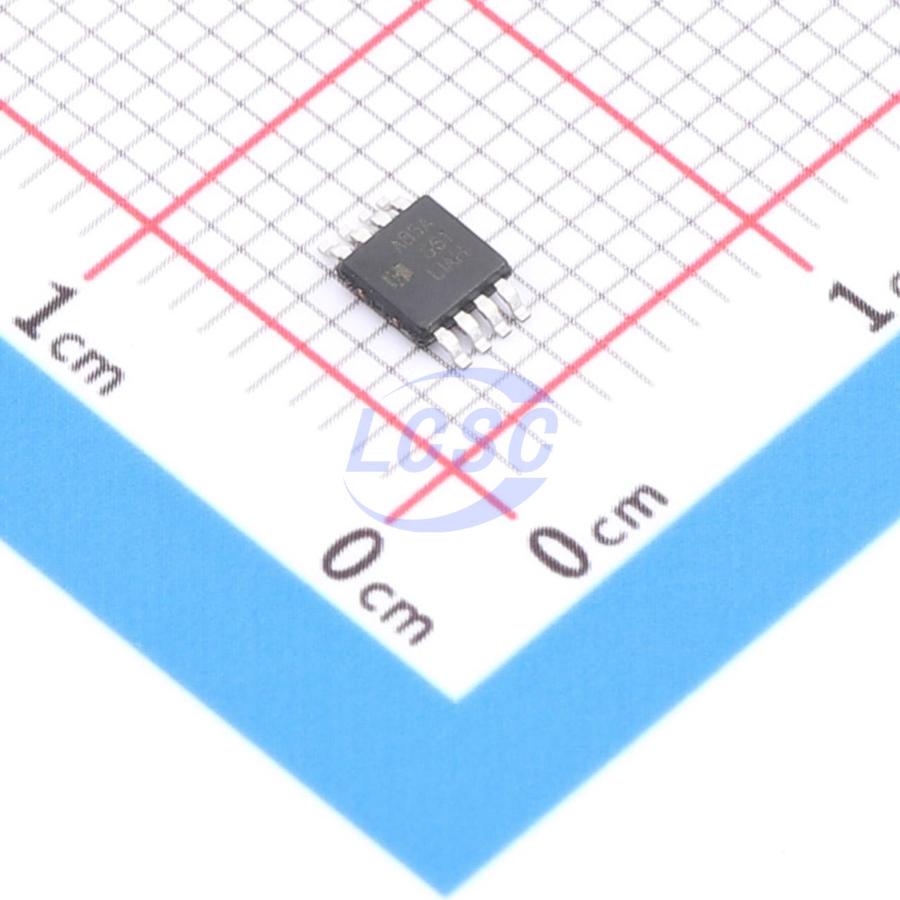

LMV852MM/TR-HG
1pA 11MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Audio Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV852MM/TR-HG
- Store part #
- C54814877
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,999 in stock
#C54814877
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.82 | ₹74.82 |
| 10+ | ₹60.54 | ₹605.40 |
| 30+ | ₹53.50 | ₹1,605.00 |
| 100+ | ₹46.48 | ₹4,648.00 |
| 500+ | ₹42.20 | ₹21,100.00 |
| 1,000+ | ₹40.07 | ₹40,070.00 |
1 × ₹74.82
₹74.82
excl. GST
₹88.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV852MM/TR-HG
₹74.82 for 1 + GST
Specifications
- Ib - Input Bias Current
- 1pA
- number of channels
- 2
- Operating Temperature
- -40℃~+125℃
- Input Offset Current(Ios)
- 1pA
- Quiescent Current (Iq)
- 750uA
- Vos - Input Offset Voltage
- 350uV
- Output Current
- 75mA
- Common Mode Rejection Ratio (CMRR)
- 96dB
- Gain Bandwidth Product
- 11MHz
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Single Supply
- 1.8V~5.5V
- Slew Rate
- 11V/us
- Noise density(eN)
- 8nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.259 g
