NATLINEARDatasheet (PDF)

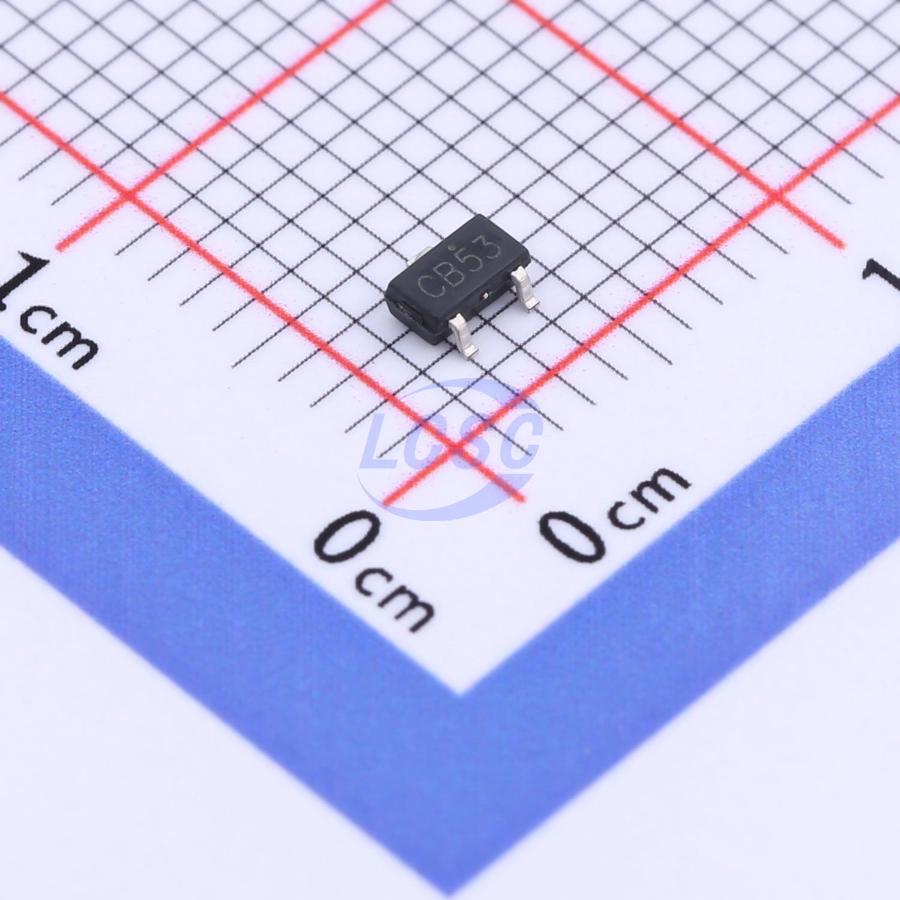

LN61CC3602MR-G
Supervisor Open Drain SOT-23-3L
SOT-23-3LROHS CompliantActive
High-precision, low-power, small-package voltage detection chip
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CC3602MR-G
- Store part #
- C236390
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C236390
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.91 | ₹491.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 3,000+ | ₹3.80 | ₹11,400.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CC3602MR-G
₹61.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 700mV~7V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The LN61C series are high-precision, low-power, compact voltage detector ICs developed using CMOS technology. The detection voltage maintains extremely high accuracy with minimal temperature drift. Customers can choose between CMOS output and Open Drain output.
Applications
- Microprocessor reset circuit
- Memory battery backup circuit power-on reset circuit
- Supply failure detection
- System battery life and charge voltage monitoring. Window comparator
- Waveform sharpening circuit
Key features
- High accuracy: ±2%
- Low power consumption: 2.0μA (VIN = 1.5V)
- Detection voltage range: 1.0V ~ 6.0V, 100mV steps
- Operating voltage range: 0.7V ~ 7.0V
- Detection voltage temperature characteristics: ±100ppm (typ.)
- Output configuration: N-channel open drain or CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN61CN3502MR-G#C141416NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 2,960 | ₹8.86 · 2,960 in stock | View |
