NATLINEARDatasheet (PDF)

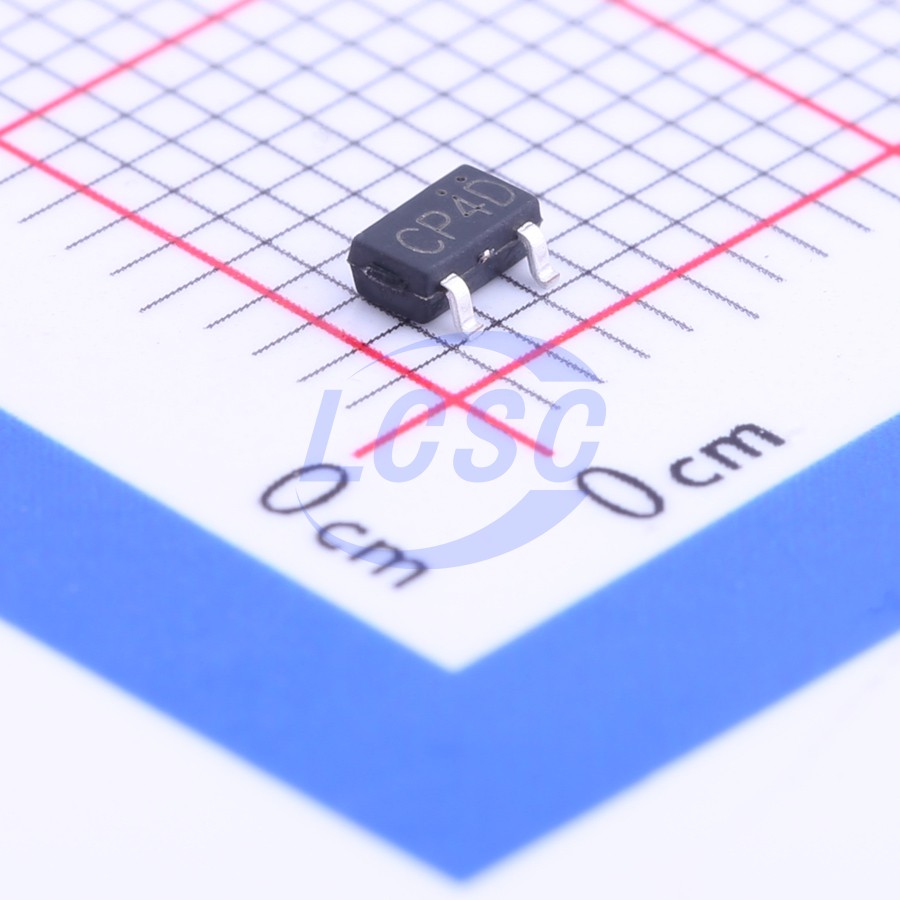

LN61CN3502MR-G
Supervisor Open Drain 1 Channel SOT-23
SOT-23ROHS CompliantActive
High-precision, low-power, small-package voltage detection chip
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN61CN3502MR-G
- Store part #
- C141416
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C141416
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.37 | ₹73.70 |
| 100+ | ₹6.08 | ₹608.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.58 | ₹27,480.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹7.37
₹73.70
excl. GST
₹86.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN61CN3502MR-G
₹73.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 700mV~8V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LN61C series are high-precision, low-power, compact voltage detector ICs developed using CMOS technology. The detection voltage maintains extremely high accuracy with minimal temperature drift. Customers can choose between CMOS output and Open Drain output.
Applications
- Microprocessor reset circuits
- Memory battery backup circuits
- Power-on reset circuits
- Supply failure detection
- System battery life and charge voltage monitoring. Window comparator
- Waveform sharpening circuits
Key features
- High accuracy: ±2%
- Low power consumption: 2.0μA (Vin = 1.5V)
- Detection voltage range: 1.0V ~ 6.0V, 100mV steps
- Operating voltage range: 0.7V ~ 8.0V
- Detection voltage temperature characteristics: ±100ppm (typ.)
- Output configuration: N-channel open drain or CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN61CC3602MR-G#C236390NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 1,190 | ₹5.14 · 1,190 in stock | View |
