NATLINEARDatasheet (PDF)

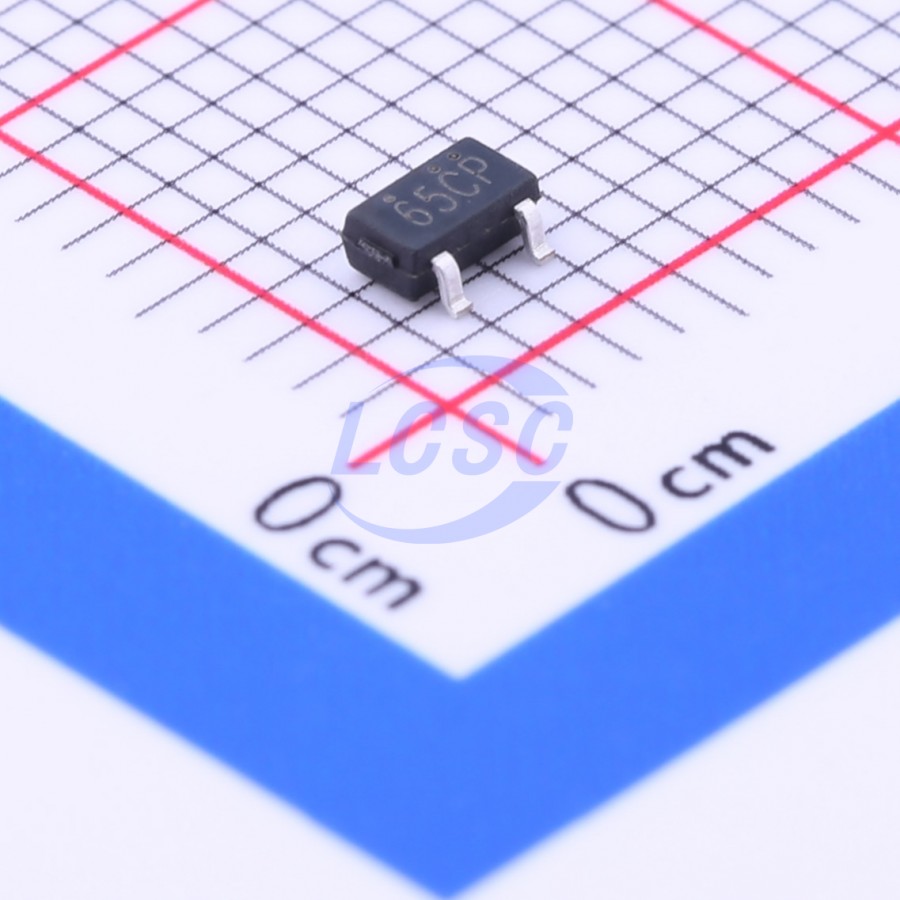

LN6206P132MR-G
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS CompliantActive
Low Power Low Dropout Middle Current Voltage Regulators
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN6206P132MR-G
- Store part #
- C236394
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C236394
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹6.32 | ₹126.40 |
| 200+ | ₹5.21 | ₹1,042.00 |
| 600+ | ₹4.59 | ₹2,754.00 |
| 3,000+ | ₹4.22 | ₹12,660.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
| 21,000+ | ₹3.72 | ₹78,120.00 |
20 × ₹6.32
₹126.40
excl. GST
₹149.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN6206P132MR-G
₹126.40 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
The LN6206 series are precise, low power consumption, high voltage; positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The LN6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's feedback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 100mV increments within a range of 1.2V to 5.0V. SOT-89-3, SOT-23-3 and SOT23-3B packages are available.
Applications
- Battery powered equipment
- Reference voltage sources
- Cameras, video cameras
- Mobile phones
- Communication tools
Key features
- Output voltage range: 1.2V to 5.0V (selectable in 100mV steps)
- Highly optional accurate: ± 1% or ± 2%
- Dropout voltage: 160mV @ 50mA (3.0V type)
- Low power consumption: 2μA (TYP.)
- Maximum output current: 250mA (Vin ≥ Vout + 1V)
- Internal protector current limiter and short protector
- Small packages: SOT-89-3, SOT-23-3, SOT23-3B and other required
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN6206P332MR-G#C141407NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 6,240 | ₹5.50 · 6,240 in stock | View |
 | LN6216P332VR-G#C3008038NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 3,000 | ₹1.57 · 3,000 in stock | View |
 | LN1132P332MR-G#C193852NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 1,000 | ₹5.42 · 1,000 in stock | View |
 | LN1131P332MR-G#C236077NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 170 | ₹6.63 · 170 in stock | View |
 | LN1121P332MR-G#C183880NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 10 | ₹8.97 · 10 in stock | View |
