NATLINEARDatasheet (PDF)

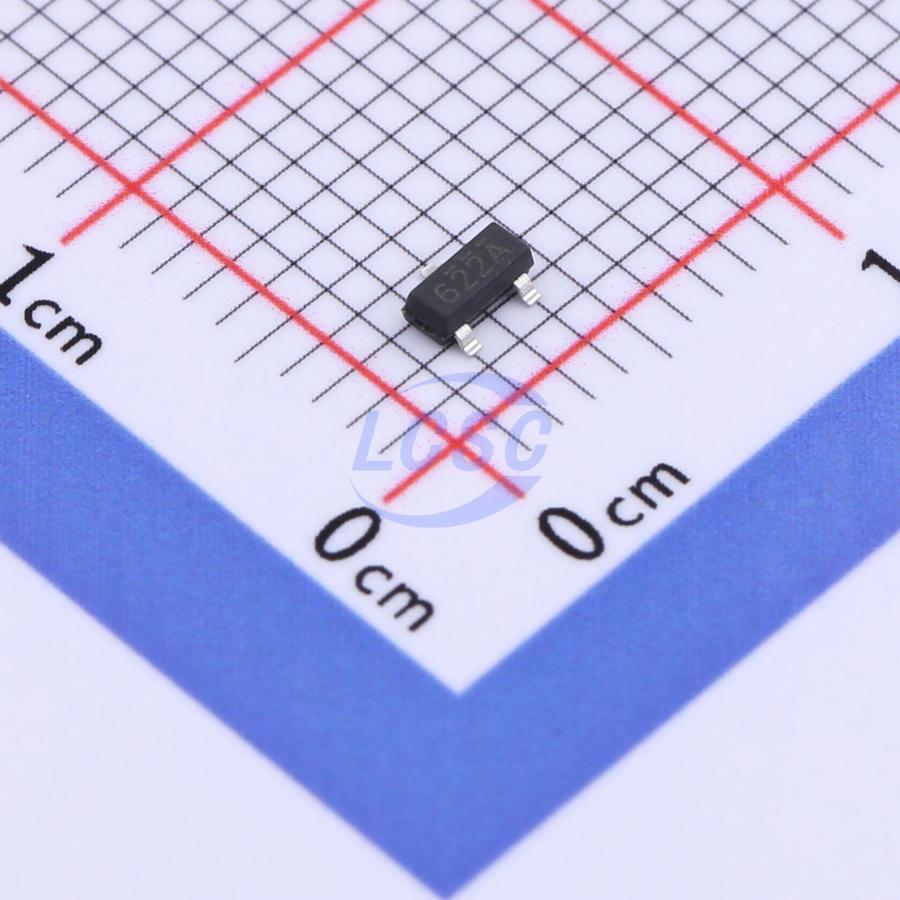

LN6216P332VR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23ROHS CompliantActive
Low-power, low-dropout, medium-output current CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN6216P332VR-G
- Store part #
- C3008038
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C3008038
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.57 | ₹31.40 |
| 200+ | ₹1.53 | ₹306.00 |
| 600+ | ₹1.52 | ₹912.00 |
| 3,000+ | ₹1.42 | ₹4,260.00 |
20 × ₹1.57
₹31.40
excl. GST
₹37.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN6216P332VR-G
₹31.40 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 250mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
The LN6216 series are low-dropout, high-accuracy output voltage, low quiescent current positive-voltage regulators developed using CMOS technology. Due to the built-in low on-resistance transistor, the dropout voltage is low, enabling large output current capability. To prevent load current from exceeding the output transistor's current capacity, overcurrent protection and short-circuit protection circuits are integrated. The use of compact packages such as SOT89-3L, SOT23-3L, and SOT23-3B enables high-density mounting.
Applications
- Battery-powered devices
- Voltage reference sources
- Cameras, video cameras
- Mobile phones
- Communication equipment
Key features
- Selectable output voltage: adjustable from 1.2V to 5.0V in 0.1V increments
- High output voltage accuracy: ±2.5%
- Low quiescent current: 2μA (TYP.)
- Low dropout voltage: 160mV typical (3.0V output product, Iout = 50mA)
- High output current: up to 250mA (VIN ≥ VOUT + 1V)
- Built-in protection: overcurrent and short-circuit protection circuits
- Compact packages: SOT-89-3L, SOT-23-3L, SOT-23-3B, and custom packages per customer request
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN6206P332MR-G#C141407NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 6,240 | ₹5.50 · 6,240 in stock | View |
 | LN6206P132MR-G#C236394NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 2,880 | ₹6.32 · 2,880 in stock | View |
 | LN1132P332MR-G#C193852NATLINEAR · SOT-23 | NATLINEAR | SOT-23 | 1,000 | ₹5.42 · 1,000 in stock | View |
 | LN1131P332MR-G#C236077NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 170 | ₹6.63 · 170 in stock | View |
 | LN1121P332MR-G#C183880NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 10 | ₹8.97 · 10 in stock | View |
